ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Main Frame & Front Suspension Group (273FRM0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

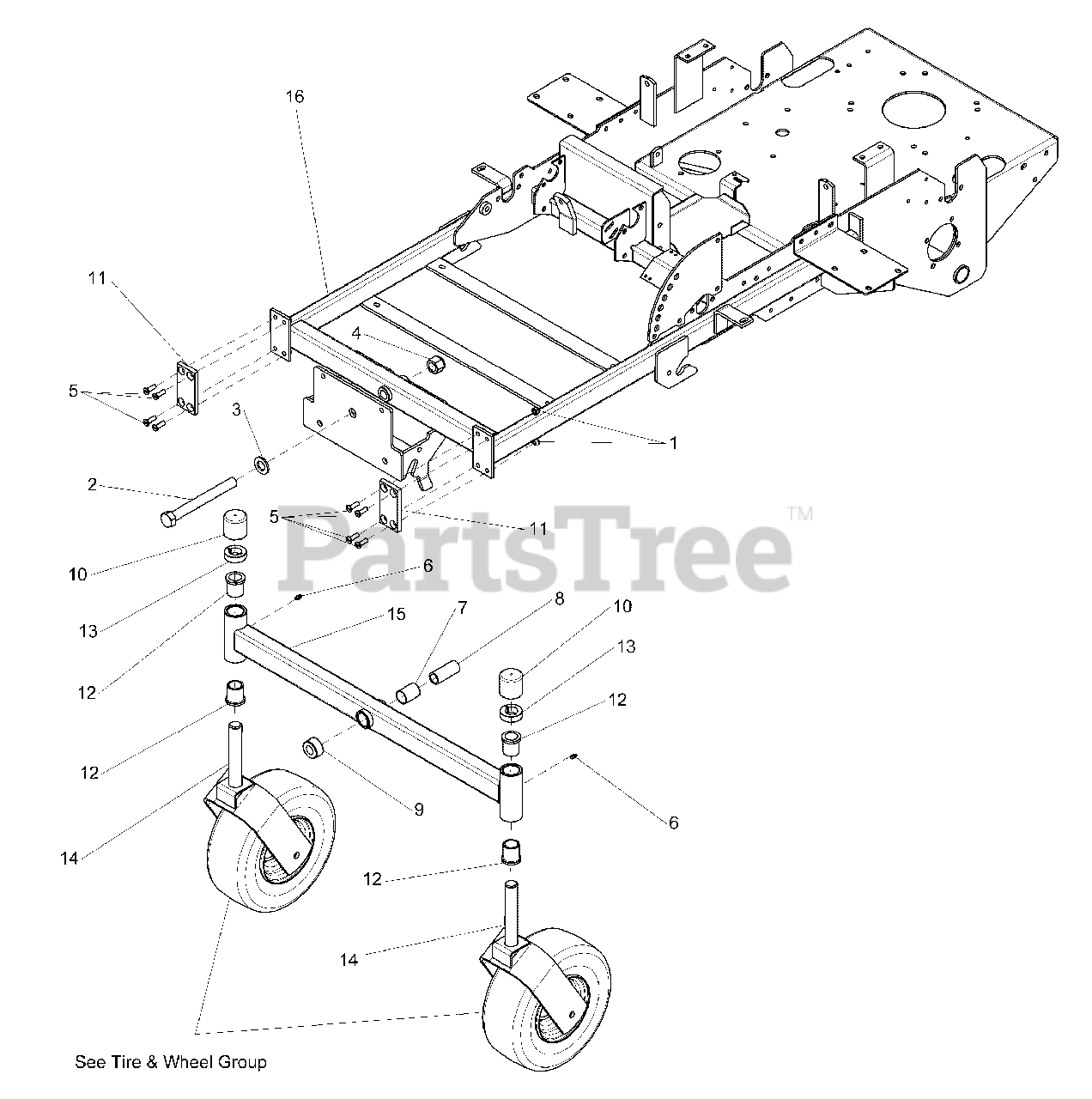

Main Frame & Front Suspension Group (273FRM0) Parts Diagram

  • Title

1

Simplicity 5025057SM

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5025265X56SM

BOLT, GD5, YZ, 3/4-16 X 7"

$44.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025160SM

WASHER, 3/4" SAE

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 5025421YP

SCREW 5/16-18 X 1 FLAT HD SC

$

$

Not available

6

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STR

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 5022852SM

PIVOT BEARING,1.00" X 1.125" OD X 1.50"

$34.99

$

In Stock, only 4 left!

0

8

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$37.99

$

Usually ships in 2-12 days

0

9

Simplicity 5400756SM

SPACER, .75 X 1.50 X .785

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023214SM

CAP, VINYL 1.687 X 1-1/2

$6.49

$

In Stock, Qty 18

0

11

Simplicity 5045990SM

PLATE, FRICTION REDUCER

$21.99

$

Usually ships in 2-12 days

0

12

Simplicity 5021541SM

BUSHING, FLANGE

$10.99

$

In Stock, Qty 20+

0

13

Simplicity 5020602SM

COLLAR, 1" SPLIT

$23.99

$

In Stock, only 1 left!

0

14

Simplicity 5048775DYP

WELD, CASTER YOKE

$170.99

$

Usually ships in 2-12 days

0

15

Simplicity 5400405DYP

WELD, PIVOTING FRONT END

$207.99

$

Usually ships in 2-12 days

0

16

Simplicity 5400350DYP

WELD, MAINFRAME

$

$

Not available
