ZT 18440 KH (5091000) - Snapper 44" Zero-Turn Mower, 18hp Motion Controls Group - Upper Parts Diagram

44" Zero-Turn Mower, 18hp

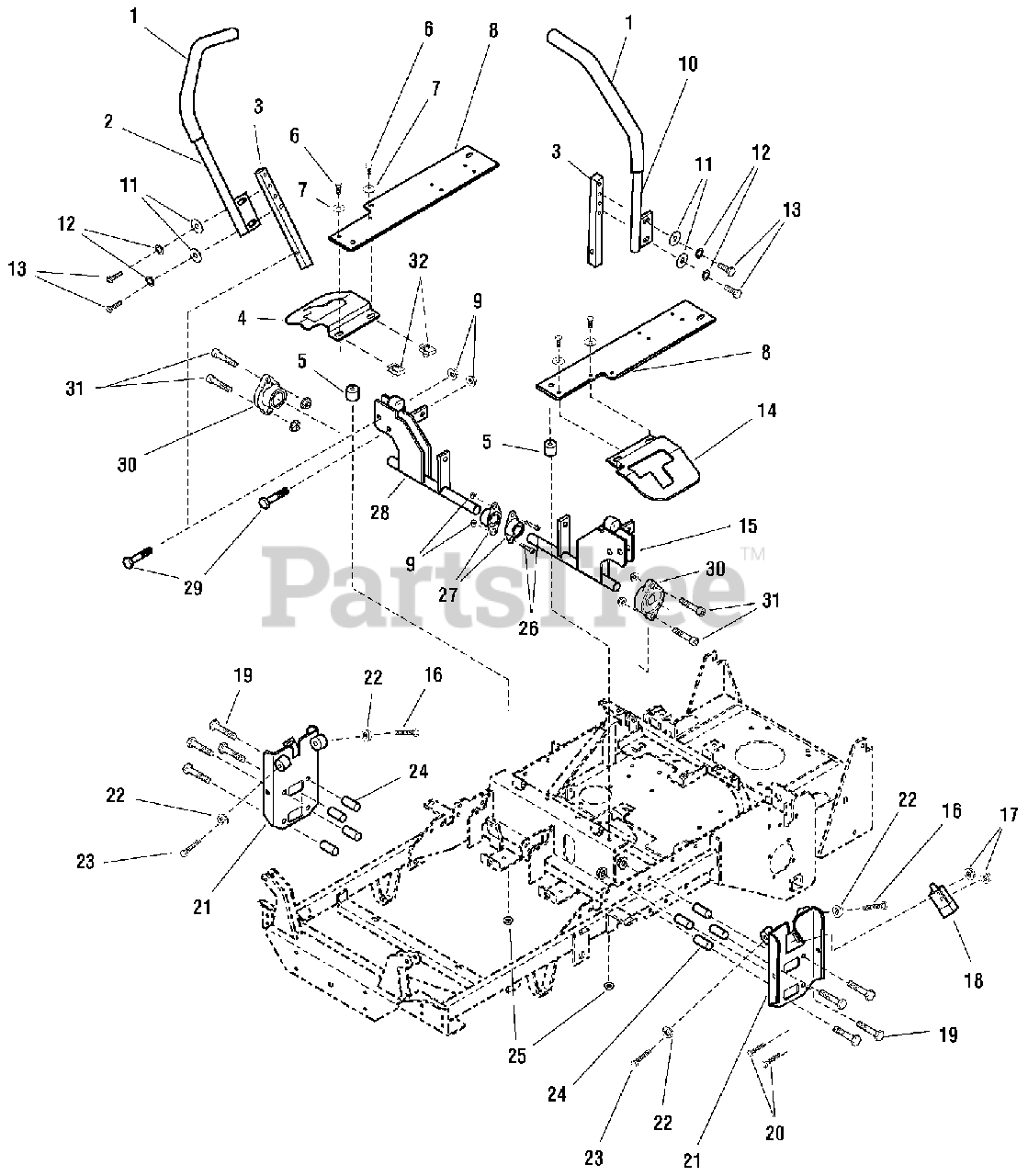

Motion Controls Group - Upper Parts Diagram

  • Title

1

Snapper 5022068

FOAM GRIP
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

2

Snapper 5047056D

MOTION CONTROL LEVER - RH
(Superseded to 5047056A)

$61.99

$

Usually ships in 2-12 days

0

3

Snapper 5047004

CONTROL LEVER BASE
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

4

Snapper 5048905D

NEUTRAL LOCK PLATE COVER, RH
(Superseded to 5048905DYP)

$15.99

$

Usually ships in 2-12 days

0

5

Snapper 5047125

SPACER
(Superseded to 5047125SM)

$7.99

$

In Stock, Qty 7

0

6

Snapper 5025010X6

CAPSCREW, Hex Head, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

7

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 5049333D

FAN SHIELD
(Superseded to 5049333DYP)

$19.99

$

Usually ships in 2-12 days

0

9

Snapper 5025096

NUT, HEX NYLON LOCK, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

10

Snapper 5047055D

MOTION CONTROL LEVER - LH
(Superseded to 5047055DYP)

$45.99

$

Usually ships in 2-12 days

0

11

Snapper 7091098

WASHER, FLAT, 5/16
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 5025170

LOCK WASHER, 5/16
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5025011X8

CAPSCREW, HEX HEAD, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5048914D

NEUTRAL LOCK PLATE COVER, LH
(Superseded to 5048914DYP)

$17.99

$

Usually ships in 2-12 days

0

15

Snapper 5048122D

WELD, CONTROL SHAFT LH
(Superseded to 5048122DYP)

$94.99

$

Usually ships in 2-12 days

0

16

Snapper 5025055X16

CAPSCREW, HEX HEAD, TFL, 5/16-18 X 2
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5025079

NUT, HEX, #10-24
(Superseded to 703895)

$4.49

$

In Stock, Qty 8

0

18

Snapper 5022095

SWITCH, NO/NC
(Superseded to 1717050)

$17.99

$

In Stock, Qty 10

0

19

Snapper 5025011X18

CAPSCREW, HEX HEAD, 5/16-18 X 2 1/4
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

20

Snapper 5025299X6

SCREW, #10-24
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 5048169D

WELD, PLATE, NEUTRAL
(Superseded to 5048169DYP)

$74.99

$

Usually ships in 2-12 days

0

22

Snapper 5025139

NUT, HEX SERRATED FLANGE, 5/16-18
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

23

Snapper 5025055X14

CAPSCREW, HEX HEAD, TFL, 5/16-18 X 1-3/4
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5048264

SPACER
(Superseded to 5048264SM)

Note: (Was 504848264)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 5025128

NUT, HEX, SERRATED FLANGE, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

27

Snapper 5021098

BRONZE BEARING
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

28

Snapper 5048123D

WELD, CONTROL SHAFT RH
(Superseded to 5048123DYP)

$94.99

$

Usually ships in 2-12 days

0

29

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

30

Snapper 5021499

FLANGE BEARING
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

31

Snapper 5025327

CAPSCREW, SOCKET HEAD, 3/8-16 X 1 1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0
