ZT 18440 KH (5091000) - Snapper 44" Zero-Turn Mower, 18hp Parking Brake Group Parts Diagram

44" Zero-Turn Mower, 18hp

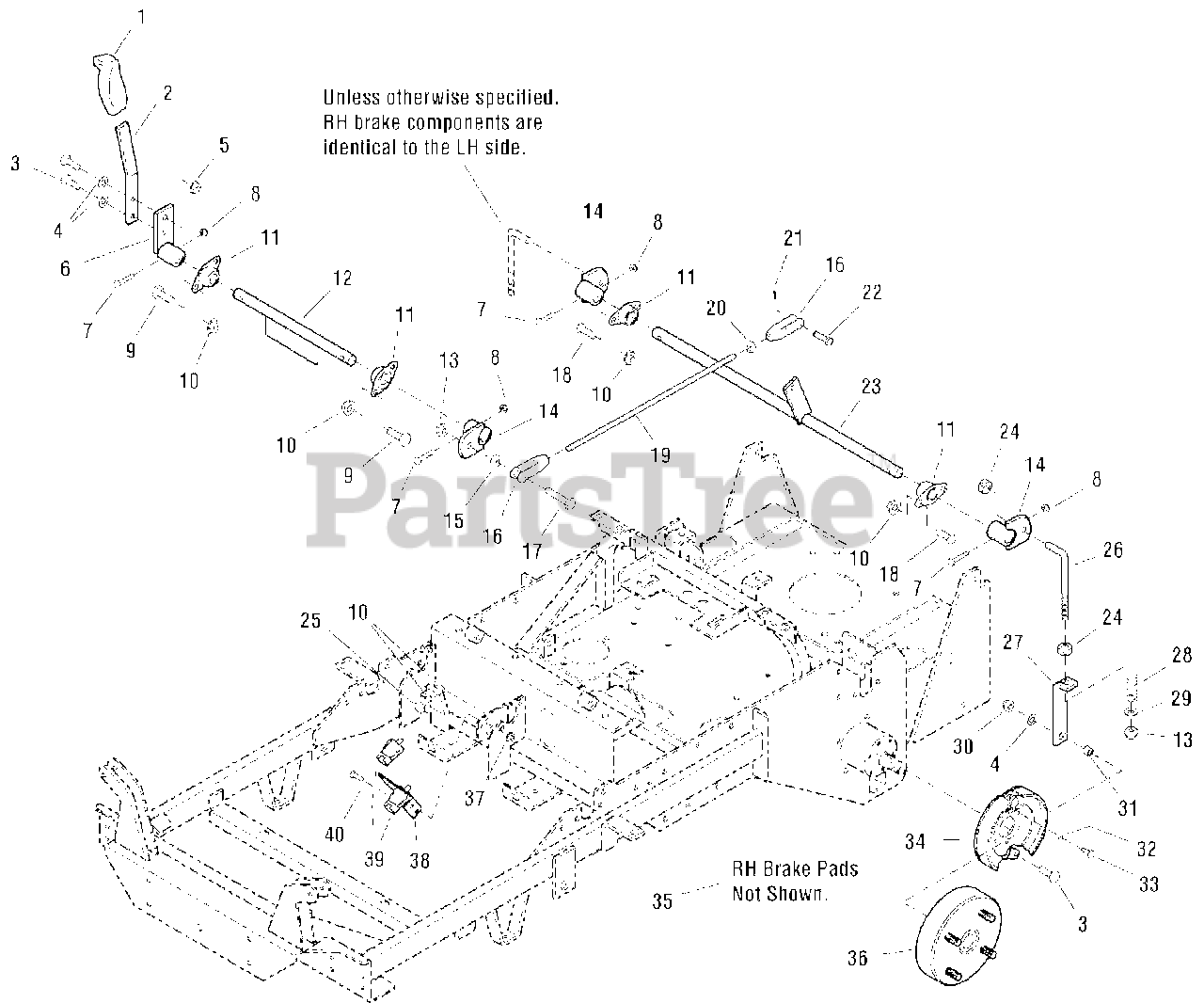

Parking Brake Group Parts Diagram

  • Title

1

Snapper 1722302

GRIP
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 11

0

2

Snapper 5045619D

BRAKE HANDLE
(Superseded to 5045619DYP)

$18.99

$

Usually ships in 2-12 days

0

3

Snapper 5025011X8

CAPSCREW, HEX HEAD, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7091098

WASHER, FLAT, 5/16
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025139

NUT, HEX SERRATED FLANGE, 5/16-18
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

6

Snapper 5048401D

MOUNT, BRAKE HANDLE
(Superseded to 5048401DYP)

$49.99

$

Usually ships in 2-12 days

0

7

Snapper 5025010X14

CAPSCREW, HEX HEAD, 1/4-20 X 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

8

Snapper 5025095

NUT, HEX NYLON LOCK, 1/4-20
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

9

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5025128

NUT, HEX SERRATED FLANGE, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 5021098

BEARING, FLANGE
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

12

Snapper 5048163D

BRAKE SHAFT, FRONT
(Superseded to 5048163DYP)

$25.99

$

Usually ships in 2-12 days

0

13

Snapper 5025096

NUT, HEX NYLON LOCK, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

14

Snapper 5045618D

BRAKE LINKAGE PIVOT
(Superseded to 5045618DYP)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 5025034

NUT, HEX, 3/8-16
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 5021171

CLEVIS, 3/8-24
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

18

Snapper 5025075X6

CAPSCREW, BUTTON ALLEN HEAD, 3/8-16 X 3/4
(Superseded to 5025075X6SM)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 5042553

ROD
(Superseded to 5042553SM)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper 5025035

NUT, HEX, 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091597

PIN, COTTER
(Superseded to 703312)

Note: (Was 50252016)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7029687

PIN, CLEVIS, 3/8 X 1
(Superseded to 7029687YP)

Note: (Was 50252148)

$7.99

$

In Stock, only 1 left!

0

23

Snapper 5048166D

BRAKE SHAFT, REAR
(Superseded to 5048166DYP)

$64.99

$

Usually ships in 2-12 days

0

24

Snapper 5010546

COLLAR, SET, 3/8
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 5025058X14

CAPSCREW, HEX HEAD, TFL, 3/8-16 X 1-3/4
(Superseded to 5025058X14YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 5047091

ROD, BRAKE ADJSUTMENT
(Superseded to 5047091SM)

$13.99

$

Usually ships in 2-12 days

0

27

Snapper 5047084D

BRAKE LINK
(Superseded to 5047084A)

$21.99

$

Usually ships in 2-12 days

0

28

Snapper 5022361

SPRING, COMPRESSION
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

29

Snapper 3025156

WASHER, FLAT, 3/8
(Superseded to 703590)

Note: (Was 5025156)

$3.99

$

In Stock, Qty 16

0

30

Snapper 7091298

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 12

0

31

Snapper 5041930

PIVOT SLEEVE
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 5025169

WASHER, LOCK, 1/4
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 5023215

CAPSCREW, HEX HEAD, M6 X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 5023188

BRAKE ASSEMBLY, LH
(Superseded to 5023188SM)

$188.99

$

Usually ships in 2-12 days

0

35

Snapper 5023106

BRAKE ASSEMBLY, RH (NOT SHOWN)
(Superseded to 5102904YP)

$176.99

$

Usually ships in 2-12 days

0

36

Snapper 5023094

BRAKE DRUM, 4 BOLT
(Superseded to 5102903YP)

$243.99

$

In Stock, only 1 left!

0

37

Snapper 5025126

NUT, HEX SERRATED FLANGE, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 5045621D

SWITCH MOUNT BRACKET
(Superseded to 5045621DYP)

$9.49

$

Usually ships in 2-12 days

0

39

Snapper 7022886YP

SWITCH, PLUNGER, SNAP IN

$14.99

$

In Stock, Qty 20+

0

40

Snapper 5025010X5

CAPSCREW, HEX HEAD, 1/4-20 X 5/8
(Superseded to 5025010X5SM)

$3.49

$

Usually ships in 2-12 days

0
