ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Main Frame & Front Suspension Group Parts Diagram

44" Zero-Turn Mower, 18hp

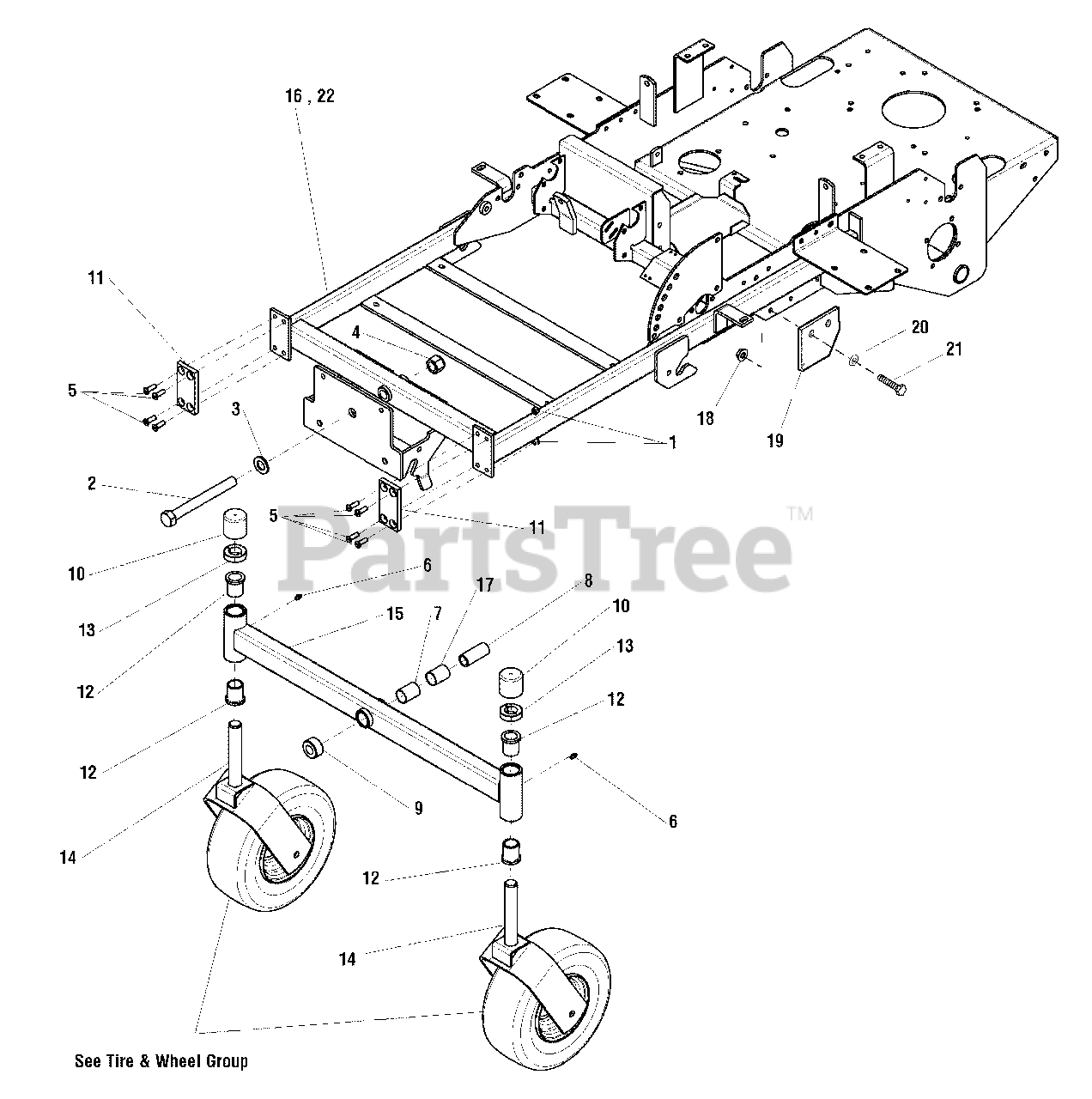

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Snapper 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 5025265X56

3/4-16 X 7" GD 8 BOLT TZ
(Superseded to 5025265X56SM)

$44.99

$

Usually ships in 2-12 days

0

3

Snapper 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 2 left!

0

5

Snapper 5025303

SCREW 5/16-18 X 1 FLAT HD SC
(Superseded to 5025303SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 5022852

PIVOT BEARING,1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$34.99

$

In Stock, only 2 left!

0

8

Snapper 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$37.99

$

In Stock, only 2 left!

0

9

Snapper 5400756

SPACER, .75 X 1.50 X .785
(Superseded to 5400756SM)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 5023214

CAP, VINYL 1.687 X 1-1/2
(Superseded to 5023214SM)

$6.49

$

In Stock, Qty 16

0

11

Snapper 5045990

PLATE, FRICTION REDUCER
(Superseded to 5045990SM)

$21.99

$

Usually ships in 2-12 days

0

12

Snapper 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

13

Snapper 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$23.99

$

In Stock, only 1 left!

0

14

Snapper 5048775D

WELD, CASTER YOKE
(Superseded to 5048775DYP)

$170.99

$

Usually ships in 2-12 days

0

15

Snapper 5400405D

WELD, PIVOTING FRONT END
(Superseded to 5400405DYP)

$207.99

$

Usually ships in 2-12 days

0

16

Snapper 5400350D

WELD, MAIN FRAME, SNAPPER ZT

$

$

Currently unavailable

17

Snapper 5100358

BEARING, PIVOT, 1.00 X 1.25 X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, only 2 left!

0

18

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (18HP & 19HP Models Only)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 5401053D

PLATE, DECK STOP - SNAPPER RED
(Superseded to 5401053DYP)

Note: (18HP & 19HP Models Only)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 5025155

WASHER, 5/16" SAE

Note: (18HP & 19HP Models Only)

$

$

Currently unavailable

21

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (18HP & 19HP Models Only)

$3.99

$

In Stock, only 2 left!

0

22

Snapper 5403499D

WELD, MAIN FRAME, SNAPPER 400Z

Note: (24 HP Models Only)

$

$

Not available
