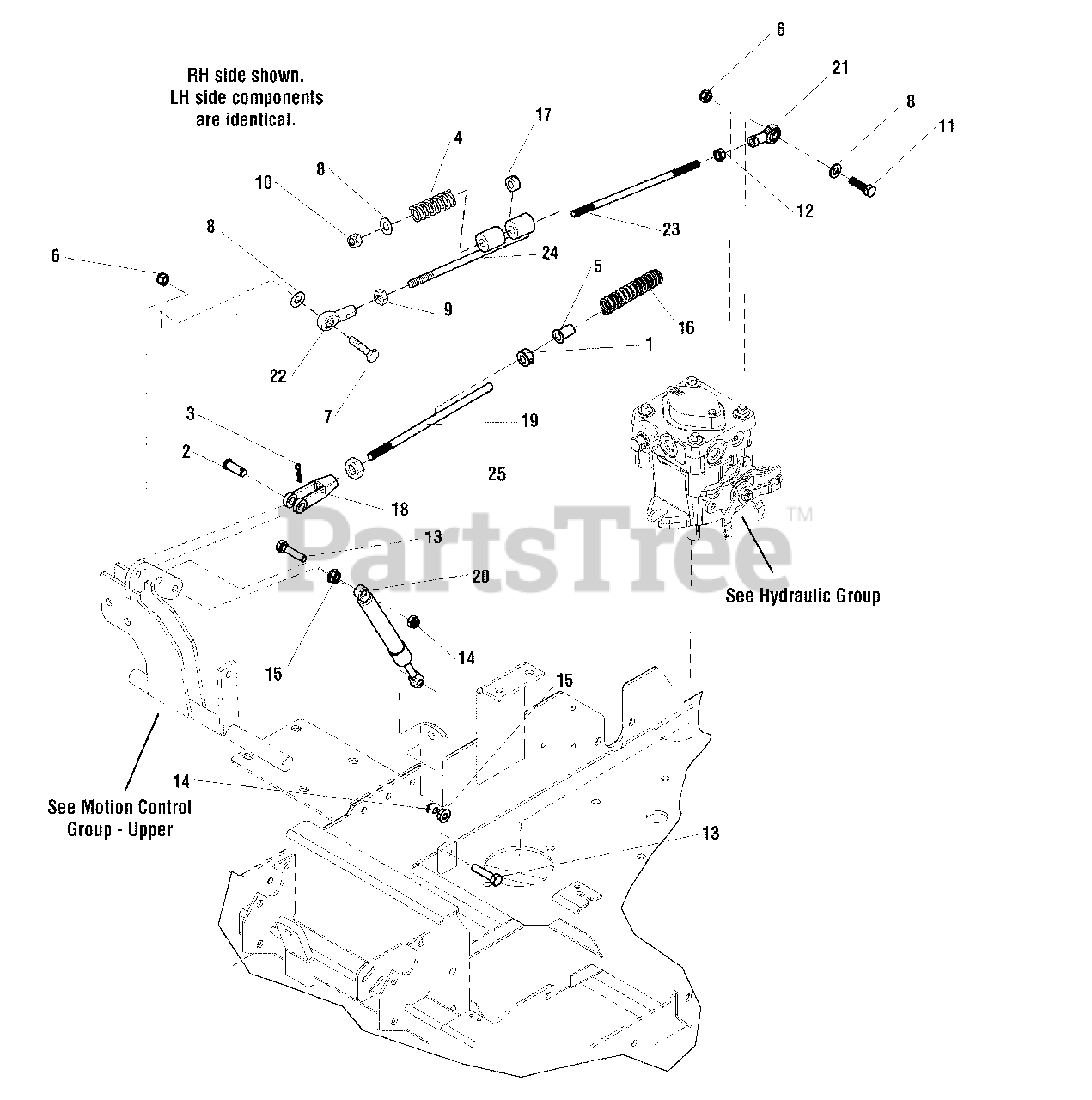

ZT 19441 KWV (5900609) - Snapper 44" Zero-Turn Mower, 18hp Control Group Lower Parts Diagram

44" Zero-Turn Mower, 18hp

Control Group Lower Parts Diagram

  • Title

1

Snapper 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

2

Snapper 5025214X8

PIN, CLEVIS, 3/8" X 1"
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper 5025211

PIN, HAIR, .0585 X 1-1/8
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 5023242

SPRING, CONTROL ROD
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

5

Snapper 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

8

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Snapper 5025033

NUT, HEX 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5025045

NUT 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

11

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5023212

NUT, 5/16 HEX LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5025335

BOLT, M8-1.25 x 35MM
(Superseded to 5025335SM)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5025354

NUT, M8-1.25 Hex Nylon Lock
(Superseded to 5025354SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 5022645

SPRING, COMPRESSION
(Superseded to 5022645SM)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 5020047

SET COLLAR, 5/16"
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper 5021171

CLEVIS, 3/8-24, PLASTIC
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

19

Snapper 5049969

ROD, NEUTRAL CONTROL, 8"
(Superseded to 5049969SM)

$33.99

$

Usually ships in 2-12 days

0

20

Snapper 5022978

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, only 3 left!

0

21

Snapper 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

22

Snapper 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

23

Snapper 5103673

ROD, 5/16 X 8.38, LH-RH, CZ
(Superseded to 5103673YP)

$6.49

$

Usually ships in 2-12 days

0

24

Snapper 5048923

ROD ASSEMBLY, SLIDER
(Superseded to 5048923SM)

$45.99

$

Usually ships in 2-12 days

0

25

Snapper 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0
