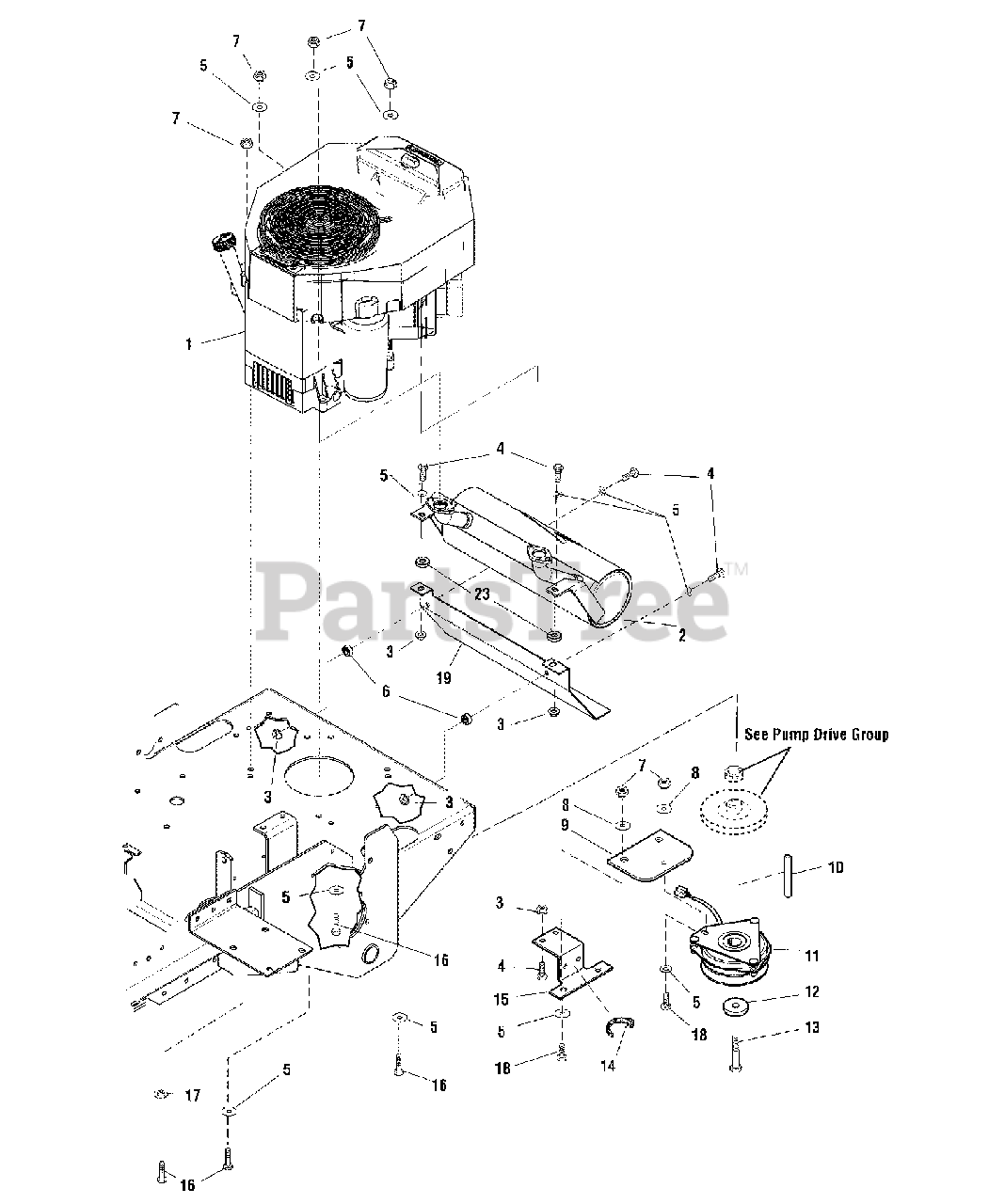

ZT 19441 KWV (5900609) - Snapper 44" Zero-Turn Mower, 18hp Engine & PTO Group - KAWASAKI Parts Diagram

44" Zero-Turn Mower, 18hp

Engine & PTO Group - KAWASAKI Parts Diagram

  • Title

1

Snapper FH580V-BS01-S

* ENGINE, 19HP KAWASAKI

$

$

Currently unavailable

2

Snapper 5101125

MUFFLER
(Superseded to 5101125YP)

$259.99

$

Usually ships in 2-12 days

0

3

Snapper 5025392

NUT, HEX NYLOCK FLANGE, 5/16-18
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

5

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 5025057

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 5044617

WASHER, CLUTCH ANCHOR, 5/16
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

9

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

10

Snapper 5050407X18

KEY, 1/4 SQ. X 2-1/4
(Superseded to 5050407X18SM)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 5023100

CLUTCH, ELECTRIC
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

12

Snapper 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 5023253

BOLT, CRANKSHAFT, 7/16 X 3-1/4
(Superseded to 5103300YP)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 5021030

TIE WRAP
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

15

Snapper 5048226D

CLUTCH ANCHOR
(Superseded to 5048226DYP)

$27.99

$

Usually ships in 2-12 days

0

16

Snapper 5025011X14

BOLT, 5/16-18 X 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5025188

WASHER, 5/16 INT TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 5025011X8

BOLT, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 5400870D

PLATE, HEAT SHIELD
(Superseded to 5400870DYP)

$29.99

$

Usually ships in 2-12 days

0

20

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

Note: (Not Shown)

$18.99

$

In Stock, only 1 left!

0

21

Snapper 5050833X6

WIRE LOOM, OIL DRAIN
(Superseded to 5050833X6YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 5044960

SPACER, .39 X 1.00 X .38
(Superseded to 5044960SM)

$5.49

$

In Stock, only 3 left!

0
