ZT 2042 (2691138-00) - Simplicity 42" Zero-Turn Mower, 20hp Briggs & Stratton Engine Group Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

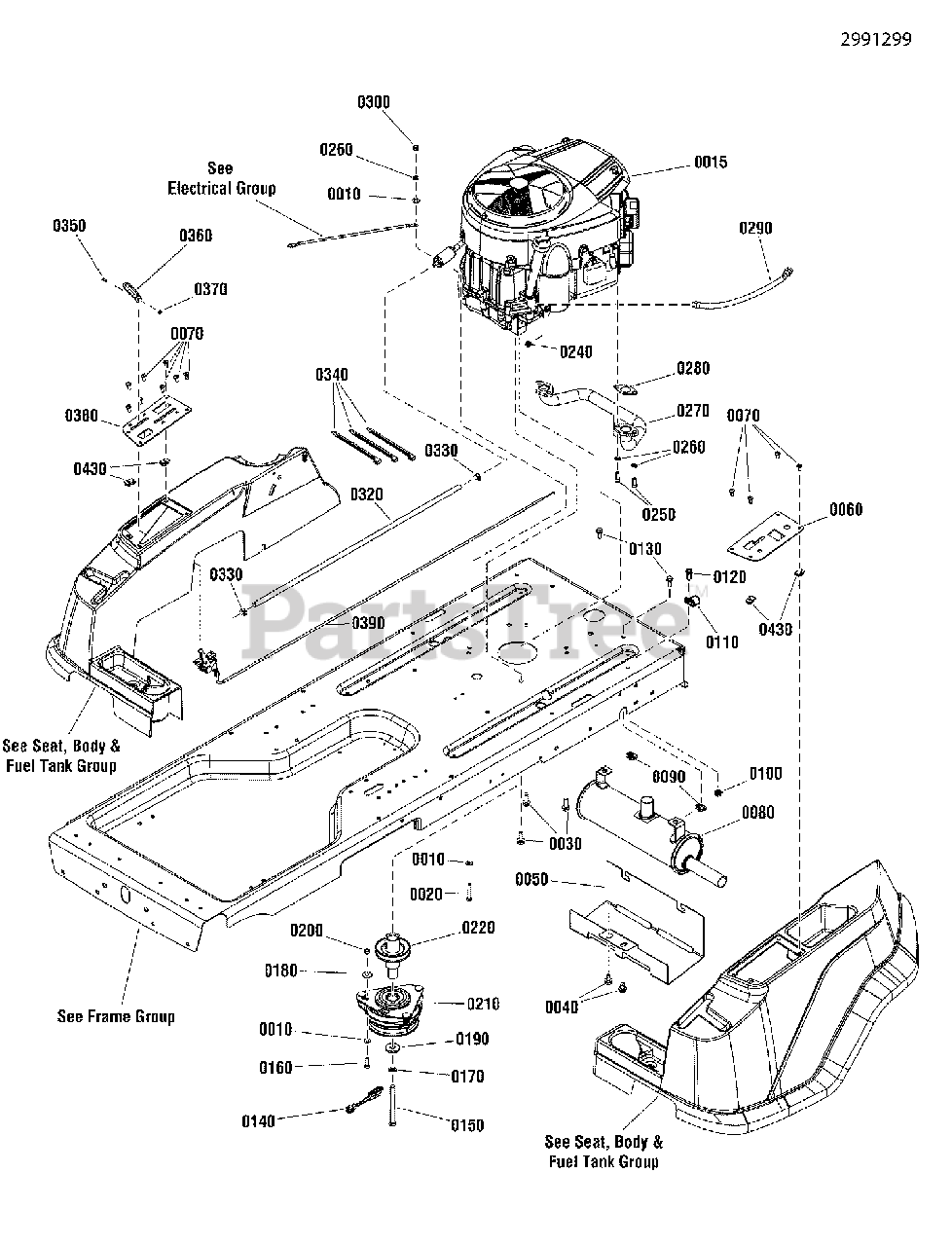

Engine Group Parts Diagram

  • Title

0010

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 10

0

0015

Simplicity 40G777-0002-G5

* ENGINE, 20 HP B&S PRO Series Twin, Model 40G777-0002-G5

$

$

Not available

0020

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

0030

Simplicity 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$5.49

$

In Stock, Qty 13

0

0040

Simplicity 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 7301083BMYP

SHIELD, Muffler Heat

$49.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7301084BMYP

PANEL, Control, LH

$23.99

$

Usually ships in 2-12 days

0

0070

Simplicity 7090999SM

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx, BP
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0080

Simplicity 7103411YP

MUFFLER, RZT

$237.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1935255SM

NUT, 5/16-18, Speed Lug Type .025/.150 B

$3.49

$

In Stock, Qty 12

0

0100

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

0110

Simplicity 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0130

Simplicity 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

0140

Simplicity 1737462YP

HARNESS, Jumper, 4" LG

$10.99

$

In Stock, only 2 left!

0

0150

Simplicity 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5 YZ

$

$

Not available

0160

Simplicity 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 7

0

0170

Simplicity 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

0180

Simplicity 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, Qty 9

0

0190

Simplicity 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 2 left!

0

0200

Simplicity 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 1757359YP

CLUTCH, Ogura, Integrated Key

$278.99

$

In Stock, only 1 left!

0

0220

Simplicity 7043343SM

PULLEY, Engine, 3.5 OD, 1 ID, 4.92 Tall

$121.99

$

In Stock, Qty 5

0

0240

Simplicity 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 11

0

0250

Simplicity 7091738SM

SET SCREW, 5/16-18 x 3/4 Socket Head, GR8, BZ

$4.99

$

In Stock, Qty 10

0

0260

Simplicity 703116

WASHER, .32 X .58 X .08, Split Lock, Zinc/Clear
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0270

Simplicity 7103414YP

MANIFOLD, B&S V-Twin

$106.99

$

In Stock, only 1 left!

0

0280

Simplicity 1731214SM

GASKET, Exhaust B&S
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0290

Simplicity 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$28.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703465

NUT, 5/16-18, GR5, ZINC/CLEAR
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

0320

Simplicity 7200140YP

HOSE, Fuel, 1/4 ID x 32"

$15.99

$

In Stock, only 1 left!

0

0330

Simplicity 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

0340

Simplicity 703586

TIE, .184 WD, 15.0 Long, Self Locking, Black

$4.99

$

Usually ships in 2-12 days

0

0350

Simplicity 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$4.49

$

In Stock, only 4 left!

0

0360

Simplicity 7103888YP

KNOB, Throttle, Red

$8.99

$

Usually ships in 2-12 days

0

0370

Simplicity 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 7

0

0380

Simplicity 7301093BMYP

PANEL, Control, RH

$21.99

$

Usually ships in 2-12 days

0

0390

Simplicity 7103771YP

ASSEMBLY, Throttle, Choke-A-Matic, B&S

$43.99

$

Usually ships in 2-12 days

0

0430

Simplicity 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0440

Simplicity 797420YP

COVER, Static/Lable Assembly (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0450

Simplicity 95957YP

SCREW, #8-18 X 7/8", Pan Head Hi/Lo Thread Rolling (Not Shown)

$

$

Not available
