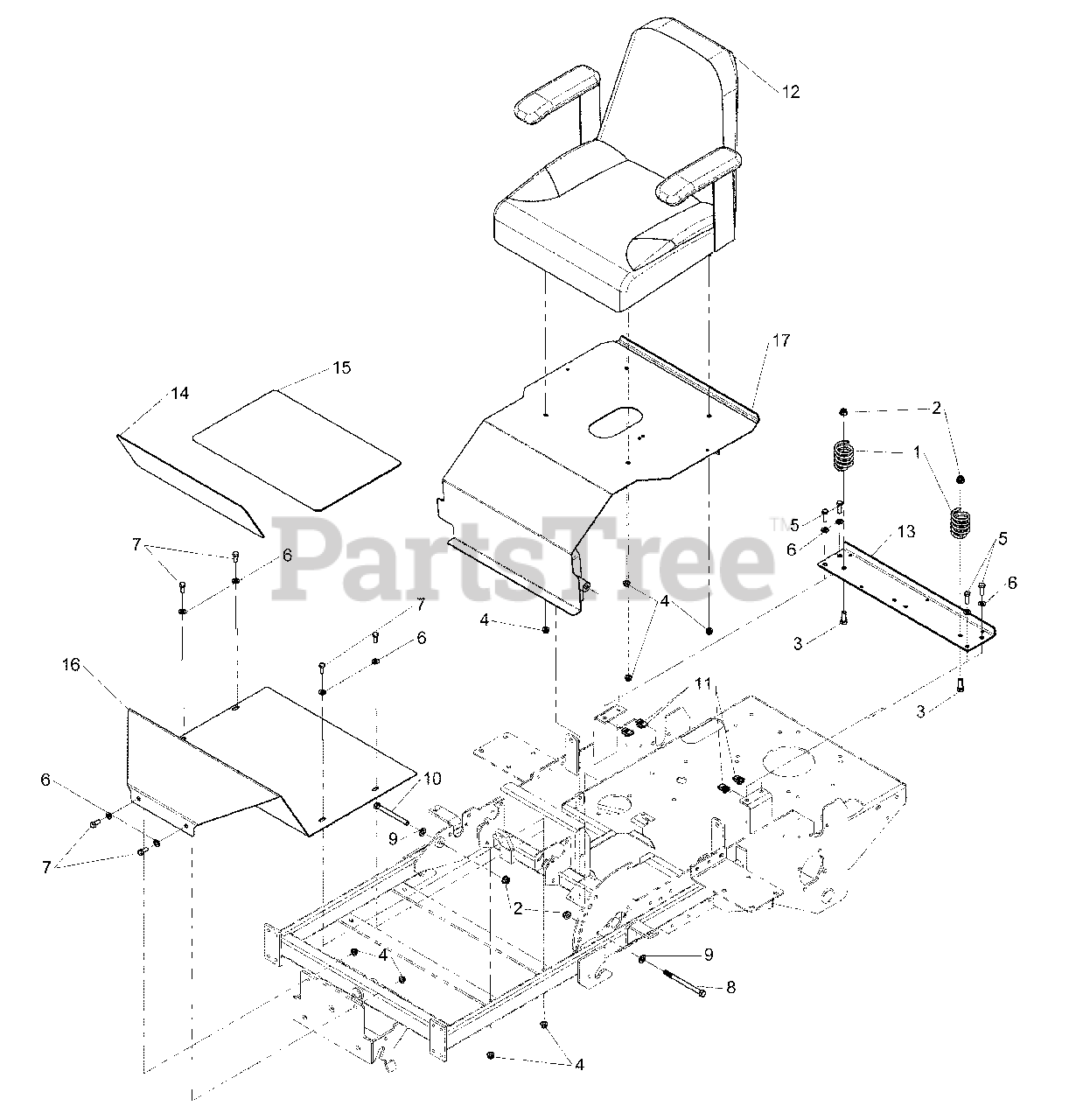

ZT 2050 (2690477) - Massey Ferguson 50" Zero-Turn Mower, 20hp Briggs & Stratton Seat & Kickplate Group (273SMF0) Parts Diagram

50" Zero-Turn Mower, 20hp Briggs & Stratton

Seat & Kickplate Group (273SMF0) Parts Diagram

  • Title

1

Simplicity 7078299SM

SPRING, CONTROL ROD

$15.99

$

In Stock, only 4 left!

0

2

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

6

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

7

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GRD5

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025013X40SM

BOLT, 3/8-16 X 5" GD5

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

10

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4" GD5

$4.49

$

In Stock, Qty 9

0

11

Simplicity 5022308SM

BODY CLIP 5/16-18 X 1/2" DEEP

$5.99

$

In Stock, only 2 left!

0

12

Simplicity 5061599SM

SEAT

$788.99

$

Usually ships in 2-12 days

0

13

Simplicity 5400361DYP

MOUNT, OIL FILTER

$31.99

$

Usually ships in 2-12 days

0

14

Simplicity 5049979SM

SAFETY WALK, FLOOR REST
(Superseded to 5101007SM)

$34.99

$

Usually ships in 2-12 days

0

15

Simplicity 5049978SM

SAFETY WALK, FLOOR PLATE

$

$

Not available

16

Simplicity 5400918DYP

PLATE, FLOOR DETAIL

$107.99

$

Usually ships in 2-12 days

0

17

Simplicity 5400528DYP

WELD, SEAT PLATE

$319.99

$

Usually ships in 2-12 days

0
