ZT 2050 (2690477) - Massey Ferguson 50" Zero-Turn Mower, 20hp Briggs & Stratton Wheel & Tire Group (273WHL0) Parts Diagram

50" Zero-Turn Mower, 20hp Briggs & Stratton

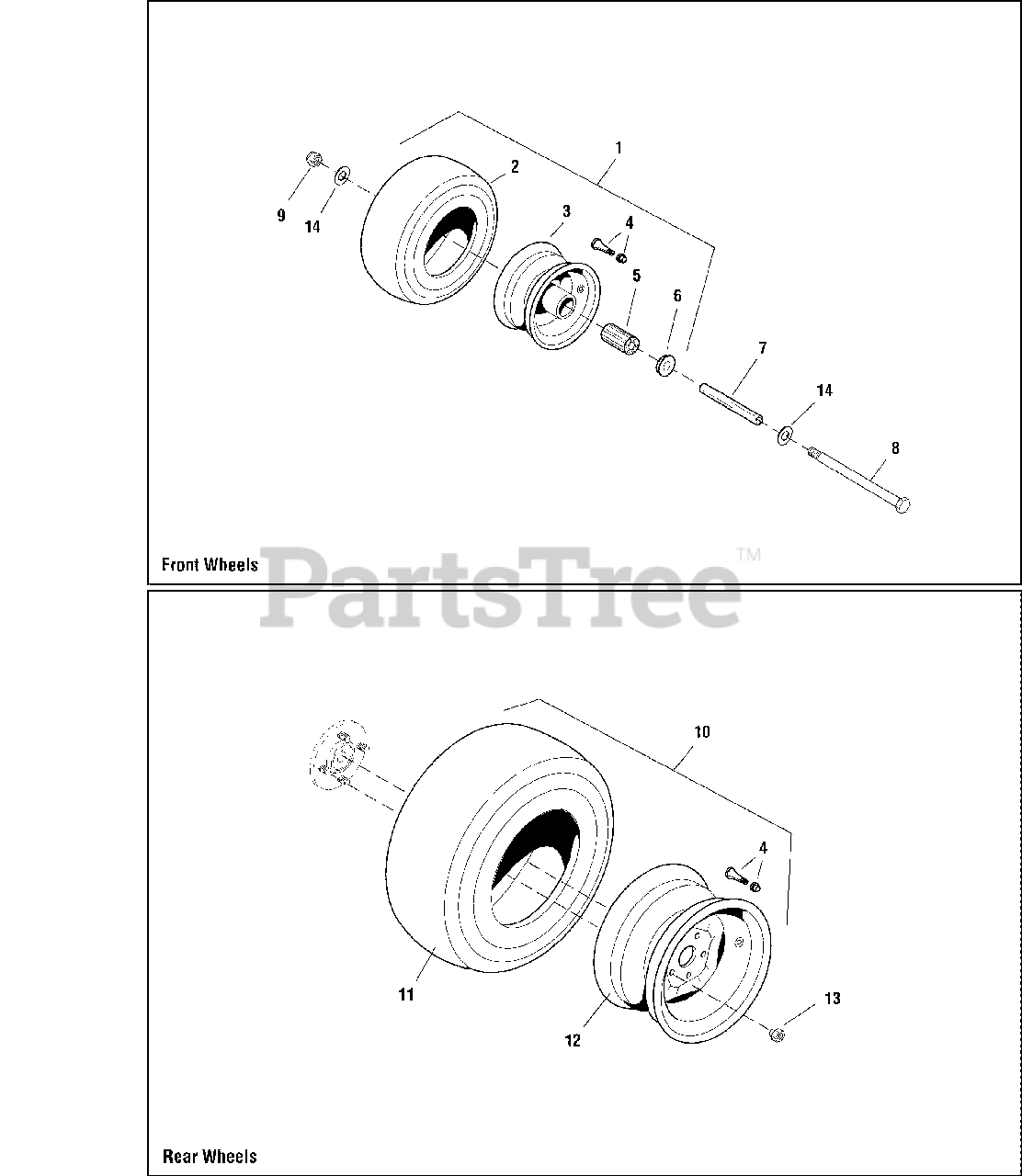

Wheel & Tire Group (273WHL0) Parts Diagram

  • Title

1

USE 5101418YP - WHEEL, CASTER, 11 X 4 - 5 SILVER, BEAD LOCK (Max PSI: 25)

Note: (Includes Ref No. 2 - 6) (Replacement for 5101418YP is 5101418X2YP)

$

$

Not available

2

Simplicity 5022433X1SM

TIRE, FRONT, 11 X 4.0 - 5

$75.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022433SX2SM

WHEEL ASSEMBLY, COMPLETE
(Superseded to 5101418X2YP)

Note: (Includes Ref No. 4 & 5)

$84.99

$

In Stock, only 1 left!

0

4

Simplicity 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

5

Simplicity 5021042SM

BEARING, ROLLER

Note: (2 Per Tire)

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 5021043SM

BEARING RETAINER

Note: (2 Per Tire)

$7.49

$

In Stock, only 3 left!

0

7

Simplicity 5045996SM

AXLE, FRONT CASTER

$15.99

$

In Stock, only 2 left!

0

8

Simplicity 5025017X52SM

BOLT, 1/2-13 X 6-1/2

$10.99

$

In Stock, only 2 left!

0

9

Simplicity 5025056SM

NUT, HEX NYLON LOCK, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

10

Simplicity 5101293SM

TIRE ASSM, 20X8.00-10NHS, TURF MASTER
(Superseded to 5102329YP)

Note: (Includes Ref No. 4, 11 & 12)

$349.99

$

Usually ships in 2-12 days

0

11

Simplicity 5101293X1SM

TIRE, Rear 20 X 8.0 X 10, TURF MASTER
(Superseded to 5101293X1YP)

$243.99

$

Usually ships in 2-12 days

0

12

Simplicity 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS (SV)

$

$

Currently unavailable

13

Simplicity 5020601SM

LUG NUT, 1/2-20

$3.49

$

In Stock, Qty 9

0

14

Simplicity 5025158SM

WASHER, SAE, 1/2

$3.99

$

In Stock, Qty 13

0
