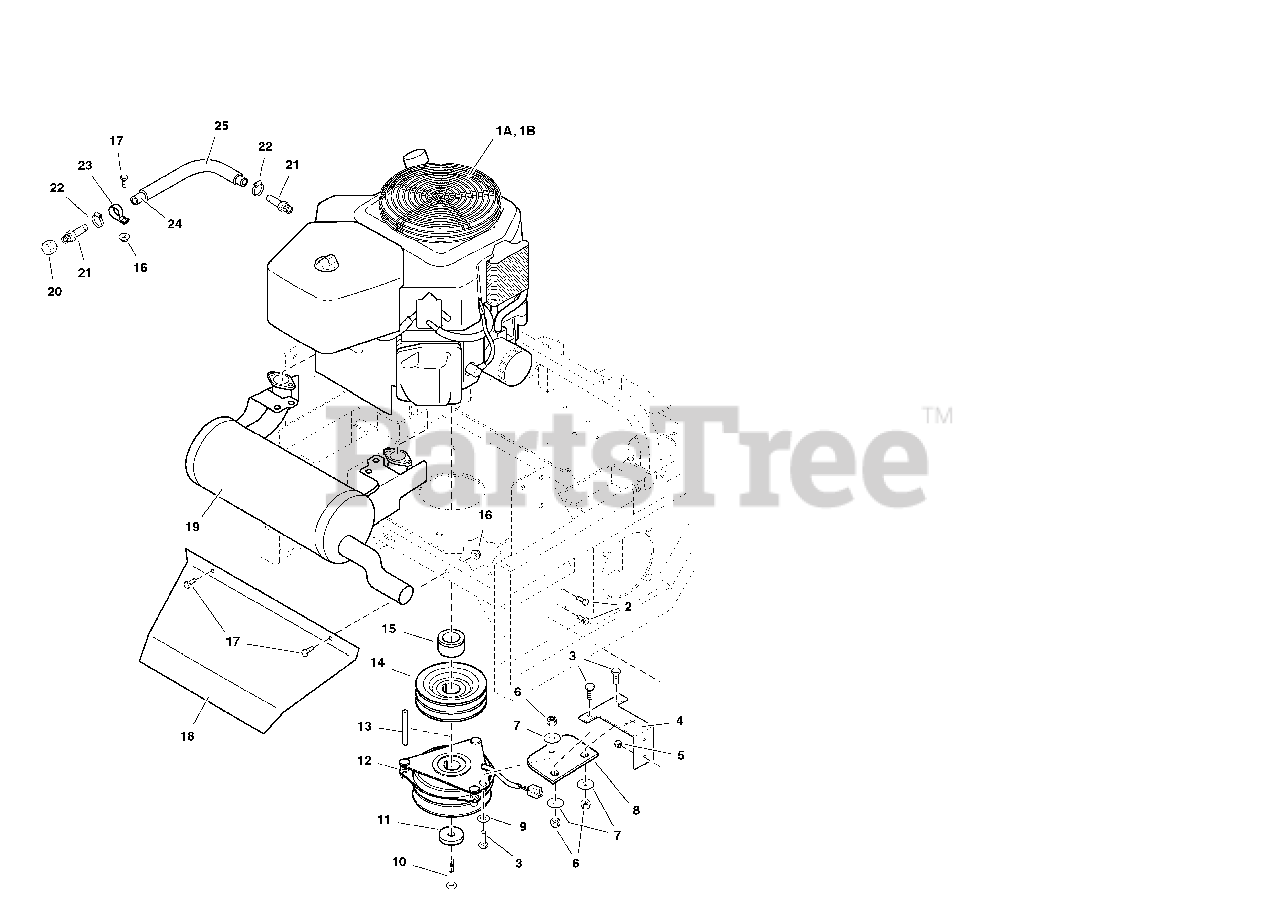

ZT 2148 K - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Engine Group - PTO - Kohler (7034epgk) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

Engine Group - PTO - Kohler (7034epgk) Parts Diagram

  • Title

1A

Simplicity 5022888

ENGINE, 21HP Kohler

$

$

Not available

1B

Simplicity 5022889

ENGINE, 23HP Kohler

$

$

Not available

*

Simplicity 50211441

OIL FILTER

$

$

Not available

*

Simplicity 5021178X3SM

FUEL FILTER

$9.49

$

Usually ships in 2-12 days

0

*

PRE-CLEANER (4508301)

$

$

Not available

*

AIR FILTER (4508302)

$

$

Not available

2

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 5

0

4

Simplicity 1847134

CLUTCH ANCHOR

$

$

Not available

5

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

6

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 6

0

7

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

9

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 5044853SM

CRANKSHAFT BOLT, 7/16 x 2

$5.49

$

Usually ships in 2-12 days

0

11

Simplicity 5045475SM

RETAINER, Clutch

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 5023231

ELECTRIC CLUTCH
(Superseded to 5023432SM)

$683.99

$

In Stock, only 1 left!

0

13

Simplicity 505040728

KEY, 1/4 Sq. x 3-1/2

$

$

Not available

14

Simplicity 5047075SM

CRANKSHAFT PULLEY

$137.99

$

In Stock, only 1 left!

0

15

Simplicity 5047033SM

CRANKSHAFT SPACER

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1847346

MUFFLER HEAT SHIELD (for use with silver version muffler only)

$

$

Not available

19

Simplicity 5400275SM

MUFFLER
(Superseded to 5101275SM)

$329.99

$

Usually ships in 2-12 days

0

20

Simplicity 5021466SM

CAP, 3/8NPT

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$15.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

In Stock, only 2 left!

0

23

Simplicity 5021500SM

CLAMP, Vinyl

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5050857X13SM

HOSE, 13"

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 505086212

WIRE LOOM, 12"

$

$

Not available
