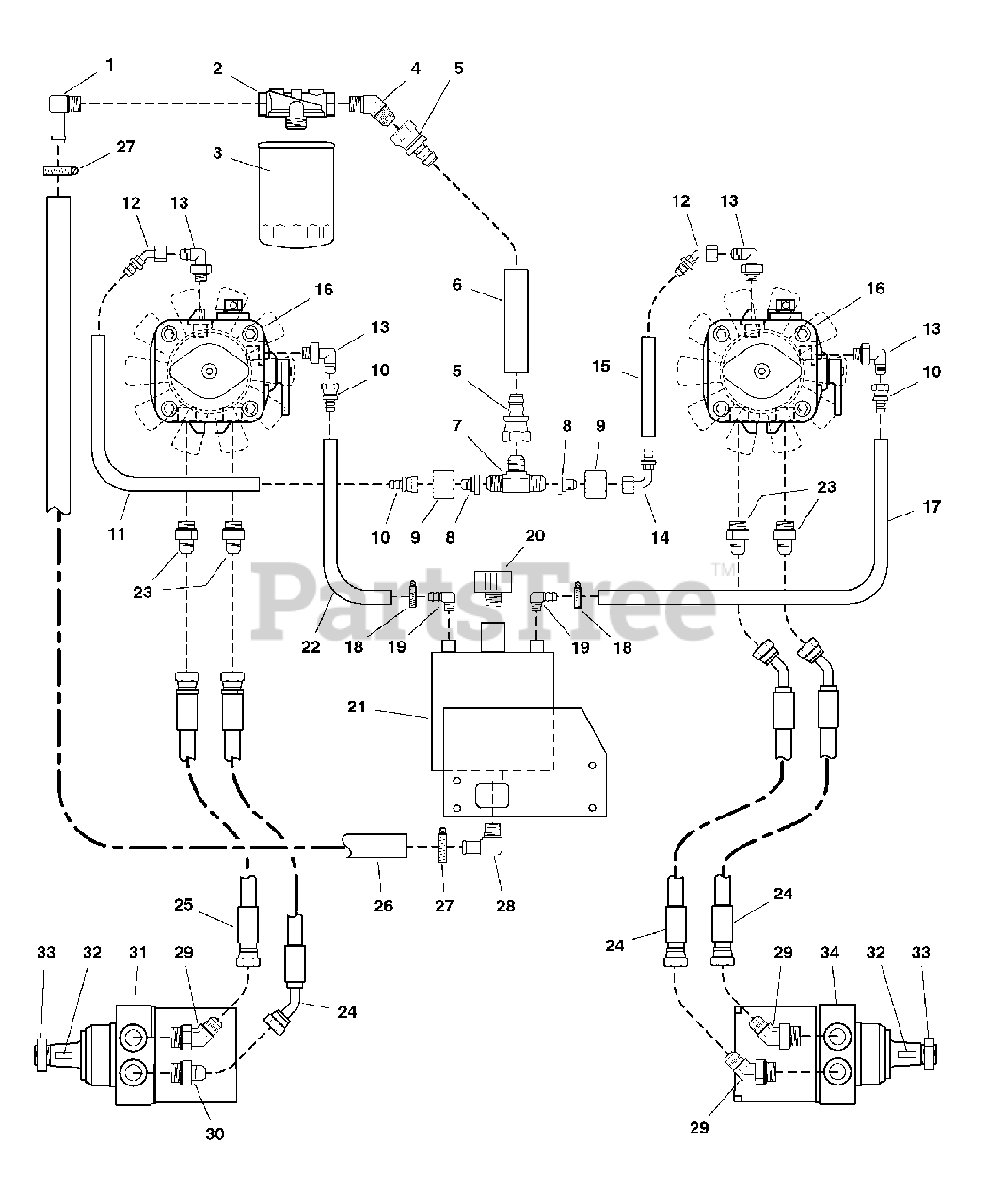

ZT 2148 K - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Hydraulic Group (7034hg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

Hydraulic Group (7034hg) Parts Diagram

  • Title

1

Simplicity 5021233SM

FITTING, 1/2" NPT, 90 Deg.

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021356SM

FILTER HEAD

$61.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021357X1SM

FILTER

$

$

Not available

4

Simplicity 5022720SM

FITTING, 1/2" NPT, 45 Deg.

$

$

Not available

5

Simplicity 5022719SM

FITTING, Hydraulic, Straight Swivel

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 5050933X7P5

HOSE, Hydraulic, 7-1/2"

$

$

Not available

7

Simplicity 5022718SM

FITTING, Tee

$

$

Not available

8

Simplicity 5022716SM

ADAPTER, Tee

$

$

Not available

9

Simplicity 5022717SM

NUT, Adapter

$

$

Not available

10

Simplicity 5022713SM

FITTING, Hydraulic, Straight Swivel

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 50508601375

HOSE, Hydraulic, 13-3/4"

$

$

Not available

12

Simplicity 5022714SM

FITTING, Hydraulic, 45 Deg. Swivel

$

$

Not available

13

Simplicity 5022712SM

FITTING, Hydraulic, O-Ring, 90 Deg.

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022715SM

FITTING, Hydraulic, 90 Deg. Swivel

$

$

Not available

15

Simplicity 5050860675

HOSE, Hydraulic, 6-3/4"

$

$

Not available

16

Simplicity 5022571SM

HYDRAULIC PUMP w/ FAN

$1341.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022571X1SM

Fan & Hub
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

17

Simplicity 505086029

HOSE, Hydraulic, 29"

$

$

Not available

18

Simplicity 5021392SM

HOSE CLAMP, #6

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 5022708

FITTING, 1/4" NPT, 90 Deg.

$10.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022705SM

BREATHER

$51.99

$

Usually ships in 2-12 days

0

21

Simplicity 1847108

HYDRAULIC RESERVOIR
(Superseded to 5048624SM)

$222.99

$

Usually ships in 2-12 days

0

22

Simplicity 505086020

HOSE, Hydraulic, 20"

$

$

Not available

23

Simplicity 5022633SM

FITTING, Hydraulic, O-Ring Adapter

$12.99

$

In Stock, only 2 left!

0

24

Simplicity 5022710SM

HYDRAULIC HOSE ASSEMBLY, 25"

$131.99

$

In Stock, only 1 left!

0

25

Simplicity 5102094SM

HYDRAULIC HOSE ASSEMBLY, 21"
(Superseded to 5102094YP)

$104.99

$

In Stock, only 1 left!

0

26

Simplicity 5050933X16P5

HOSE, Hydraulic, 16-1/2"

$

$

Not available

*

Simplicity 5050933X22YP

HOSE, 5/8" PUSH-ON, 22.00"

Note: (Cut to fit)

$37.99

$

Usually ships in 2-12 days

0

27

Simplicity 5021164SM

HOSE CLAMP, #10

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 5022707

FITTING, 1/2" NPT, 90 Deg.

$22.99

$

Usually ships in 2-12 days

0

29

Simplicity 5022709SM

FITTING, Hydraulic, O-RIng, 45 Deg.

$46.99

$

In Stock, only 2 left!

0

30

Simplicity 5022634SM

FITTING, Hydraulic, O-Ring Adapter

$15.99

$

In Stock, only 3 left!

0

31

Simplicity 5022822LSM

HYDRAULIC WHEEL MOTOR-LEFT, Complete (includes Ref 32 & 33)

$1681.99

$

Usually ships in 2-12 days

0

32

Simplicity 5022042X2SM

KEY

$10.99

$

Usually ships in 2-12 days

0

33

Simplicity 5220423

CASTLE NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

Usually ships in 2-12 days

0

34

Simplicity 5022822RSM

HYDRAULIC WHEEL MOTOR-RIGHT, Complete (includes Ref 32 & 33)

$1567.99

$

Usually ships in 2-12 days

0
