ZT 2148 T - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Seat & Seat Mount Group (7090ssmg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

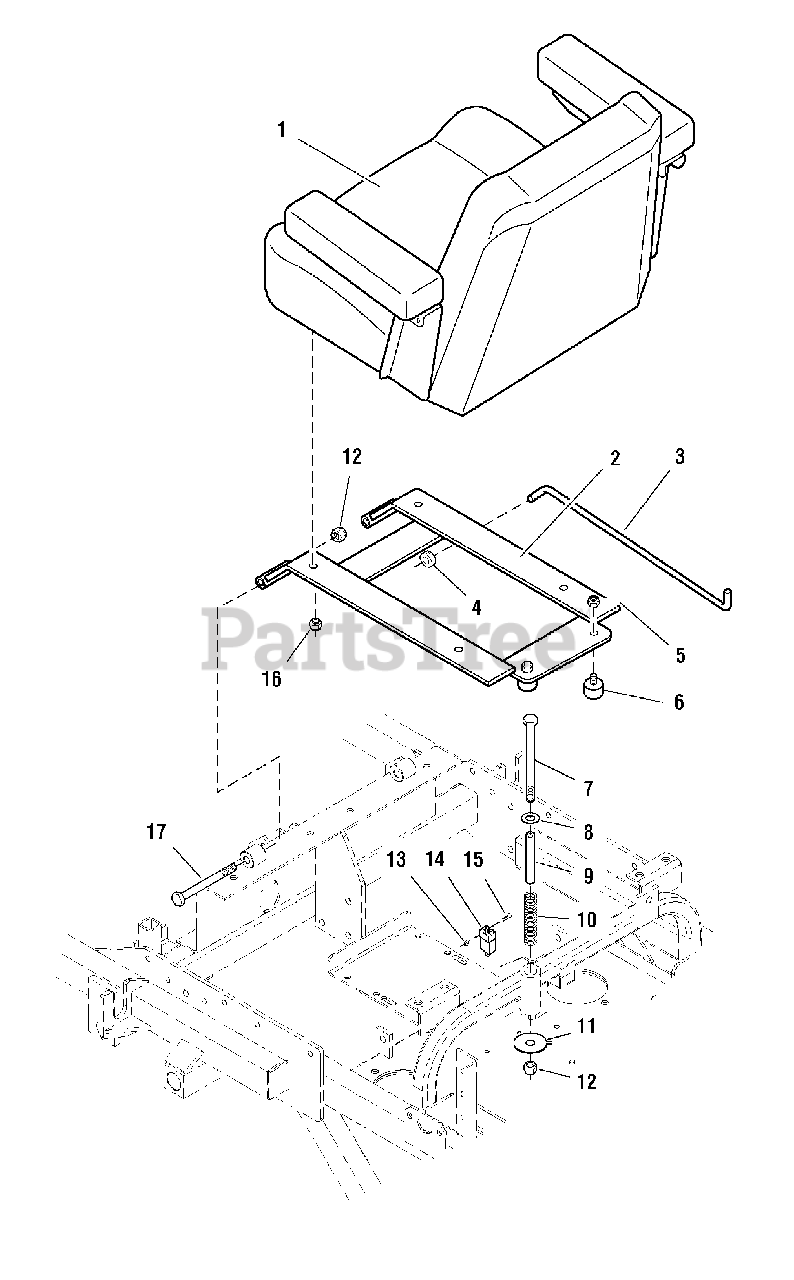

Seat & Seat Mount Group (7090ssmg) Parts Diagram

  • Title

1

Simplicity 5022973SM

SEAT, Derby (complete)
(Superseded to 5022031SM)

$707.99

$

Usually ships in 2-12 days

0

*

Simplicity 5020930X3

SEAT ADJUSTER RAILS (set of 2)
(Superseded to 5020930X3SM)

$253.99

$

Usually ships in 2-12 days

0

2

Simplicity 5047744CSM

SEAT MOUNT

$

$

Not available

3

Simplicity 5046470SM

SEAT STOP ROD

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 5020047SM

COLLAR, 5/16 Set

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 11

0

6

Simplicity 5022673SM

RUBBER BUMPER

$18.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X48SM

CAPSCREW, Hex Hd, 3/8-16 x 6

$5.99

$

In Stock, Qty 9

0

8

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

9

Simplicity 5046586SM

SPACER, .38 x .50 x 5.06

$12.99

$

In Stock, Qty 8

0

10

Simplicity 5022798SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025326SM

WASHER, 3/8 x 2

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

13

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

14

SWITCH (see electrical schematic)

$

$

Not available

15

Simplicity 5025179X4SM

SCREW, #10-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

17

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$3.99

$

In Stock, only 1 left!

0
