ZT-2150 (53CA1A6M190) - White Outdoor 48" Zero-Turn Mower (2001) Deck Lift Assembly Parts Diagram

48" Zero-Turn Mower

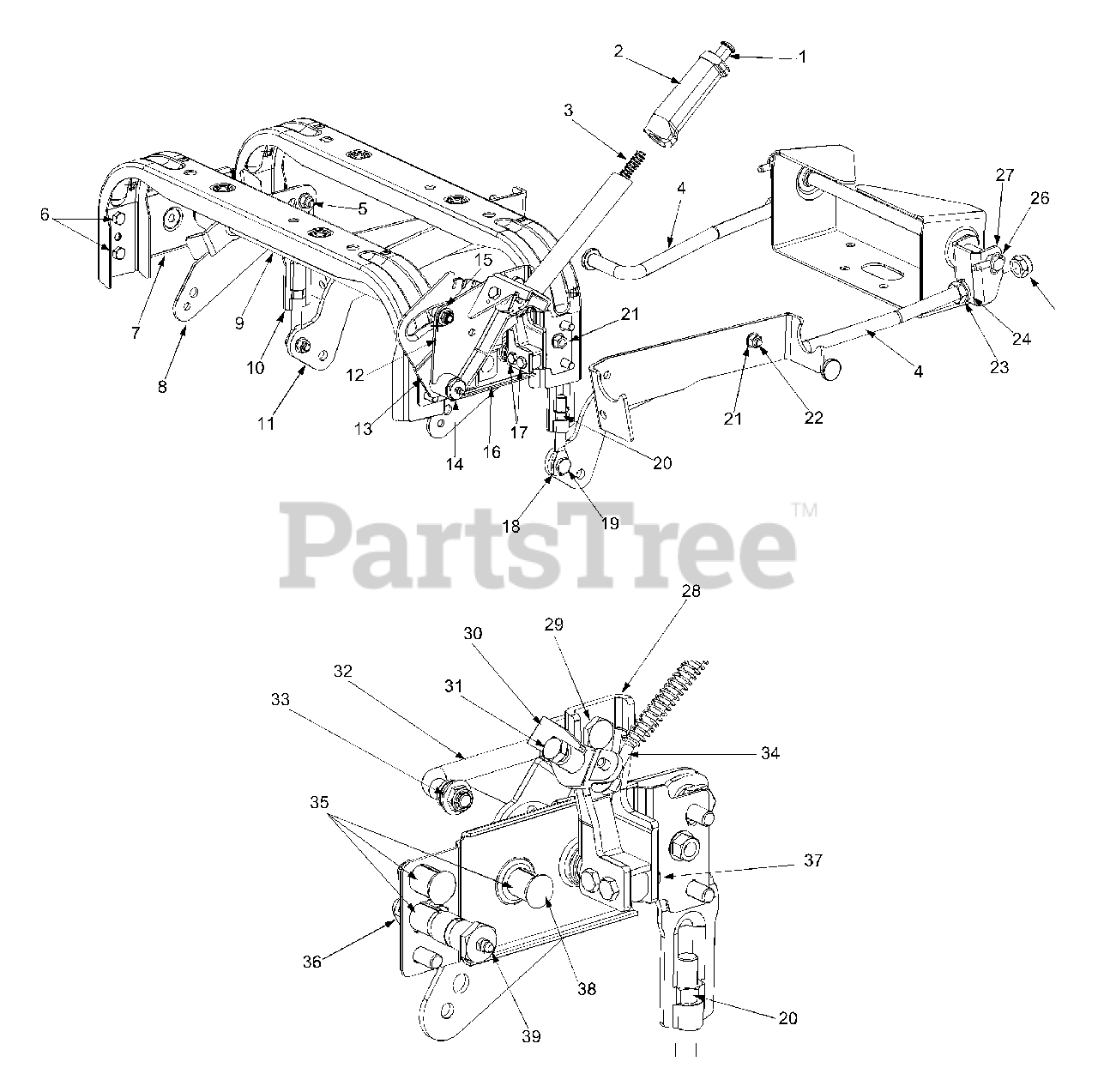

Deck Lift Assembly Parts Diagram

  • Title

1

White Outdoor 711-0642A

Handle Button

$8.49

$

In Stock, Qty 16

0

2

White Outdoor 731-3158

Handle Deck Lift Grip

$18.99

$

Usually ships in 3-6 days

0

3

White Outdoor 732-3097

Compression Spring

$15.99

$

In Stock, only 4 left!

0

4

White Outdoor 747-3405

Front Lift Rod

$

$

Not available

5

White Outdoor 738-0507B

Shoulder Screw .500 Dia x .434

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 9

0

7

White Outdoor 603-0422

Shaft Mounting Bracket - LH

$

$

Not available

8

White Outdoor 603-0370

Pivot Link Bearing Ass'y

Variations

White Outdoor 603-0370-0637

LINK ASSY:PIVOT - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

White Outdoor 603-0370-0498

LINK ASSY:PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

White Outdoor 603-0313

Lift Shaft Ass'y
(Superseded to 603-0313-0637)

Variations

White Outdoor 603-0313-0637

SHAFT ASSY: LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 703-2621

Adjustable Deck Lift Link

Variations

White Outdoor 703-2621-0637

No Longer Available LINK LIFT ADJ DECK - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 703-2780

Lift Parallel Link

$

$

Not available

12

White Outdoor 603-0327

Handle Bearing Ass'y

Variations

White Outdoor 603-0327-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0327-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0327-0648

Handle Ass'y, Lift - TECH GRAY (0648)

$

$

Not available

$

$

13

White Outdoor 703-2772

Deck Height Adjustable Plate

Variations

White Outdoor 703-2772-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2772-0648

Plate, Deck Height Adjustment - TECH GRAY (0648)

$

$

Not available

$

$

14

White Outdoor 738-3150

Lift Handle Shoulder Screw

$

$

Not available

15

White Outdoor 712-3020

Top Lock Jam Nut 3/8-16
(Superseded to 912-3020)

$6.99

$

In Stock, Qty 10

0

16

White Outdoor 603-0423

Shaft Mounting Bracket - RH

$

$

Not available

17

White Outdoor 710-3083

Hex Cap Screw 5/16-18 x 1.375

$4.99

$

Usually ships in 3-6 days

0

18

White Outdoor 711-0773

Eye Bolt Adjustable Link

$

$

Not available

19

White Outdoor 738-0380

Shoulder Screw 3/8-16

$8.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-0206

Hex Nut 1/2-13

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-3151

Shoulder Screw 3/8-16 .56 x .27
(Superseded to 738-05008)

$8.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-3015

Jam Nut 5/8-11

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0158

Lock Washer 5/8

$4.99

$

In Stock, Qty 8

0

?25

White Outdoor 712-3016

Lock Hex Nut 5/8-11

$7.49

$

In Stock, Qty 14

0

26

White Outdoor 711-3266

Clevis Pin

$16.99

$

In Stock, Qty 18

0

27

White Outdoor 703-3407

Front Lift Bracket

Variations

White Outdoor 703-3407-0637

BRACKET-FRONT LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 603-0401

Lift Arm Ass'y
(Superseded to 603-0401-0637)

Variations

White Outdoor 603-0401-0637

ARM ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 738-0183

Shoulder Screw 3/8-16 .50 x .21
(Superseded to 938-0183)

$

$

Not available

30

White Outdoor 603-0257

Fork Lift Ass'y

Variations

White Outdoor 603-0257-0637

FORK ASSY-LIFT - POWDER BLACK (0637)

$100.99

$

In Stock, only 1 left!

0

$100.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-3011

Hex Cap Screw 3/8-16 x 2.25

$7.49

$

In Stock, Qty 20+

0

32

White Outdoor 747-3276

Lift Link Rod

$

$

Not available

33

White Outdoor 736-0300

Flat Washer .406 x .875

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 747-3267

Handle Arm

$

$

Not available

35

White Outdoor 750-3200

Spacer .448 ID x .688 OD

$

$

Not available

36

White Outdoor 712-0290

Lock Nut 7/16-14

$4.99

$

In Stock, Qty 8

0

37

White Outdoor 712-3009

Hex Center L-Nut 5/16-18

$7.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0431

Hex Screw 3/8-16 x 1.50

$5.49

$

Usually ships in 3-6 days

0

39

White Outdoor 737-0280

Grease Fitting

$8.49

$

In Stock, only 4 left!

0

?40

White Outdoor 747-3406

Front Mounting Rod Bracket

$

$

Not available
