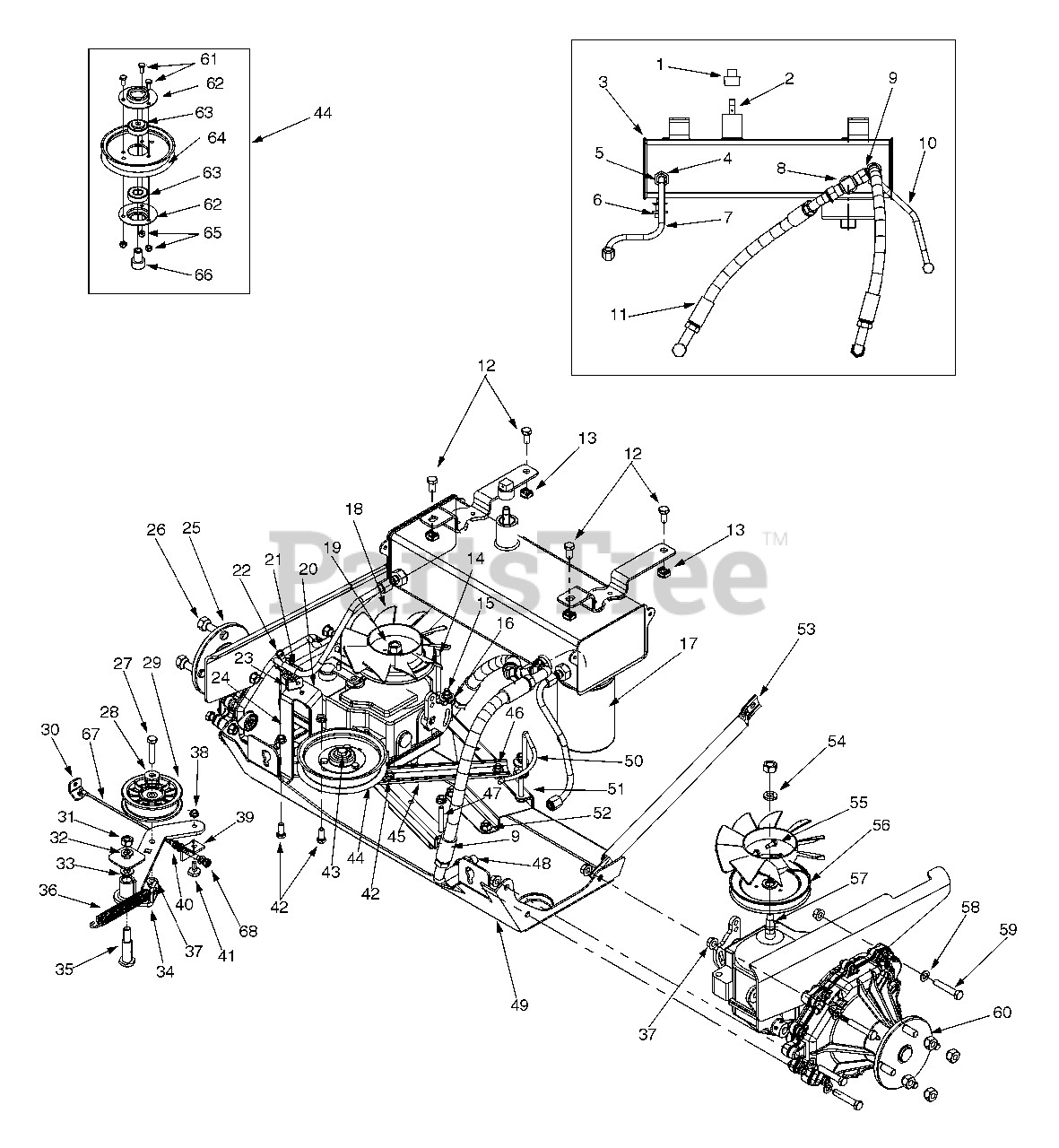

ZT-2150 - White Outdoor 48" Zero-Turn Mower Hydraulic Drive, Lines And Filter Parts Diagram

48" Zero-Turn Mower

Hydraulic Drive, Lines And Filter Parts Diagram

  • Title

1

MTD 737-3069

Pipe Plug

$

$

Not available

2

MTD 737-3070A

Pipe Dipstick

Note: NLA

$

$

Not available

3

MTD 603-0639

Hydraulic Tank Assembly

Note: NLA

Variations

MTD 603-0639-0637

No Longer Available TANK ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 727-3116

Connection Fitting

Note: NLA

$

$

Not available

5

MTD 921-0223

Seal

$

$

Not available

6

MTD 738-0940

Drain Plug

$7.49

$

Usually ships in 3-6 days

0

7

MTD 727-3120

Inlet Tube LH

Note: NLA

$

$

Not available

8

MTD 727-3155

Tee Fitting

Note: NLA

$

$

Not available

9

MTD 727-3154

Outlet Hose RH

$

$

Not available

10

MTD 727-3121

Inlet Tube RH

$

$

Not available

11

MTD 727-3153

Outlet Hose LH

$

$

Not available

12

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

13

MTD 712-0455

Retainer Nut 3/8-16

$

$

Not available

14

MTD 747-3360

Belt Retainer Rod RH

Note: NLA

$

$

Not available

15

MTD 710-0378

Hex Cap Screw 5/16-18 x 2.5

$4.49

$

In Stock, only 3 left!

0

16

MTD 736-3089

Flat Washer 5/16

$

$

Not available

17

MTD 723-3071

Filter Element

$68.99

$

In Stock, only 1 left!

0

18

MTD 931-1449A

Fan Blade

$32.99

$

In Stock, Qty 19

0

19

MTD 912-0333

Hex Nut 1/2-20

$

$

Not available

20

MTD 703-3168

Mounting Pulley Bracket

Note: NLA

$

$

Not available

21

MTD 756-0625

Roller Cable

$8.99

$

In Stock, Qty 20+

0

22

MTD 738-0924A

Hex Shoulder Screw 1/4-28 x .375

$6.49

$

In Stock, Qty 6

0

23

MTD 703-3169

Retainer Cable Bracket

Note: NLA

$

$

Not available

24

MTD 912-0117

Lock Nut 1/4-28

$2.49

$

In Stock, only 2 left!

0

25

MTD 618-3165

Complete Transmission Assembly LH

Note: NLA

$

$

Currently unavailable

26

MTD 712-3050

Lug Nut

$9.49

$

In Stock, Qty 20+

0

27

MTD 710-0347

Hex Cap Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

28

MTD 936-0256

Flat Washer .385 ID x 1.0 OD

$6.99

$

Usually ships in 3-6 days

0

29

MTD 756-0627D

Flat Idler Pulley 3.5 OD

$28.99

$

In Stock, Qty 20+

0

30

MTD 703-3174

Mounting Bracket Cable

Note: NLA

$

$

Not available

31

MTD 912-3019

Hex Nut 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 1 left!

0

32

MTD 936-0171

Lock Washer 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

33

MTD 936-3015

Flat Washer .469 ID x .875 OD

$3.99

$

In Stock, only 3 left!

0

34

MTD 603-0377A

Idler Arm Assembly

Note: NLA

Variations

MTD 603-0377A-0637

No Longer Available ARM ASM-I - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 603-0102

Shoulder Screw

$

$

Not available

36

MTD 932-0478

Extension Spring 6.12 Lg

$11.99

$

In Stock, Qty 17

0

37

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

38

MTD 912-0138

Hex Nut 1/4-26
(Superseded to 712-0138)

$

$

Not available

39

MTD 936-0329

Lock Washer 1/4

$4.49

$

In Stock, Qty 12

0

40

MTD 736-0342

Flat Washer .283 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

41

MTD 710-0428

Hex Cap Screw 1/4-28 x 1.25

$2.49

$

In Stock, only 1 left!

0

42

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

43

MTD 710-3011

Hex Cap Screw 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

44

MTD 903-0362

Idler Pulley Assembly 5.0"

$

$

Not available

45

MTD 703-2888

Idler Bracket

Note: NLA

Variations

MTD 703-2888-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

47

MTD 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.49

$

In Stock, Qty 13

0

48

MTD 01002606

Connection Fitting 1/2 x 3/8

$

$

Not available

49

MTD 603-0358B-0637

Skid Plate Assembly

$

$

Not available

50

MTD 747-3361

Belt Rod LH

Note: NLA

$

$

Not available

51

MTD 603-0450-0637

Support Pump Assembly

$

$

Not available

52

MTD 710-3178

Carriage Bolt 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

53

MTD 749-3040

Frame Strut

Variations

MTD 749-3040-0498

STRUT:FRM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-3040-0637

STRUT:FRM - POWDER BLACK (0637)

$

$

Not available

MTD 749-3040-0648

Strut, Frame - TECH GRAY (0648)

$

$

Not available

$

$

54

MTD 936-0921

Lock Washer 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-1189

Hex Washer Screw #12-24 x .625

$

$

Not available

56

MTD 756-0974

Transmission Pulley

$

$

Not available

57

MTD 732-0729

Wire Ring

$4.49

$

In Stock, only 4 left!

0

58

MTD 936-0185

Flat Washer
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

59

MTD 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

60

MTD 618-3164

Complete Tranmission Assembly RH

Note: NLA

$

$

Currently unavailable

61

MTD 710-0751

Hex Cap Screw 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

62

MTD 703-2907

Bearing Cup

$

$

Not available

63

MTD 941-0600

Ball Bearing

$23.99

$

In Stock, Qty 20+

0

64

MTD 756-3085

Idler Pulley 5.0"

$

$

Not available

65

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

66

MTD 750-3176

Idler Spacer

Note: NLA

$

$

Not available

67

MTD 746-3083

Declutching Cable

$

$

Not available

68

MTD 712-3007

Jam Nut 5/16-18

$6.49

$

In Stock, Qty 6

0
