ZT-22 (17AA5A7P790) - White Outdoor 50" Zero-Turn Mower (2004) Engine Accessories Parts Diagram

50" Zero-Turn Mower

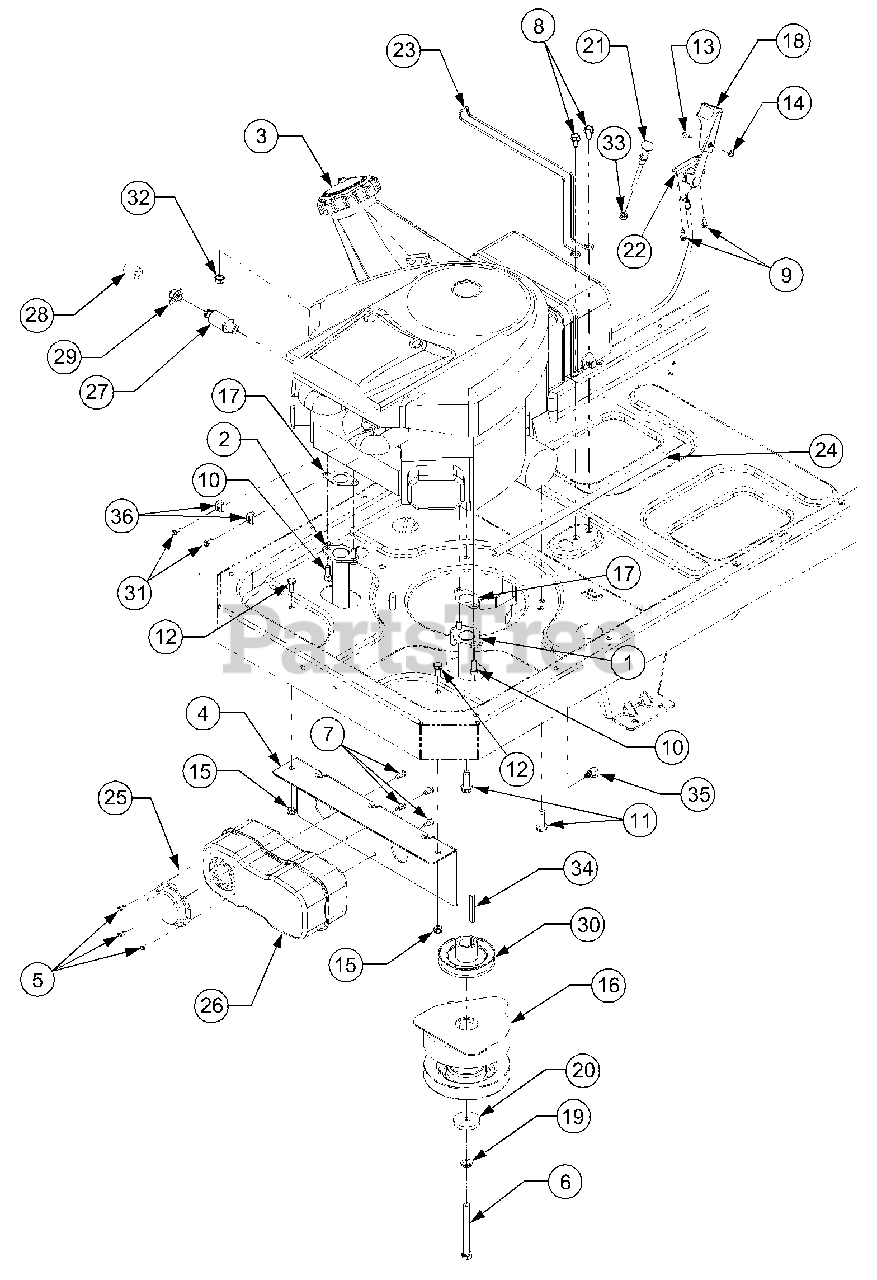

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 603-04162

Tube, Exhaust RH

$83.99

$

In Stock, only 1 left!

0

2

White Outdoor 603-04163

Tube, Exhaust LH

$74.99

$

Usually ships in 3-6 days

0

3

White Outdoor 651-04058

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$287.99

$

Usually ships in 3-6 days

0

3

White Outdoor 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

Note: Not shown

$33.99

$

In Stock, Qty 20+

0

4

White Outdoor 703-05441

Bracket, Muffler Mounting
(Superseded to 703-05441A)

$48.99

$

In Stock, Qty 6

0

5

White Outdoor 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 2 left!

0

7

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$5.99

$

In Stock, only 4 left!

0

10

White Outdoor 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.49

$

In Stock, Qty 10

0

14

White Outdoor 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 12

0

15

White Outdoor 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 717-04127

Clutch Assembly, Electric PTO
(Superseded to 917-04127)

$562.99

$

In Stock, only 1 left!

0

17

White Outdoor 721-0460

Gasket, Exhaust
(Superseded to 721P0460)

$6.49

$

Usually ships in 3-6 days

0

18

White Outdoor 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$18.99

$

In Stock, only 3 left!

0

19

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-04131

Washer, Flat, .438 x 1.75 x .25

$14.99

$

In Stock, Qty 5

0

21

White Outdoor 746-04143

Cable, Choke, 61Lg
(Superseded to 946-04143)

$59.99

$

Usually ships in 3-6 days

0

22

White Outdoor 746-1086

Cable, Throttle, 39.0 Lg
(Superseded to 946-1086)

$31.99

$

In Stock, Qty 6

0

23

White Outdoor 747-04228

Wire, Tank Mounting
(Superseded to 747-04228A)

$

$

Not available

24

White Outdoor 751-0535-16

Hose, Fuel Line 16 inches
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

24

White Outdoor 726-0205

Clamp, Hose

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

26

White Outdoor 751-0616A

Muffler
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

27

White Outdoor 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

28

White Outdoor 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

29

White Outdoor 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, Qty 8

0

30

White Outdoor 756-04102A

Pulley, Drive, 3.25 Dia.

$79.99

$

Usually ships in 3-6 days

0

31

White Outdoor 710-1237

Screw, Hex Wash. Hd. Tapp #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

32

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-0711

Nut, Hex Jam, 3/8-24 GR2

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 714-04037

Key, Square, 1/4 x 2.25

$

$

Not available

35

White Outdoor 726-3055

Clip, Cable Retainer

$6.49

$

In Stock, only 1 left!

0

36

White Outdoor BS-691024

Clamp, Casing

$3.99

$

In Stock, only 1 left!

0
