ZT 2246 (2691037-01) - Simplicity 46" Zero-Turn Mower, 22hp Briggs & Stratton 46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

46" Zero-Turn Mower, 22hp Briggs & Stratton

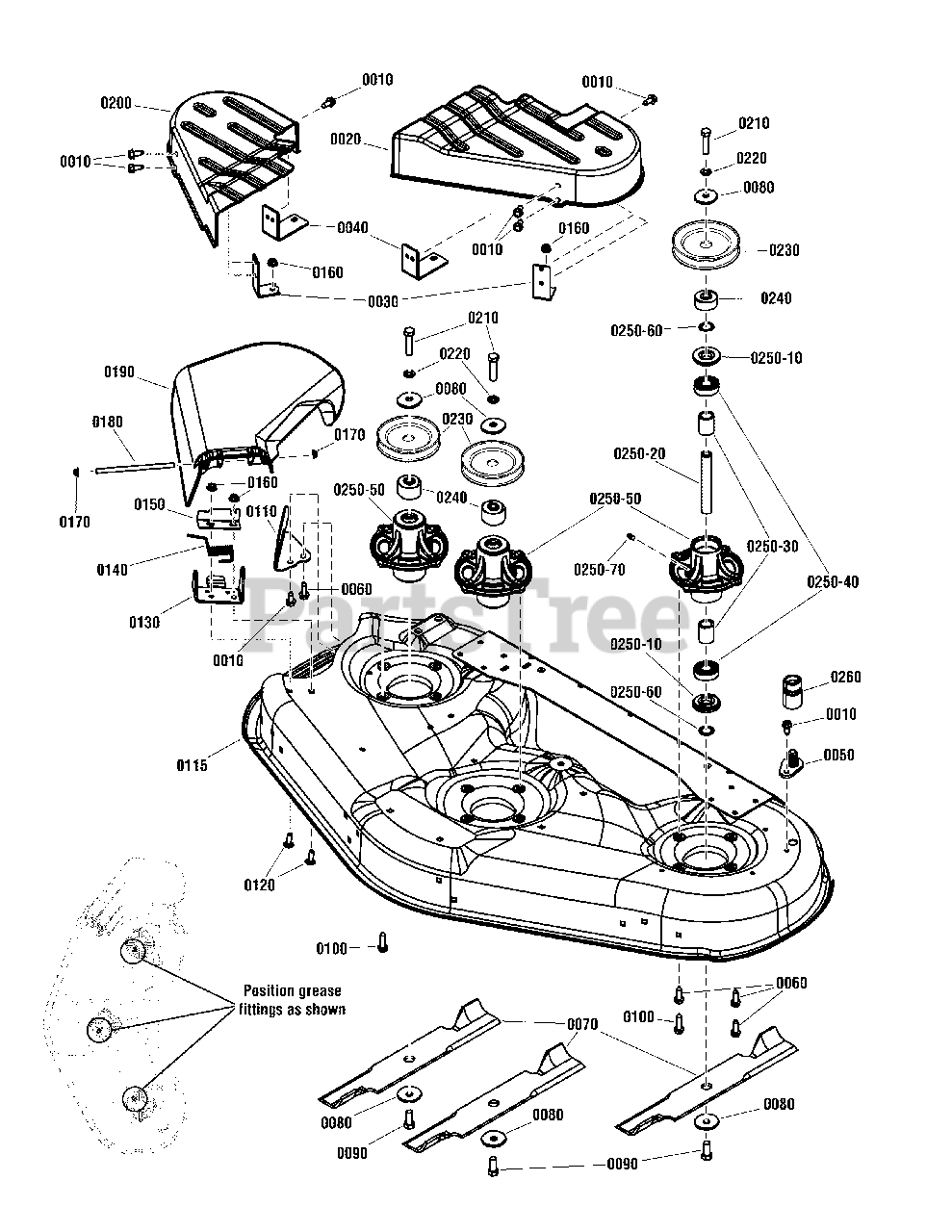

46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

Note: (Was 1664847 or 80002741)

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 7104697YP

COVER, Spindle, LH

$55.99

$

In Stock, only 1 left!

0

0030

Simplicity 7301134BMYP

BRACKET, Cover Mounting

$18.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7301133BMYP

BRACKET, Rear Deck Cover Support

$14.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1960373SM

SCREW, 5/16-18X1.0, Hex Washer Head, Taptite
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1737228AYP

BLADE, Mower, 16.13 Long
(Superseded to 1737228BZYP)

Note: (46" Deck)

$21.99

$

In Stock, Qty 20+

0

0080

Simplicity 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring

$7.49

$

In Stock, Qty 20+

0

0090

Simplicity 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5

$5.49

$

In Stock, Qty 5

0

0100

Simplicity 703167

SCREW, 5/16-18 x 1-1/4 Hex Washer Head Self-Tap

Note: (Was 7091151, 7091524 or 80003681)

$3.99

$

In Stock, Qty 13

0

0110

Simplicity 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

Usually ships in 2-12 days

0

0115

Simplicity 1687747YP

HOUSING, 46" Mower - Frame Hung
(Superseded to 1687625YP)

$564.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0130

Simplicity 1736365BMYP

PIVOT, Hinge

$12.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1736364YP

SPRING, Torsion

$8.49

$

In Stock, only 1 left!

0

0150

Simplicity 1737359BMYP

PLATE, Deflector Closeoff

$8.49

$

In Stock, only 3 left!

0

0160

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

Note: (Was 1931277 or 80002728)

$5.49

$

In Stock, Qty 20+

0

0170

Simplicity 7012542YP

NUT, 5/16 Push, BZ
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

0180

Simplicity 1736366YP

ROD, Deflector

$11.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1735447YP

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0200

Simplicity 7104696YP

COVER, Spindle, RH

$55.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

Note: (Was 1923027 or 80003715)

$3.99

$

In Stock, Qty 6

0

0220

Simplicity 1918199SM

LOCKWASHER, 7/16, Spring, Black
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

0230

Simplicity 1735686YP

PULLEY, 4.6 OD, 11 GA Split 46 Mower

$19.99

$

In Stock, only 2 left!

0

0240

Simplicity 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 1 left!

0

0250-10

Simplicity 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

0250-20

Simplicity 1735326YP

SHAFT, Spindle 20MM Dia., 134.60 MM Long
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0250-30

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 20+

0

0250-40

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0250-50

Simplicity 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

Note: (Includes Ref. No. 0250-70)

$43.99

$

In Stock, only 3 left!

0

0250-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0250-70

Simplicity 1704314SM

LUBE FITTING, .250 Drive Type, Ball Check
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0260

Simplicity 1736898YP

CONNECTOR, Washout Port
(Superseded to 1756246YP)

$15.99

$

In Stock, Qty 5

0
