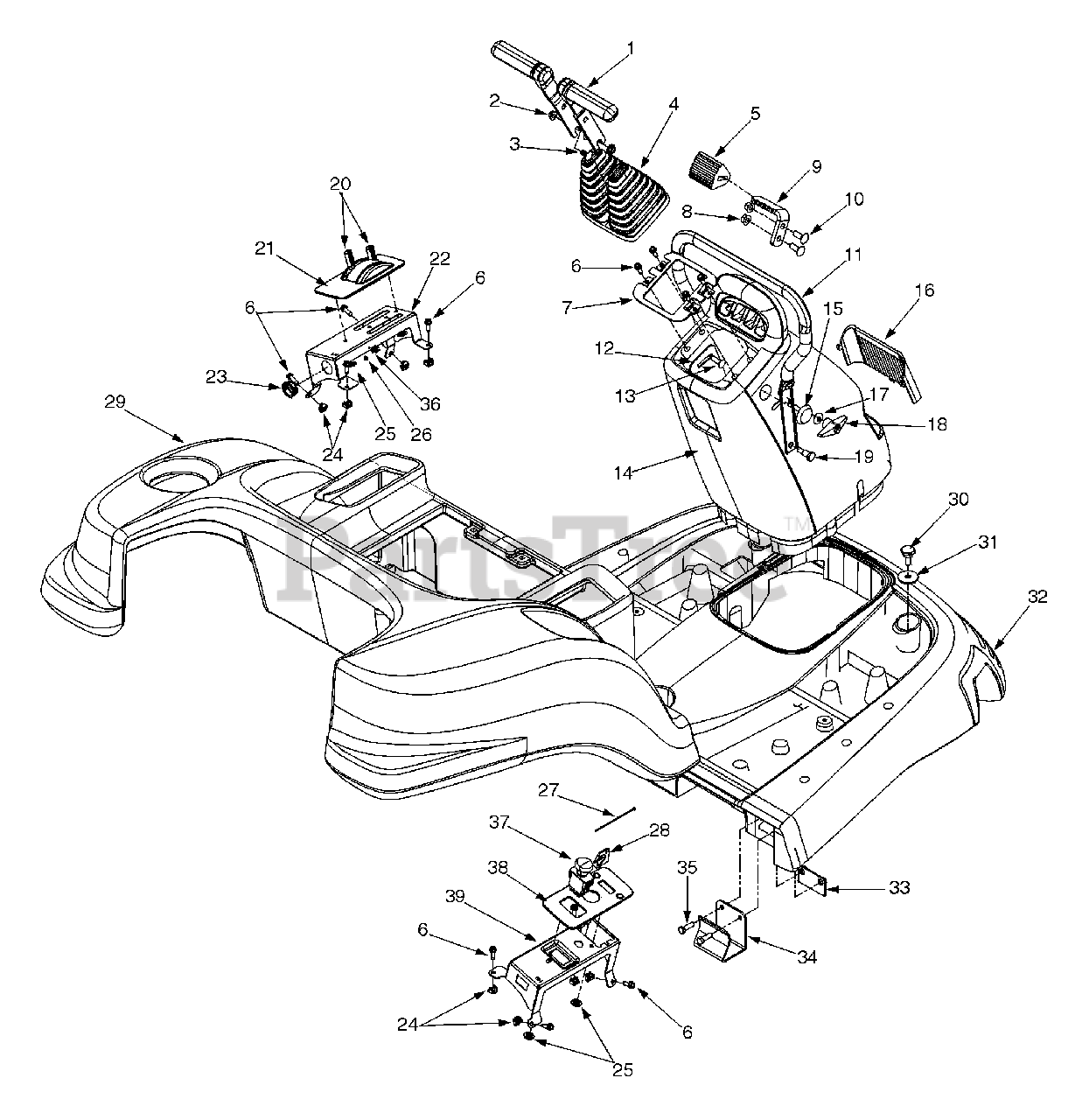

ZT-2250 - White Outdoor 54" Zero-Turn Mower Body Cover and Console Parts Diagram

54" Zero-Turn Mower

Body Cover and Console Parts Diagram

  • Title

1

MTD 931-3263

Control Handle

$

$

Not available

2

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-0451

Carriage Bolt 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 731-3185

Bellow

Note: NLA

$

$

Not available

5

MTD 735-0251

Foot Pad

$

$

Not available

6

MTD 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 703-2648

Bellow Retainer Bracket

Note: NLA

Variations

MTD 703-2648-0637

No Longer Available BRKT:RET:B - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

9

MTD 703-2807B

Foot Pad Mounting Bracket

Note: NLA

Variations

MTD 703-2807B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

MTD 749-3081

Cruise Control Tube

Note: NLA

Variations

MTD 749-3081-0637

No Longer Available TUBE-CRUIS - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 703-3288

Control Tube Mounting Bracket

Note: NLA

Variations

MTD 703-3288-0637

No Longer Available BRACKET-CO - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 710-0276

Carriage Screw 5/16-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-3283

Console

Note: NLA

$

$

Not available

15

MTD 726-0289

Plug

$

$

Not available

16

MTD 731-3128A

Lens

$

$

Not available

17

MTD 736-0242

Bell Washer .340 ID x .672 OD

$3.99

$

In Stock, Qty 20+

0

18

MTD 720-04072A

Wingnut Knob

$6.49

$

In Stock, Qty 20+

0

19

MTD 738-0754

Shoulder Screw

$3.99

$

In Stock, only 2 left!

0

20

MTD 720-0302

Knob

Note: NLA

$

$

Not available

21

MTD 731-3195A

LH Control Panel Cover

Note: NLA

$

$

Not available

22

MTD 603-0424

LH Control Panel Assembly

Note: NLA

Variations

MTD 603-0424-0637

No Longer Available PANEL ASM: - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 723-3042

Snap Bushing

$3.99

$

In Stock, only 1 left!

0

24

MTD 712-0453

Retainer Nut 1/4-20

$

$

Not available

25

MTD 926-3047

Push Nut

$3.99

$

In Stock, only 4 left!

0

26

MTD 728-0117

Pop Rivet

$3.49

$

Usually ships in 3-6 days

0

27

MTD 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

28

MTD 725-1341B

Key

$9.99

$

In Stock, only 2 left!

0

29

MTD 731-3309

Rear Body

Note: NLA

$

$

Not available

30

MTD 738-3163A

Shoulder Screw 3/8-16

Note: NLA

$

$

Not available

31

MTD 936-3039

Flat Washer .406 ID x 1.5 OD
(Superseded to 736-3039)

$

$

Not available

32

MTD 731-3318

Floor Body

Note: NLA

$

$

Not available

33

MTD 603-0578

Body Plate Assembly

Note: NLA

$

$

Not available

34

MTD 703-3474

Body Clip

Note: NLA

Variations

MTD 703-3474-0637

No Longer Available CLIP-BODY - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 17

0

36

MTD 932-0830

Spring Clip

$

$

Not available

37

MTD 925-1716

Electric PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

38

MTD 731-3196A

RH Control Panel Cover

$

$

Not available

39

MTD 603-0425

RH Control Panel Assembly

Note: NLA

Variations

MTD 603-0425-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

$

$
