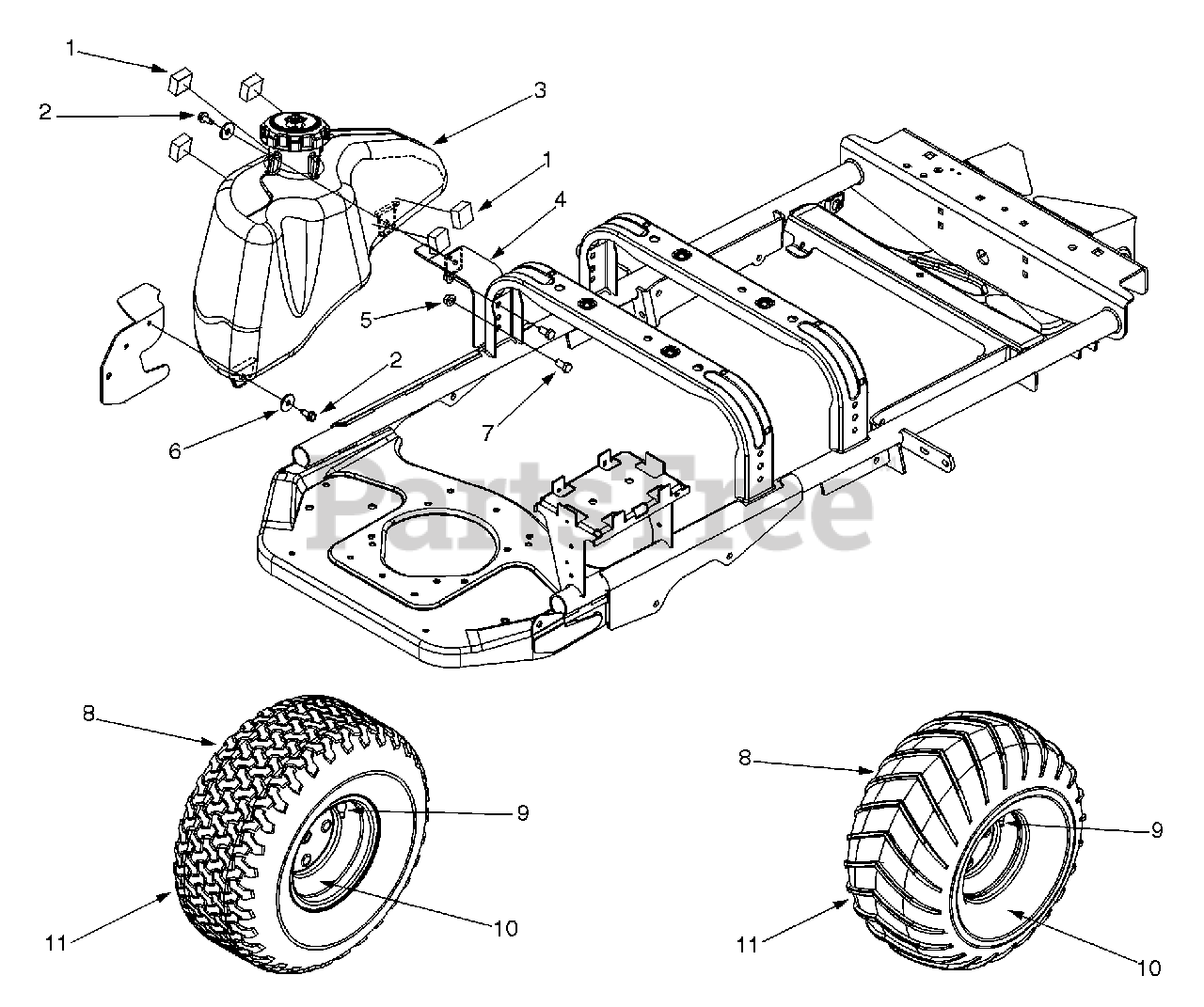

ZT-2250 - White Outdoor 54" Zero-Turn Mower Fuel Tank, Wheels, Rear Parts Diagram

54" Zero-Turn Mower

Fuel Tank, Wheels, Rear Parts Diagram

  • Title

1

MTD 722-3020

Foam 1.25 x .62

$4.49

$

Usually ships in 3-6 days

0

2

MTD 710-1260A

Hex Washer Screw 5/16-18.0 x .75

$3.99

$

In Stock, Qty 20+

0

3

MTD 651-3004

Fuel Tank 4.0 gal

$

$

Not available

4

MTD 703-3490

Fuel Tank Mounting Bracket

Note: NLA

Variations

703-3490-0637

MTD 703-3490-0637

No Longer Available BRACKET-FU - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 912-0431

Flange Lock Nut 3/8-16

$5.49

$

In Stock, Qty 20+

0

6

MTD 936-0231

Flat Washer .344 x 1.125
(Superseded to 736-0231)

$

$

Not available

7

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, only 4 left!

0

8

MTD 734-1596

Tire 20 x 8 - 8

Note: (For model ZT-1850)

Variations

734-1596-0902

MTD 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$93.99

$

Usually ships in 3-6 days

0

734-1596-0905

MTD 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$105.99

$

In Stock, Qty 6

0

734-1596-0906

MTD 734-1596-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$105.99

$

In Stock, Qty 6

0

734-1596-0901

MTD 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

734-1596-0904

MTD 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$212.99

$

Usually ships in 3-6 days

0

8

MTD 734-3163

Tire 22 x 11-8

Note: NLA (For models ZT-2150 & ZT-2250)

$

$

Not available

9

MTD 934-0246A

Rim Ass'y 8 x 6.19

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

934-0246A-0499

MTD 934-0246A-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$142.99

$

Usually ships in 3-6 days

0

934-0246A-0637

MTD 934-0246A-0637

RIM ASM-REAR - POWDER BLACK (0637)

$142.99

$

Usually ships in 3-6 days

0

934-0246A-0662

MTD 934-0246A-0662

Rear Rim Assembly, Oyster Grey - OYSTER GRAY (0662)

$142.99

$

Usually ships in 3-6 days

0

934-0246A-0729

MTD 934-0246A-0729

RIM ASM-REAR - STORM GRAY (0729)

$142.99

$

Usually ships in 3-6 days

0

934-0246A-4028

MTD 934-0246A-4028

RIM ASM-REAR - SEARS YELLOW (4028)

$142.99

$

Usually ships in 3-6 days

0

934-0246A-4042

MTD 934-0246A-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$142.99

$

Usually ships in 3-6 days

0

$142.99

$

Usually ships in 3-6 days

0

10

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

11

MTD 634-3050

Wheel Comp 20 x 8-8

Note: (For model ZT-1850)

Variations

634-3050-0911

MTD 634-3050-0911

No Longer Available RIM ASM-TI - Carlisle Gray (0911)

$

$

Not available

634-3050-0931

MTD 634-3050-0931

No Longer Available 0911 ASM - Carlisle Beige (0931)

$

$

Not available

634-3050-0941

MTD 634-3050-0941

RIM ASM-TIRE & YE - Carlisle Yellow (0941)

$

$

Not available

$

$

11

MTD 634-3051

Wheel Comp 22 x 11-8 RH

Note: (For models ZT-2150 & ZT-2250)

Variations

634-3051-0911

MTD 634-3051-0911

No Longer Available RIM ASM-TIRE & RH - Carlisle Gray (0911)

$

$

Not available

634-3051-0931

MTD 634-3051-0931

No Longer Available RIM ASM-TI - Carlisle Beige (0931)

$

$

Not available

$

$

11

MTD 634-3052

Wheel Comp 22 x 11-8 LH

Note: NLA (For models ZT-2150 & ZT-2250)

Variations

634-3052-0911

MTD 634-3052-0911

No Longer Available RIM ASM-TI - Carlisle Gray (0911)

$

$

Not available

634-3052-0931

MTD 634-3052-0931

No Longer Available RIM ASM-TI - Carlisle Beige (0931)

$

$

Not available

$

$
