ZT 2300 (2691170-00) - Massey Ferguson 48" Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton 48" Mower Deck - Clutch & Support Group Parts Diagram

48" Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

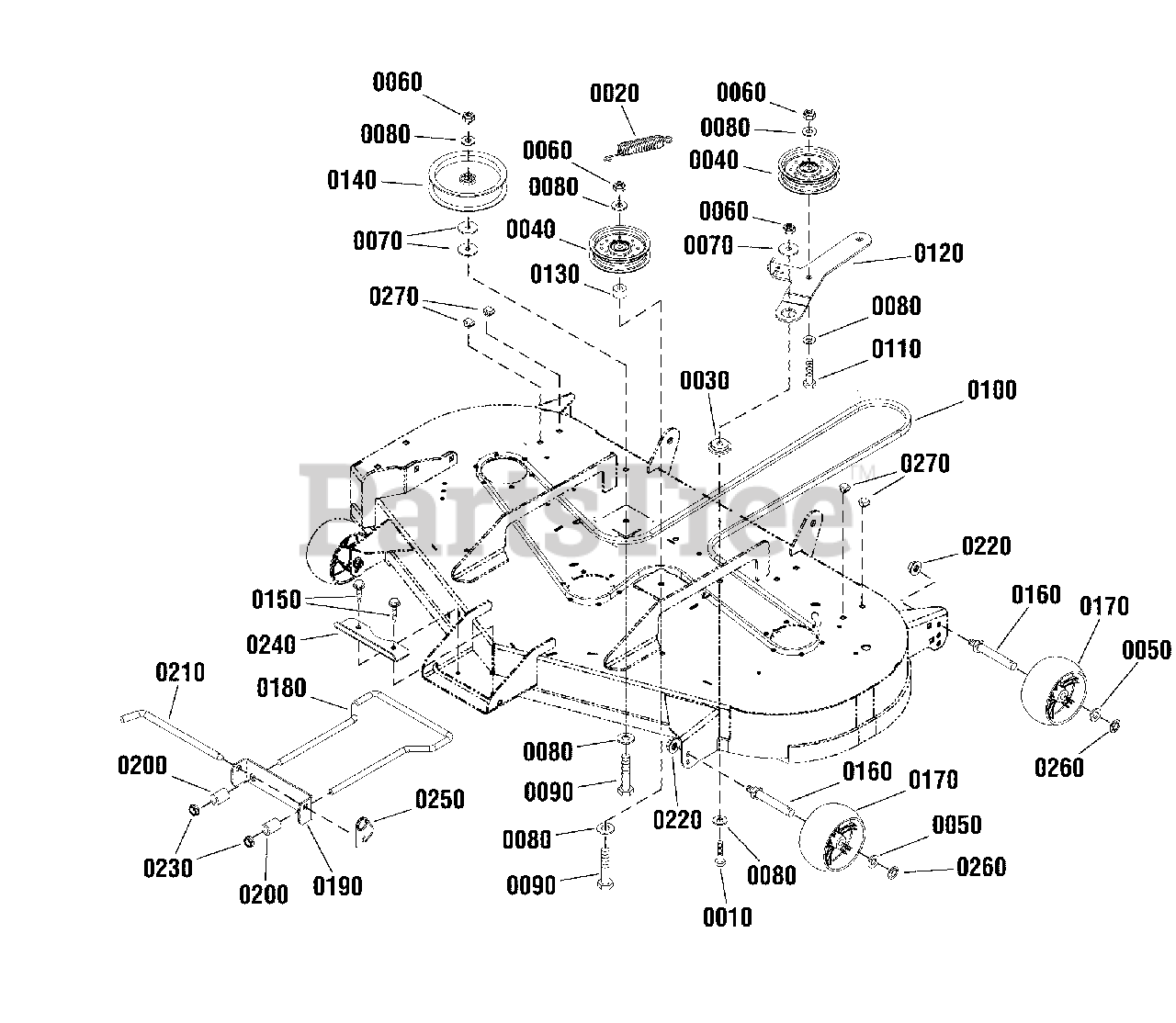

48" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 672601MA

CAPSCREW, Hex Head, 3/8-16 X 1 1/4, GR 5

$87.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1715772SM

SPRING, Extension

$13.99

$

In Stock, Qty 5

0

0030

Simplicity 1714255SM

SPACER

$6.49

$

In Stock, Qty 9

0

0040

Simplicity 1757823YP

PULLEY, Idler

$22.99

$

In Stock, only 4 left!

0

0050

Simplicity 703853

WASHER, Special

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 71046MA

NUT, Hex, Nylock, 3/8-16, GR5

$4.49

$

Usually ships in 2-12 days

0

0070

Simplicity 703591

WASHER, Flat

$5.49

$

In Stock, Qty 8

0

0080

Simplicity 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703873

CAPSCREW, Hex Head, 3/8-16 X 2 1/4, GR 5

$4.49

$

In Stock, Qty 6

0

0100

Simplicity 1757901YP

V-BELT, 48"

$78.99

$

In Stock, Qty 6

0

0110

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

In Stock, Qty 12

0

0120

Simplicity 1757524BMYP

LEVER, Idler

$75.99

$

In Stock, only 1 left!

0

0130

Simplicity 5100334SM

SPACER

$7.49

$

In Stock, only 1 left!

0

0140

Simplicity 7034422SM

PULLEY, Flat, 5"

$38.99

$

In Stock, Qty 13

0

0150

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 094025MA

BOLT, Gage Wheel

$11.99

$

In Stock, only 2 left!

0

0170

Simplicity 1736896YP

WHEEL, Gage

$16.99

$

In Stock, only 3 left!

0

0180

Simplicity 1730097SM

ROD, Bail

$43.99

$

In Stock, only 1 left!

0

0190

Simplicity 1730221BMYP

HANGER, Front

$

$

Not available

0200

Simplicity 1679166SM

SPACER

$7.49

$

In Stock, Qty 10

0

0210

Simplicity 1731414SM

ROD, Latch

$14.99

$

In Stock, only 3 left!

0

0220

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, only 1 left!

0

0240

Simplicity 1757501BMYP

PLATE, Hitch Rod

$11.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703852

PIN, Retainer

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 705437

NUT, Push, 1/2

$4.49

$

In Stock, only 2 left!

0

0270

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, Qty 6

0
