ZT 2324 (2691098-00) - Massey Ferguson 46" Zero-Turn Mower, 24hp Briggs & Stratton 46" Mower Deck - Clutch & Support Group Parts Diagram

46" Zero-Turn Mower, 24hp Briggs & Stratton

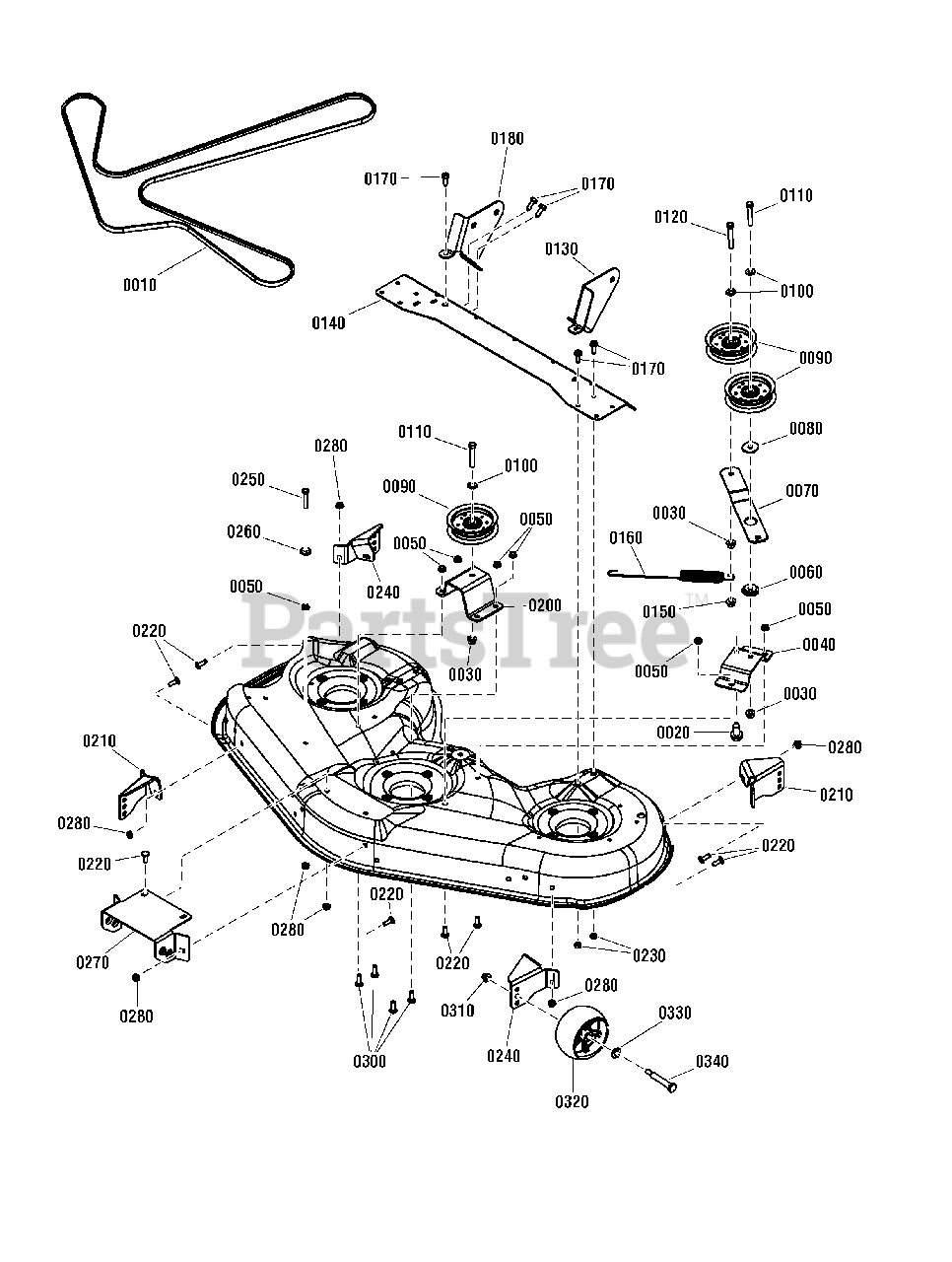

46" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 7103788YP

BELT, RZT, 46", 143.35 EL, A-WEDGE

$112.99

$

In Stock, only 1 left!

0

0020

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703333

NUT, Hex Flange Whiz Lock, 3/8-16 Black

$4.99

$

In Stock, Qty 12

0

0040

Simplicity 1736437BMYP

BRACKET, Front Idler Mount

$22.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703330

NUT, Hex Flange Whiz Lock, 5/16-18 Black

$4.99

$

In Stock, Qty 7

0

0060

Simplicity 1714255SM

SPACER, 0.406 ID, 1.50 OD, 0.350 Thick PM

$6.99

$

In Stock, Qty 16

0

0070

Simplicity 7301100BMYP

ARM, Idler, 46 / 52 RZT

$

$

Not available

0080

Simplicity 7091331SM

WASHER, .406X1.5X.120, Faceted, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0090

Simplicity 1736540YP

PULLEY, Idler 46 & 52" Mowers

$36.99

$

In Stock, Qty 14

0

0100

Simplicity 703878

WASHER, 0.375 (0.41 ID X 0.87O DX .08 Thick) Black

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1922130SM

CAPSCREW, 3/8-16X2.250, Hex Head, G5 Black
(Superseded to 703872)

$4.99

$

In Stock, Qty 15

0

0120

Simplicity 1933685SM

CAPSCREW, 3/8-16X2.500, Hex Head, G5 FT Black

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 1736397BMYP

BRACKET, Rear Mower Pick Up, ZT, LH

$19.99

$

In Stock, only 2 left!

0

0140

Simplicity 1736070BMYP

SUPPORT, Rear Cross

$87.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1960339SM

NUT, 3/8-16, Hex Flange, Black
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Simplicity 1737415YP

SPRING, Extension, PTO

$13.99

$

In Stock, only 4 left!

0

0170

Simplicity 1960373SM

SCREW, 5/16-18X1.00, Hex Washer Head Tap Tite, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 1736398BMYP

BRACKET, Rear Mower Pick Up, ZT, RH

$19.99

$

In Stock, only 2 left!

0

0200

Simplicity 7301152BMYP

BRACKET, Rear Fixed Idler, 46"

$

$

Not available

0210

Simplicity 1736075BMYP

BRACKET, Gauge Wheel, LH

$14.99

$

In Stock, only 2 left!

0

0220

Simplicity 1931334SM

BOLT, 5/16-18X0.875, Carriage, G5 Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 14

0

0230

Simplicity 703164

NUT, 5/16-18 Hex Cap Lock, GR5 YZ

$3.49

$

In Stock, Qty 20+

0

0240

Simplicity 1736074BMYP

BRACKET, Gauge Wheel, RH

$16.99

$

In Stock, only 2 left!

0

0250

Simplicity 1922127SM

CAPSCREW, 5/16-18X1.750, Hex Head, G5 Black
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

0260

Simplicity 703298

WASHER, 0.312 (0.34 IDX1.00 OD X .13 THK) Black

$4.49

$

In Stock, Qty 15

0

0270

Simplicity 1736071BMYP

HITCH, Front, 46 / 52 Mower

$31.99

$

In Stock, only 2 left!

0

0280

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

0300

Simplicity 1931335SM

BOLT, 5/16-18X1.00, Carriage, G5 Black
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

0310

Simplicity 703158

NUT, 3/8-16, Hex Flange, ESNA Black
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1736896YP

WHEEL, Gauge Black Poly 5" DIA

$17.99

$

In Stock, Qty 13

0

0330

Simplicity 703853

WASHER, 0.50 (0.51 ID X 1.00 OD X .10 THK) Black

$5.49

$

In Stock, Qty 20+

0

0340

Simplicity 1736539YP

BOLT, 3/8-16X3.41, .750 THRD, Shoulder

$8.99

$

In Stock, Qty 20+

0
