ZT 2352 T - Simplicity Colt 52" Zero-Turn Mower, 23hp Kohler Mower Housing, Cover, Spindle & Blade Group (7090mcsb) Parts Diagram

Colt 52" Zero-Turn Mower, 23hp Kohler

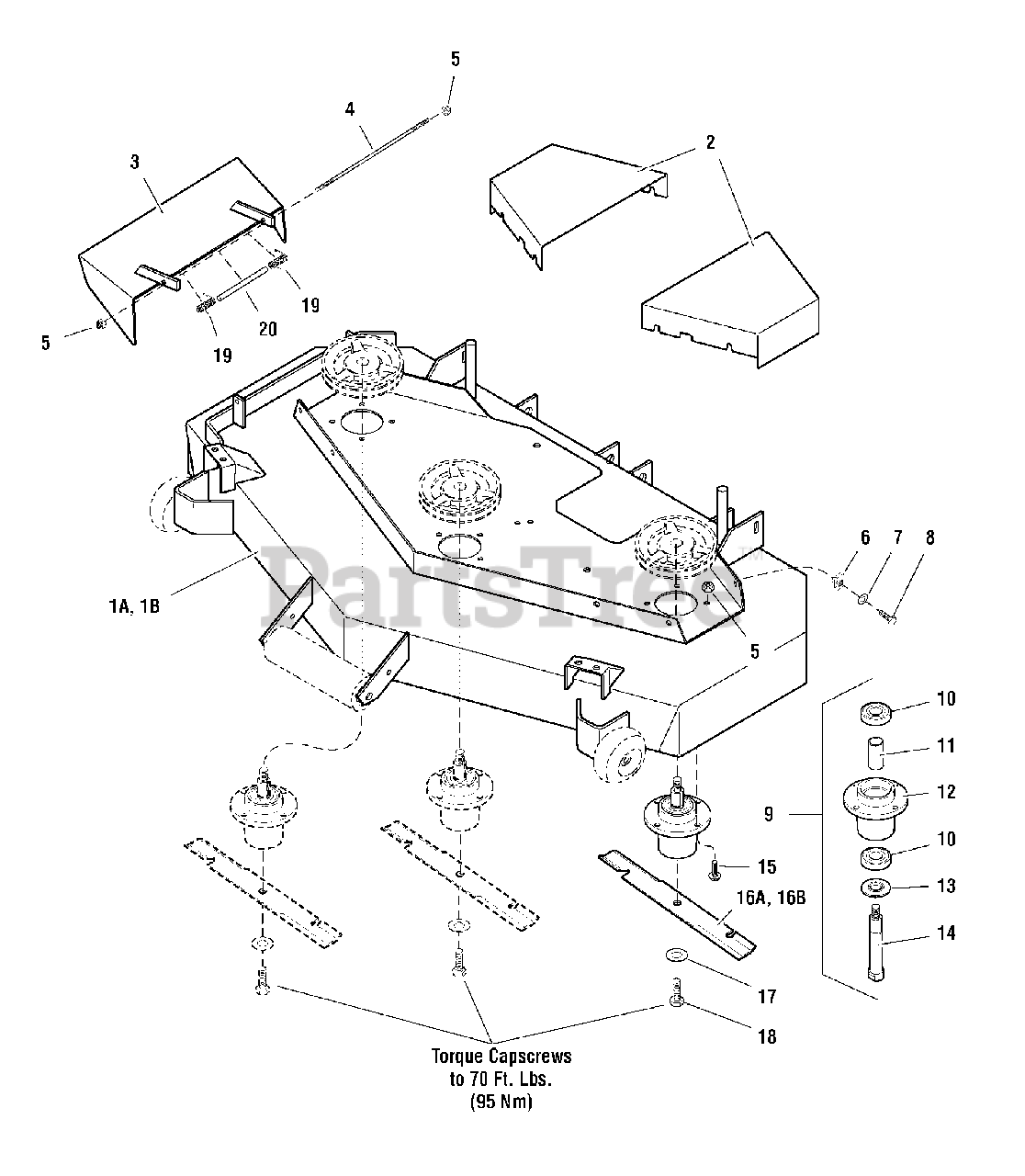

Mower Housing, Cover, Spindle & Blade Group (7090mcsb) Parts Diagram

  • Title

1a

Simplicity 5047855CSM

MOWER DECK, 48"

$1515.99

$

Usually ships in 2-12 days

0

1b

Simplicity 5047856CSM

MOWER DECK, 52"

$1652.99

$

Usually ships in 2-12 days

0

2

Simplicity 5047129CSM

MOWER DECK GUARD

$128.99

$

In Stock, only 1 left!

0

3

Simplicity 5046445CSM

DISCHARGE CHUTE

$128.99

$

Usually ships in 2-12 days

0

4

Simplicity 5042555SM

ROD

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

6

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 10

0

7

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

9

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

10

Simplicity 5023330SM

BEARING, Roller

$23.99

$

In Stock, only 3 left!

0

11

Simplicity 5061099SM

SPACER, 1.00 x 1.25 x 1.75

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 5061097SM

HOUSING, SPINDLE
(Superseded to 5102993YP)

$90.99

$

In Stock, only 1 left!

0

13

Simplicity 5049793SM

TRASH SHIELD

$16.99

$

In Stock, only 2 left!

0

14

Simplicity 5061098SM

SPINDLE SHAFT

$77.99

$

In Stock, Qty 5

0

15

Simplicity 5023156SM

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

16a

Simplicity 5020843ASM

MOWER BLADE, 16-1/4" (48" Deck)

$24.99

$

Usually ships in 2-12 days

0

16b

Simplicity 5021227ASM

MOWER BLADE, 18" (52" Deck)

$25.99

$

In Stock, Qty 6

0

17

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 18

0

18

Simplicity 5025320X14SM

CAPSCREW, Hex Hd, 5/8-11 x 1-3/4
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1723938SM

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

20

Simplicity 5045637SM

SPRING SPACER

$11.99

$

Usually ships in 2-12 days

0
