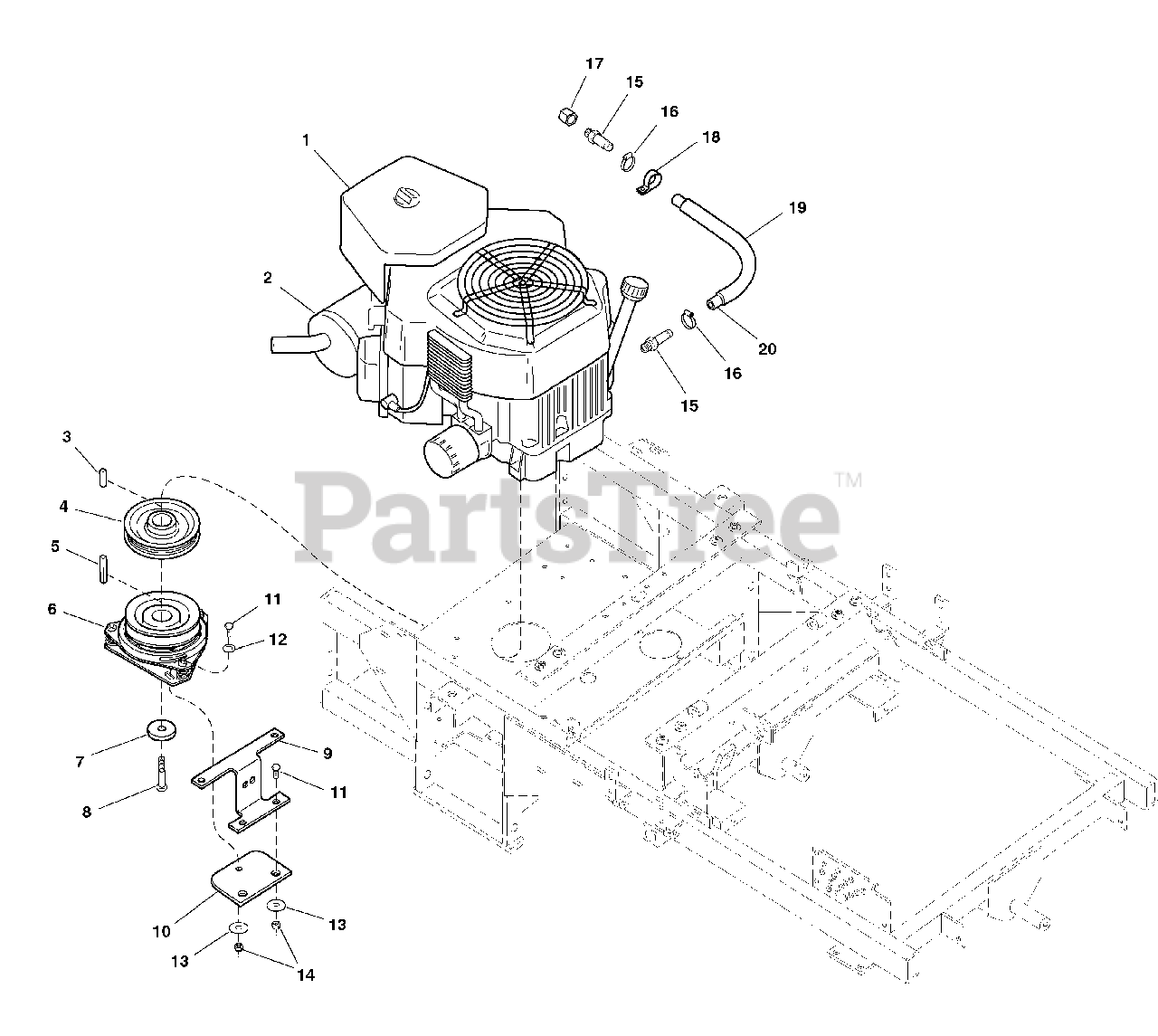

ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Engine Group - PTO (7010epg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

Engine Group - PTO (7010epg) Parts Diagram

  • Title

1

Simplicity 5022312

ENGINE, 23 HP Kohler

$

$

Not available

2

Simplicity 5022161SM

MUFFLER, Kohler

$522.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050407X8SM

KEY, 1/4 x 1

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 5022154SM

PULLEY, Crankshaft

$199.99

$

Usually ships in 2-12 days

0

5

Simplicity 5050407X3SM

KEY, 1/4 x 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022334SM

ELECTRIC CLUTCH

$766.99

$

Usually ships in 2-12 days

0

7

Simplicity 5045475SM

RETAINER, Clutch

$15.99

$

Usually ships in 2-12 days

0

8

Simplicity 5045938SM

CRANKSHAFT BOLT, 7/16 x 2-1/4

$

$

Not available

9

Simplicity 1845474

ANCHOR, Clutch
(Superseded to 5045474E)

$

$

Not available

10

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

11

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 5025165SM

WASHER, Fender, 5/16

$4.49

$

In Stock, Qty 14

0

14

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$16.99

$

In Stock, only 3 left!

0

16

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 5021466SM

CAP, 3/8NPT

$6.99

$

In Stock, only 2 left!

0

18

Simplicity 5021500SM

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 505086214

WIRE LOOM, Drain Hose Cover

$

$

Not available

20

Simplicity 5050857X16

HOSE, Oil Drain
(Superseded to 5050857X16SM)

$12.99

$

Usually ships in 2-12 days

0
