ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Seat, Floor & Control Cover Group (7010sfcg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

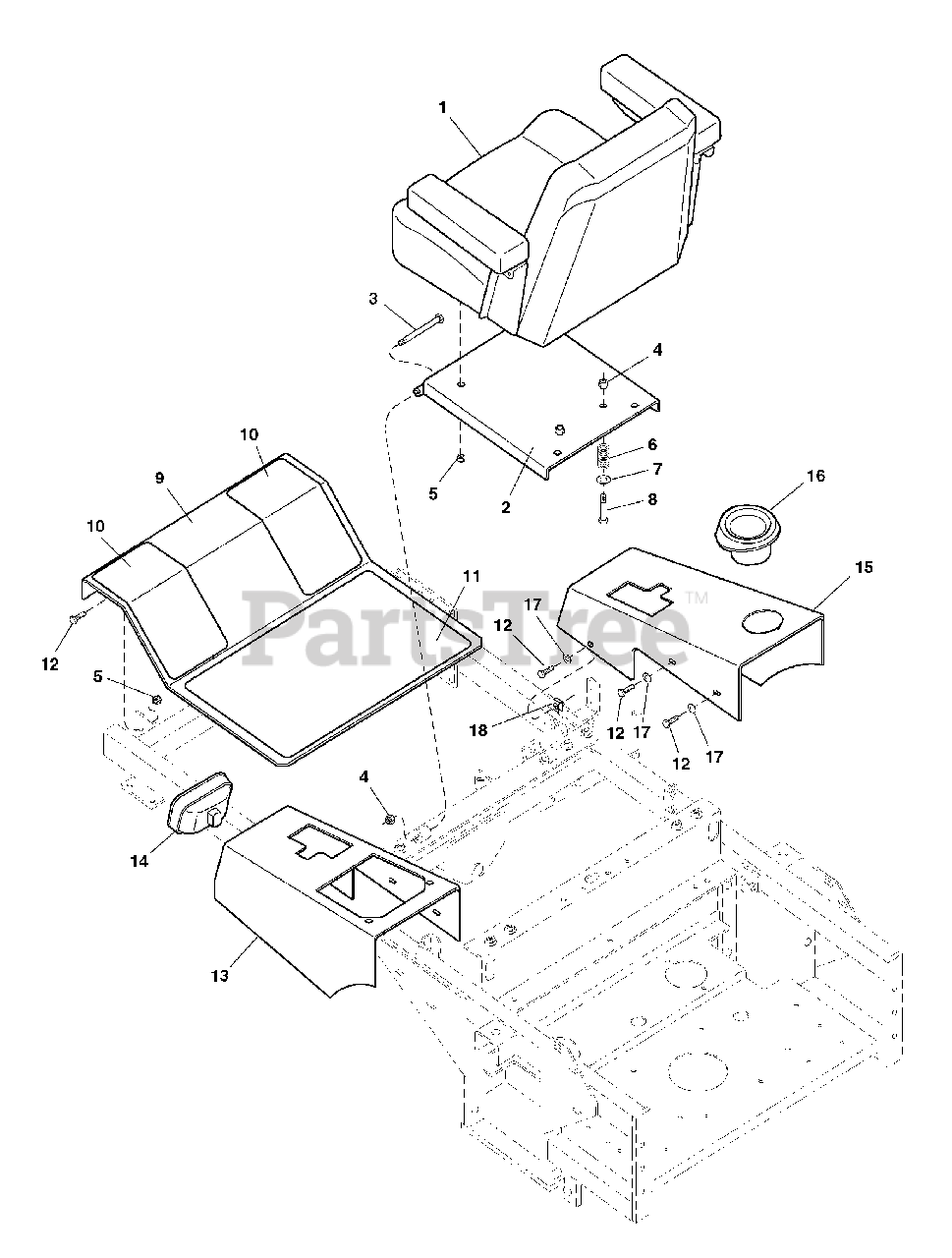

Seat, Floor & Control Cover Group (7010sfcg) Parts Diagram

  • Title

1

Simplicity 5022363SM

SEAT, Brown (complete)

$

$

Not available

*

Simplicity 5022363X1SM

CUSHION, Seat, Brown

$

$

Not available

*

Simplicity 5022197X2SM

CUSHION, Back, Brown

$205.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022440

ARM REST, Black
(Superseded to 5022185)

$70.99

$

Usually ships in 2-12 days

0

2

Simplicity 1845156

PLATE, Seat Mount
(Superseded to 5045156E)

$

$

Not available

3

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

5

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

6

Simplicity 5021102SM

SPRING, Compression

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

8

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 1845333

FLOOR
(Superseded to 5045333E)

$

$

Not available

10

Simplicity 5045915SM

SAFETY WALK
(Superseded to 5101005SM)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper 5044873SM

SAFETY WALK

$24.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 4 left!

0

13

Simplicity 1845599

CONTROL COVER, LH
(Superseded to 5045599E)

$

$

Not available

14

Simplicity 1719230SM

HEADLIGHT ASSEMBLY, Complete

$48.99

$

Usually ships in 2-12 days

0

*

Simplicity 1719230SM

Headlight

$48.99

$

Usually ships in 2-12 days

0

*

Simplicity 1719227SM

Bezel

$19.99

$

Usually ships in 2-12 days

0

15

Simplicity 1845600

CONTROL COVER, RH
(Superseded to 5045600E)

$

$

Not available

16

Simplicity 1719392SM

CUP HOLDER

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 10

0
