ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton 50" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

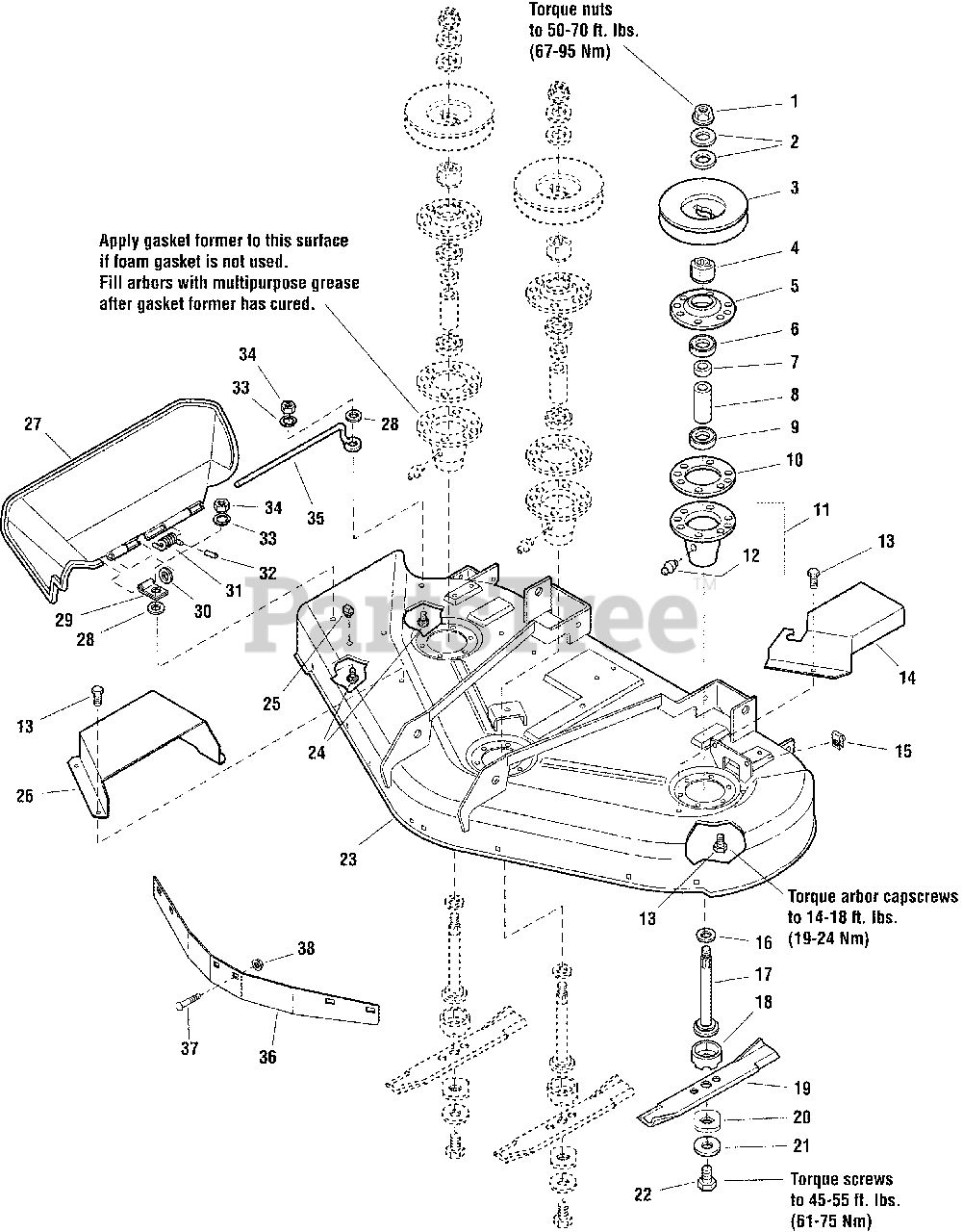

50" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Simplicity 1714419

NUT, HEX FLANGE, 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 19

0

2

Simplicity 1713675

WASHER, BELLEVILLE, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161

PULLEY
(Superseded to 1713161SM)

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713613

HUB
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

5

Simplicity 1655729A

COVER, ARBOR HOUSING
(Superseded to 1655729ASM)

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 2108202

BEARING, BALL, 3/4 X 1-3/4 X 5/8
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724

SPACER, 21/32 X 3/4 X 5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1715723

SPACER, 11/16 X 5/32 X 2-11/16
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897

BEARING, BALL, 11/16 X 1-9/16 X 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335

SEAL, FOAM
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338

ARBOR HOUSING ASSEMBLY
(Superseded to 1713338ASM)

Note: (Includes Ref No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314

FITTING, GREASE
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

BOLT TAPTITE, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5400403D

COVER, ARBOR, LH
(Superseded to 5400403DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022308

BODY CLIP, 5/16-18
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Simplicity 1713619

WASHER, 9/16, BLACK
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1713609

SHAFT, ARBOR
(Superseded to 1713609SM)

$30.99

$

In Stock, Qty 9

0

18

Simplicity 1713196

SHIELD, GRASS, LOWER
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

19

Simplicity 1708229A

BLADE, MOWER, 18-1/8
(Superseded to 1726453YP)

$24.99

$

In Stock, Qty 20+

0

20

Simplicity 1713089

WASHER, HEX, 11/16 X 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1656916

WASHER, SPRING, 15/32, BLACK
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

22

Simplicity 2923471

BOLT, 7/16-14 X 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5403498D

WELD, MOWER DECK, 50", 400Z MODELS

Note: (includes decals)

$

$

Not available

24

Simplicity 1931318

CARRIAGE BOLT, 1/4-20 X 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1705115

PLUG, HOLE
(Superseded to 1705115SM)

$4.49

$

In Stock, Qty 6

0

26

Simplicity 5401091D

COVER, ARBOR, RH
(Superseded to 5401091DYP)

$51.99

$

Usually ships in 2-12 days

0

27

Simplicity 1705449

DEFLECTOR, PLASTIC
(Superseded to 1705449SM)

$122.99

$

In Stock, Qty 13

0

28

Simplicity 1960353

WASHER, 1/4, BLACK
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1919326

WASHER, 5/16, BLACK
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

31

Simplicity 1723938

SPRING
(Superseded to 1723938SM)

$6.49

$

Usually ships in 2-12 days

0

32

Simplicity 1723323

VINYL CAP
(Superseded to 1723323SM)

$4.99

$

In Stock, Qty 6

0

33

Simplicity 1916964

WASHER, LOCK, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

34

Simplicity 1916622

NUT, HEX, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

35

Simplicity 1706709

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 7

0

36

Simplicity 1734181A

BAFFLE - FRONT 44/50 - BLACK
(Superseded to 1734181ASM)

$43.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4 CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
