ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Drive Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

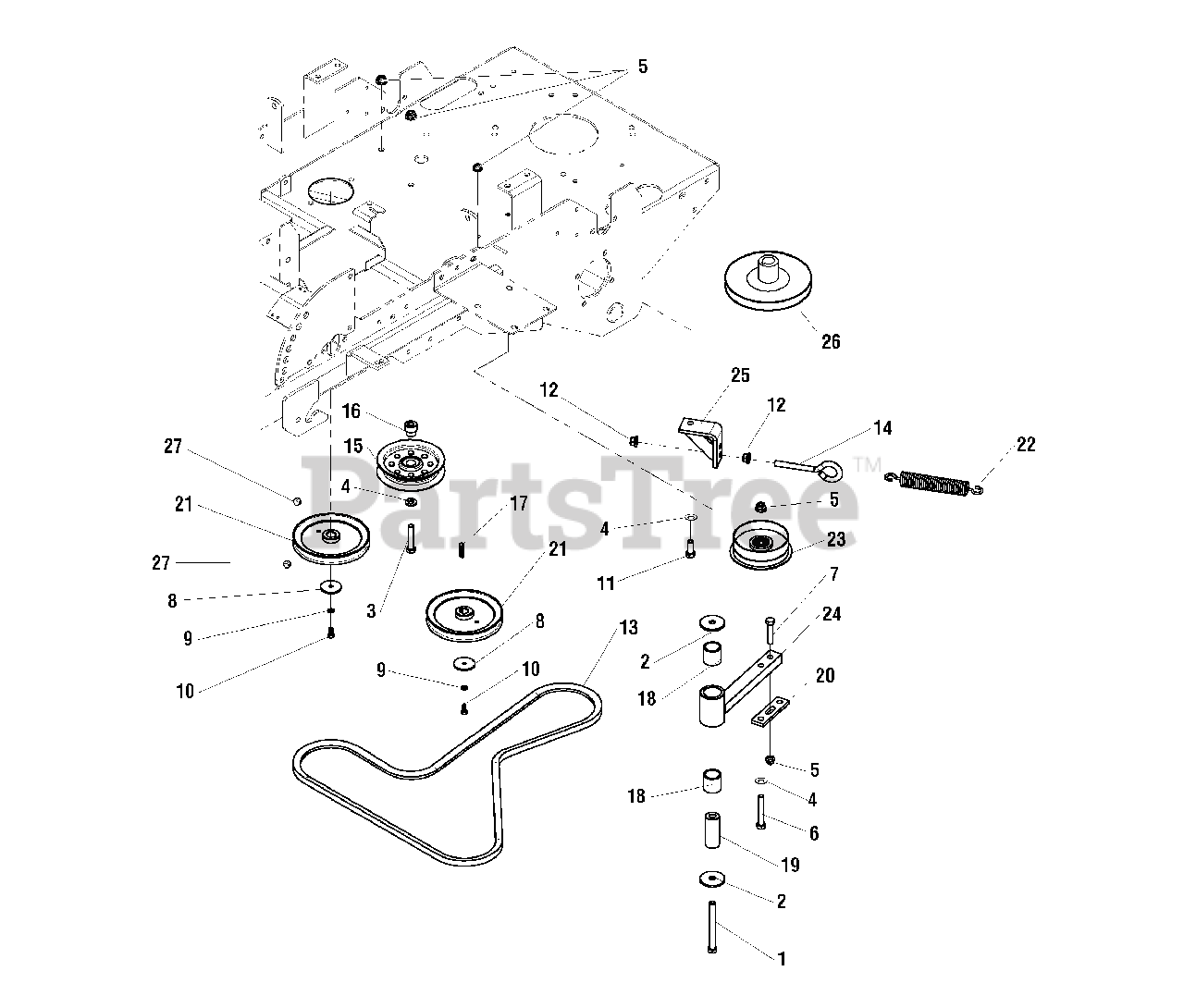

Drive Group Parts Diagram

  • Title

1

Simplicity 5025013X32

BOLT, 3/8-16 X 4" GD5
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025013X16

BOLT, 3/8-16 X 2" GD5
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

8

Simplicity 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025169

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023215

BOLT, M6-1.0 X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

12

Simplicity 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022931

BELT, DECK DRIVE
(Superseded to 5022931SM)

$48.99

$

In Stock, only 4 left!

0

14

Simplicity 5023497

EYE BOLT, 3/8-16 X 5", 1" EYE
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

15

Simplicity 5021002

PULLEY, IDLER
(Superseded to 5021002SM)

$40.99

$

In Stock, Qty 5

0

16

Simplicity 5049184

SPACER, HYDRO IDLER PULLEY
(Superseded to 5049184SM)

$5.49

$

Usually ships in 2-12 days

0

17

Simplicity 5023254

KEY, 5MM SQ W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 5022157

BUSHING, BRASS, 1.25 X 1 X 1.25
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 5102004SM

SPACER, .39 X 1.00 X 2.55, SS

$

$

Not available

20

Simplicity 5048219D

PLATE, ANCHOR, SPRING
(Superseded to 5048219DYP)

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 5023251

PULLEY, PUMP DRIVE
(Superseded to 5023251SM)

$101.99

$

Usually ships in 2-12 days

0

22

Simplicity 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 6

0

23

Simplicity 5103808SM

PULLEY, IDLER, SINGLE FLANGE
(Superseded to 5103808YP)

$57.99

$

In Stock, only 2 left!

0

24

Simplicity 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$75.99

$

Usually ships in 2-12 days

0

25

Simplicity 5045200D

WELD, ANCHOR EYEBOLT
(Superseded to 5045200DYP)

$22.99

$

Usually ships in 2-12 days

0

26

Simplicity 5023252

PULLEY, Crankshaft
(Superseded to 5023252SM)

$97.99

$

In Stock, only 1 left!

0

27

Simplicity 5025061X2

SET SCREW, 5/16-18 X 1/2
(Superseded to 5025061X2SM)

$3.49

$

Usually ships in 2-12 days

0
