ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Electrical Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

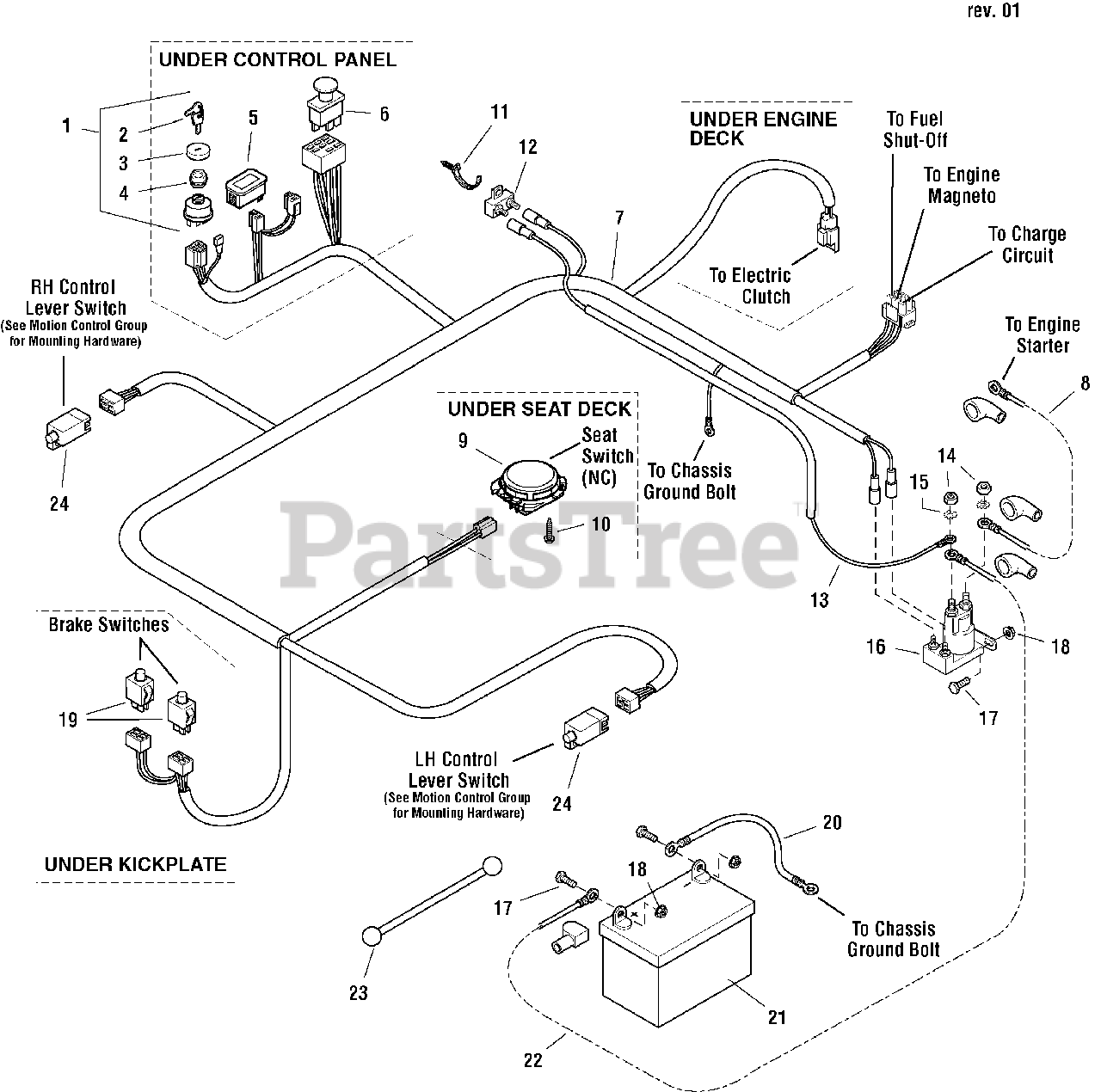

Electrical Group Parts Diagram

  • Title

1

Simplicity 1737853SM

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

2

Simplicity 1737836SM

KEYS. BLISTER PK KIDS+MWRS DON'T MIX, USA Models Only
(Superseded to 1737836YP)

Note: (USA MODELS ONLY)

$20.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1725523

HOUR METER, DIGITAL
(Superseded to 1731184SM)

Note: (Includes Retaining Ring)

$64.99

$

In Stock, only 2 left!

0

6

Simplicity 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5400371

MAIN HARNESS ASSEMBLY
(Superseded to 5400371SM)

$347.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048756

CABLE, #6 X 15" LONG, RING TERMINAL
(Superseded to 5048756SM)

$19.99

$

Usually ships in 2-12 days

0

9

Snapper 5100541

SWITCH, SEAT, GRAY, NC (Twist in)

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 5100540

SWITCH, SEAT (Screw in)
(Superseded to 5100540YP)

$32.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960536

BOLT, HEX WASHER HEAD PLASTITE, 1/4 X 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021199

CABLE TIE, PUSH MOUNT
(Superseded to 5021199SM)

$5.99

$

In Stock, only 1 left!

0

12

Simplicity 5023222

CIRCUIT BREAKER, 20A
(Superseded to 5023222SM)

$23.99

$

In Stock, only 1 left!

0

13

Simplicity 5048938

CRICUIT BREAKER WIRE ASSEMBLY
(Superseded to 5048938SM)

$8.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023216

NUT, HEX JAM, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023217

WASHER, LIGHT LOCK, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1724815

SOLENOID
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

18

Simplicity 5025126

NUT, HEX SERRATED FLANGE, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

20

Simplicity 5021406

CABLE, #6 X 22" LONG, RING TERMINAL
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

21

BATTERY, 12 VOLT

$

$

Not available

22

Simplicity 5021542

CABLE, #6 X 30" LONG, RING TERMINAL
(Superseded to 5021542SM)

$29.99

$

In Stock, only 1 left!

0

23

Simplicity 1722009

STRAP, BATTERY, 14 LONG, RUBBER
(Superseded to 1722009FS)

$9.99

$

In Stock, only 1 left!

0

24

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 10

0
