ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Fuel Tank Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

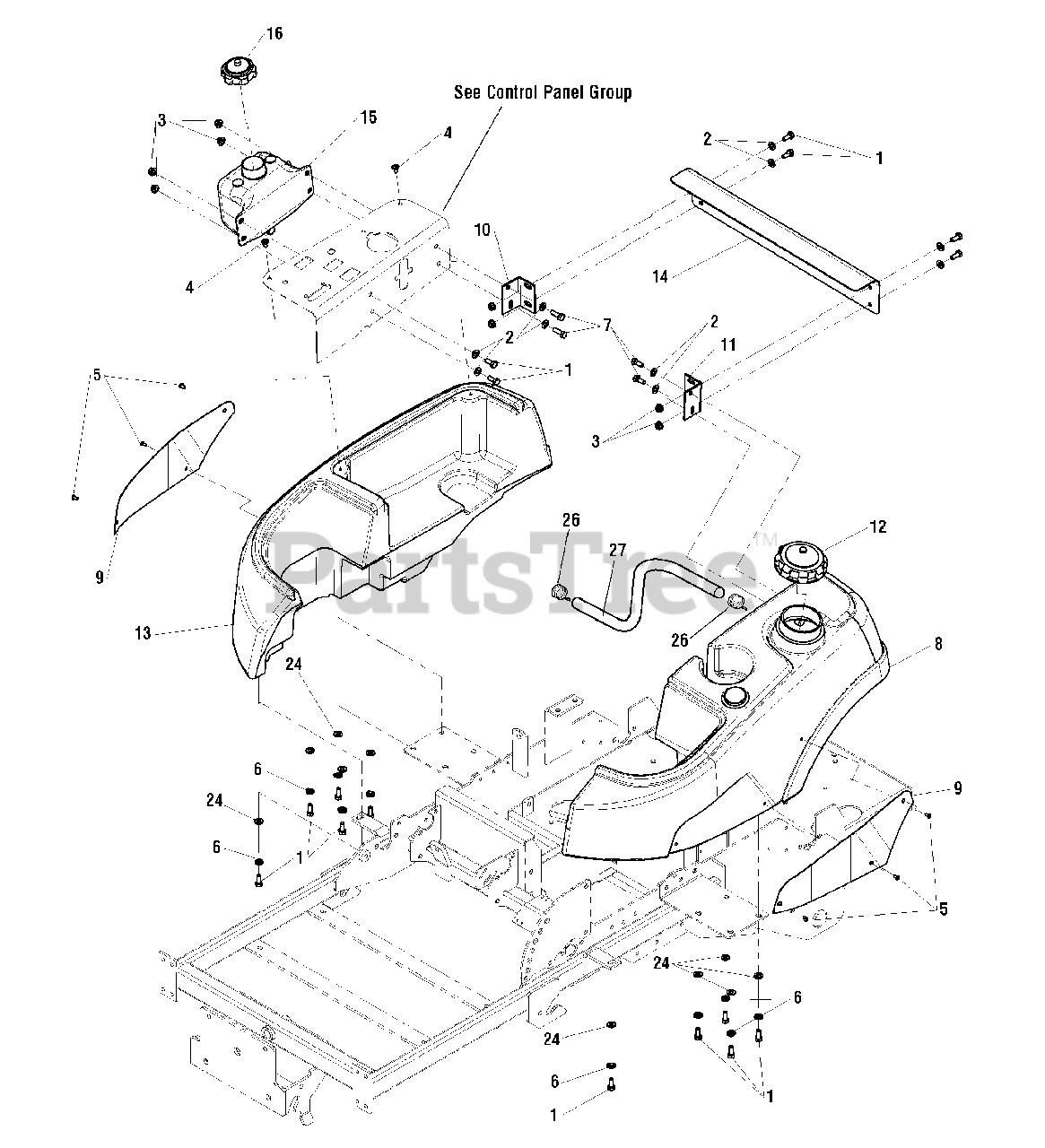

Fuel Tank Group Parts Diagram

  • Title

1

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

2

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5025299X4

SCREW, ALLEN HEAD, 1/4-20X1/2
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025170

WASHER, 5/16" LOCK
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5048751

FUEL TANK ASSEMBLY
(Superseded to 5102544YP)

Note: (Includes Ref. 17 - 23)

$500.99

$

Usually ships in 2-12 days

0

9

Simplicity 5048909D

PLATE, FUEL TANK BADGE - RED
(Superseded to 5048909DYP)

$29.99

$

In Stock, only 2 left!

0

10

Simplicity 5048763D

BRACKET, REAR SUPPORT - RH - RED
(Superseded to 5048763DYP)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 5400836D

BRACKET, REAR SUPPORT - LH - RED
(Superseded to 5400836DYP)

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 5101651

CAP, FUEL TANK, 3-1/2" NECK
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

13

Simplicity 5048752

TANK, FUEL - RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

14

Simplicity 5400919D

PLATE, SUPPORT, REAR TANK - RED
(Superseded to 5400919DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023345

TANK, 2QT HYDRAULIC
(Superseded to 5023345SM)

$87.99

$

In Stock, only 3 left!

0

16

Simplicity 5023191

CAP, HYDRAULIC RESERVOIR
(Superseded to 5023191SM)

$28.99

$

In Stock, only 2 left!

0

17

Simplicity 5023061

ELBOW FITTING
(Superseded to 5023061SM)

Note: Not Shown

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

Note: Not Shown

$7.99

$

In Stock, Qty 19

0

19

Simplicity 5050925X20

HOSE, 20"
(Superseded to 5101217SM)

Note: Not Shown

$50.99

$

In Stock, only 1 left!

0

20

Simplicity 5023069

HOSE CLAMP
(Superseded to 5023069SM)

Note: Not Shown

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 5023067

SCREEN FITTING
(Superseded to 5023067SM)

Note: Not Shown

$13.99

$

In Stock, only 2 left!

0

22

Simplicity 5023197

FUEL GAUGE
(Superseded to 5023197SM)

Note: Not Shown

$57.99

$

In Stock, Qty 6

0

23

Simplicity 5022917X1

GROMMET
(Superseded to 5022917X1SM)

Note: Not Shown

$6.99

$

In Stock, only 2 left!

0

24

Simplicity 5025292

WASHER, GR. 9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

25

Simplicity 5300046

ASSM, FUEL HOSE
(Superseded to 5101217SM)

Note: Not Shown (Includes Ref. 17 - 21)

$50.99

$

In Stock, only 1 left!

0

26

Simplicity 5020835

CLAMP, HOSE, RED
(Superseded to 5020835SM)

$

$

Not available

27

Simplicity 5050831X20

HOSE, 1/4" FUEL LINE, 20" LONG
(Superseded to 5050831X20YP)

$7.99

$

Usually ships in 2-12 days

0
