ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Hydraulic Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

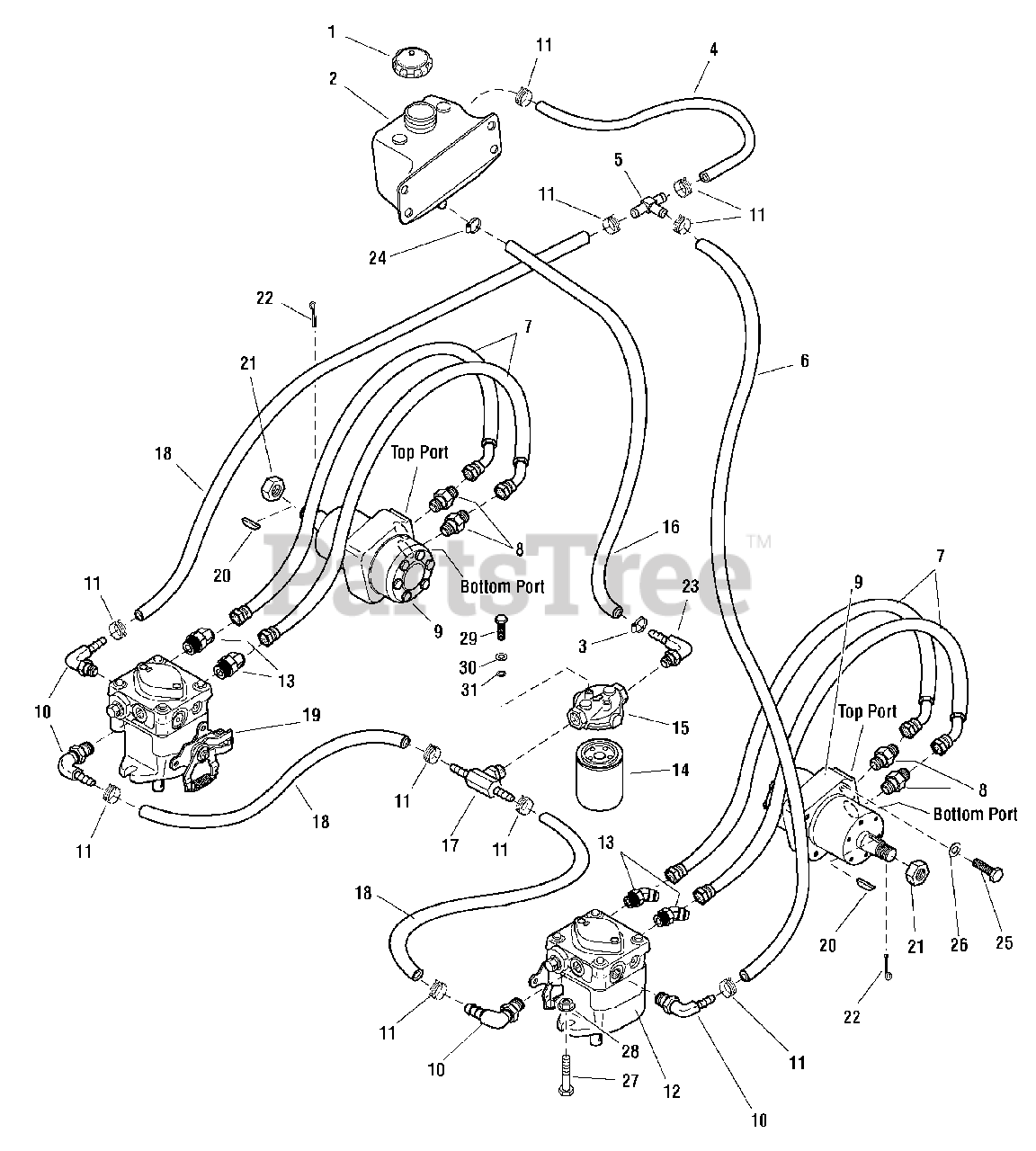

Hydraulic Group Parts Diagram

  • Title

1

Simplicity 5023191

CAP
(Superseded to 5023191SM)

$28.99

$

In Stock, only 2 left!

0

2

Simplicity 5023345

HYDRAULIC TANK
(Superseded to 5023345SM)

$87.99

$

In Stock, only 3 left!

0

3

Simplicity 5021164

CLAMP, #10 HOSE STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5050860X8P5

HOSE, 3/8 X 8.50" LONG
(Superseded to 5050860X8P5SM)

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 5022920

TEE FITTING
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 5050860X27

HOSE, 3/8 X 27" LONG
(Superseded to 5050860X27SM)

$30.99

$

Usually ships in 2-12 days

0

7

Simplicity 5022710

25.5" HOSE ASSEMBLY
(Superseded to 5022710SM)

$131.99

$

In Stock, only 1 left!

0

8

Simplicity 5022634

FITTING, ADAPTER
(Superseded to 5022634SM)

$15.99

$

In Stock, only 2 left!

0

9

Simplicity 5023091

WHEEL MOTOR
(Superseded to 5023091SM)

$1071.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023267

FITTING, 90 DEG. O-RING
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

11

Simplicity 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5101404

PE, 10CC HYDRAULIC PUMP - LH
(Superseded to 5101404SM)

$817.99

$

Usually ships in 2-12 days

0

13

Simplicity 5023338

FITTING, ADAPTER
(Superseded to 5023338SM)

$36.99

$

In Stock, only 1 left!

0

14

Simplicity 1719168

FILTER
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 18

0

15

Simplicity 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

16

Simplicity 5400707

HOSE, 5/8 X 12.5" LONG
(Superseded to 5400707SM)

$18.99

$

Usually ships in 2-12 days

0

17

Simplicity 5023266

FITTING, TEE
(Superseded to 5023266SM)

$55.99

$

Usually ships in 2-12 days

0

18

Simplicity 5050860X7P5

HOSE, 3/8 X 7.5 " LONG
(Superseded to 5050860X7P5SM)

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 5101403

PE, 10CC HYDRAULIC PUMP - RH
(Superseded to 5101403SM)

$817.99

$

Usually ships in 2-12 days

0

20

Simplicity 5023091X1

KEY
(Superseded to 5023091X1SM)

$12.99

$

Usually ships in 2-12 days

0

21

Simplicity 5101583X1

NUT, CASTLE

$48.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5023346

ADAPTER, 90 DEG, 9/16-5/8 BARB
(Superseded to 5023346SM)

$42.99

$

Usually ships in 2-12 days

0

24

Simplicity 5061549

CLAMP, HOSE 7/8
(Superseded to 5061549SM)

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

26

Simplicity 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

27

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

30

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

31

Simplicity 5025169

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0
