ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Main Frame & Front Suspension Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

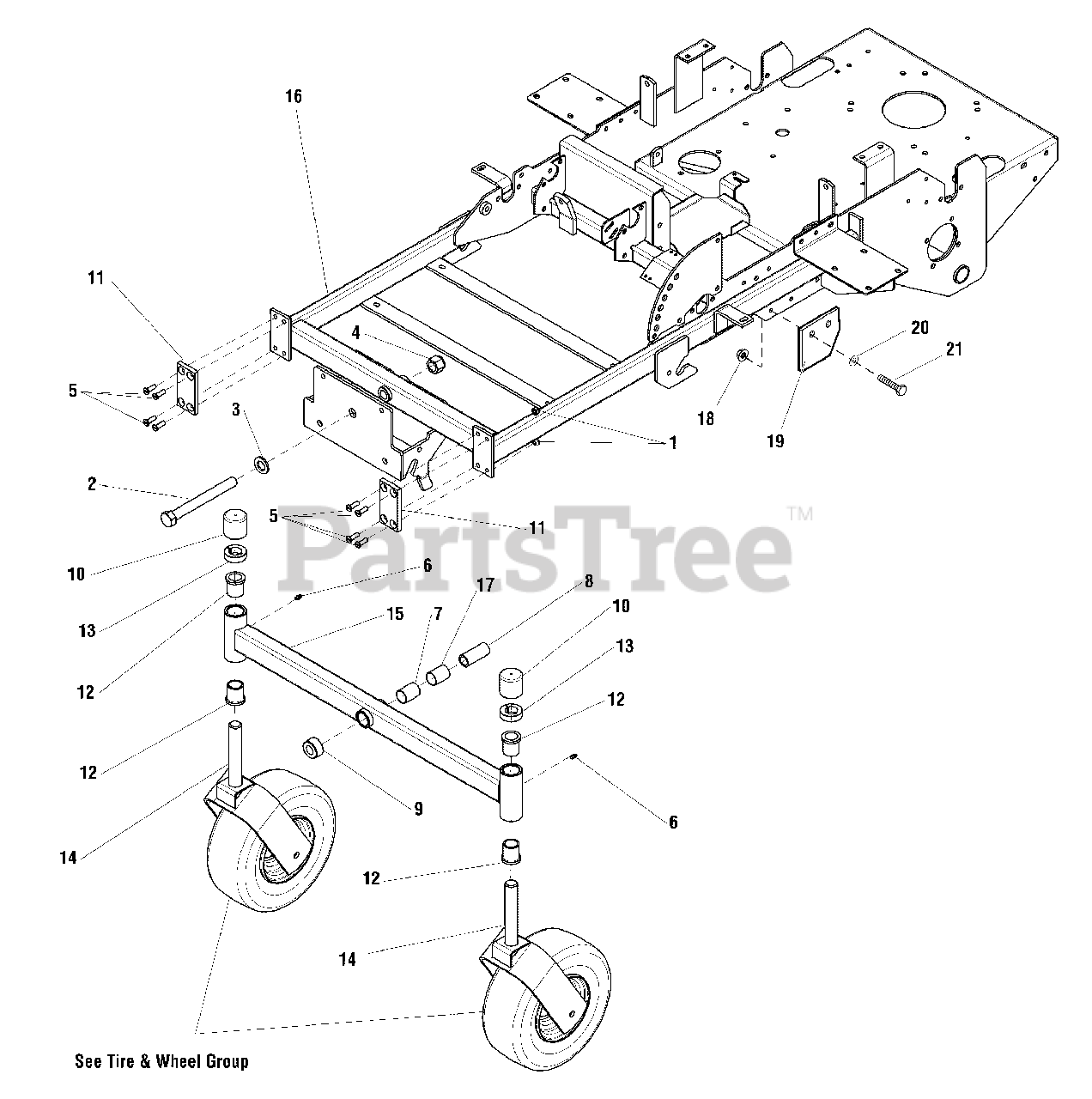

Main Frame & Front Suspension Parts Diagram

  • Title

1

Simplicity 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025265X56

3/4-16 X 7" GD 8 BOLT TZ
(Superseded to 5025265X56SM)

$44.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 5022852

PIVOT BEARING,1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$34.99

$

In Stock, only 2 left!

0

8

Simplicity 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$37.99

$

In Stock, only 2 left!

0

9

Simplicity 5400756

SPACER, .75 X 1.50 X .785
(Superseded to 5400756SM)

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023214

CAP, VINYL 1.687 X 1-1/2
(Superseded to 5023214SM)

$6.49

$

In Stock, Qty 18

0

11

Simplicity 5045990

PLATE, FRICTION REDUCER
(Superseded to 5045990SM)

$21.99

$

Usually ships in 2-12 days

0

12

Simplicity 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

13

Simplicity 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$23.99

$

In Stock, only 1 left!

0

14

Simplicity 5048775D

WELD, CASTER YOKE
(Superseded to 5048775DYP)

$170.99

$

Usually ships in 2-12 days

0

15

Simplicity 5400405D

WELD, PIVOTING FRONT END
(Superseded to 5400405DYP)

$207.99

$

Usually ships in 2-12 days

0

16

Simplicity 5403499D

WELD, MAIN FRAME

$

$

Not available

17

Simplicity 5100358

BEARING, PIVOT, 1.00 X 1.25 X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, only 2 left!

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5401053D

PLATE, DECK STOP - SNAPPER RED
(Superseded to 5401053DYP)

$26.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0
