ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Seat & Kickplate Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

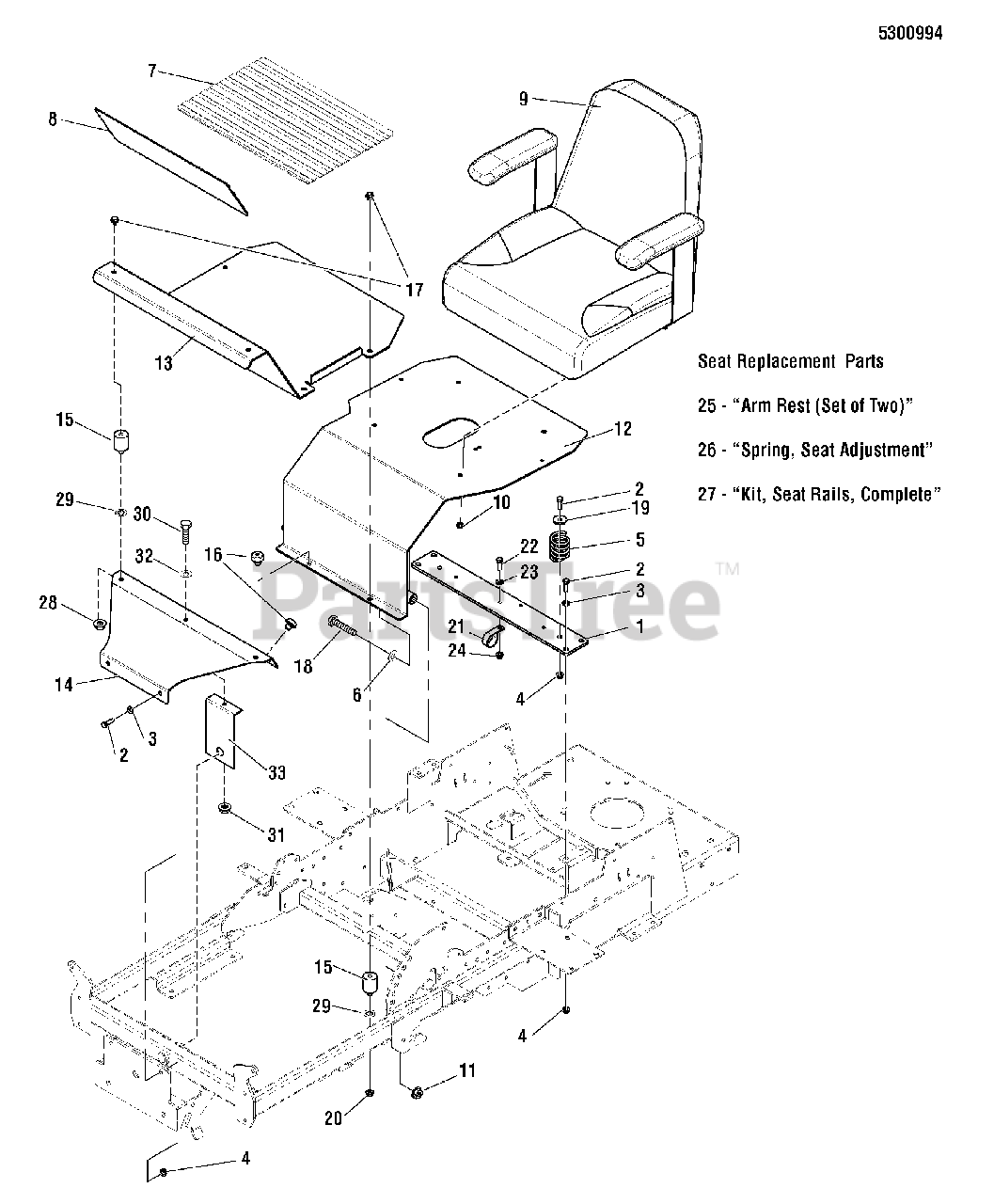

Seat & Kickplate Group Parts Diagram

  • Title

1

Simplicity 5402937D

PLATE, SEAT SUPPORT, CONS Z - RED
(Superseded to 5402937DYP)

$42.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD 5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025292

WASHER, 5/16 GD. 9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

4

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5100999

SAFETY WALK, FLOOR PLATE, 17.38 X 11.50
(Superseded to 5100999SM)

$29.99

$

Usually ships in 2-12 days

0

8

Simplicity 5101007

SAFETY WALK, FLOOR REST, 17.38 X 6.00
(Superseded to 5101007SM)

$32.99

$

In Stock, only 1 left!

0

9

Simplicity 5061599

SEAT, XB-180, NO LOGO, BLACK
(Superseded to 5061599SM)

$744.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5403488D

WELD, SEAT PLATE - RED
(Superseded to 5403488DYP)

$296.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403665D

PLATE, FLOOR, CONSUMER Z - RED

$

$

Not available

14

Simplicity 5403044D

PLATE, FLOOR, FRONT, CONS Z - RED
(Superseded to 5403044DYP)

$56.99

$

Usually ships in 2-12 days

0

15

Simplicity 35097

MOUNT, VIBRATION, 30 DURO
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

16

Simplicity 197546

MOUNT, VIBRATION, RUBBER
(Superseded to 197546GS)

$7.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025481

BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD
(Superseded to 5025481SM)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 YZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

20

Simplicity 5025128

NUT, 3/8-18 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

23

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

24

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1686907

ARM REST, SET OF TWO (SV)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

27

Simplicity 5061599X1

KIT, SEAT RAILS. COMPLETE (SV)
(Superseded to 5061599X1SM)

$192.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025480

WASHER, 3/8" ID, INTERNAL TOOTH
(Superseded to 5025480SM)

$3.49

$

In Stock, only 1 left!

0

30

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

31

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Simplicity 5403372D

PLATE, SUPPORT, FRONT FLOOR - RED
(Superseded to 5403372DYP)

$17.99

$

Usually ships in 2-12 days

0
