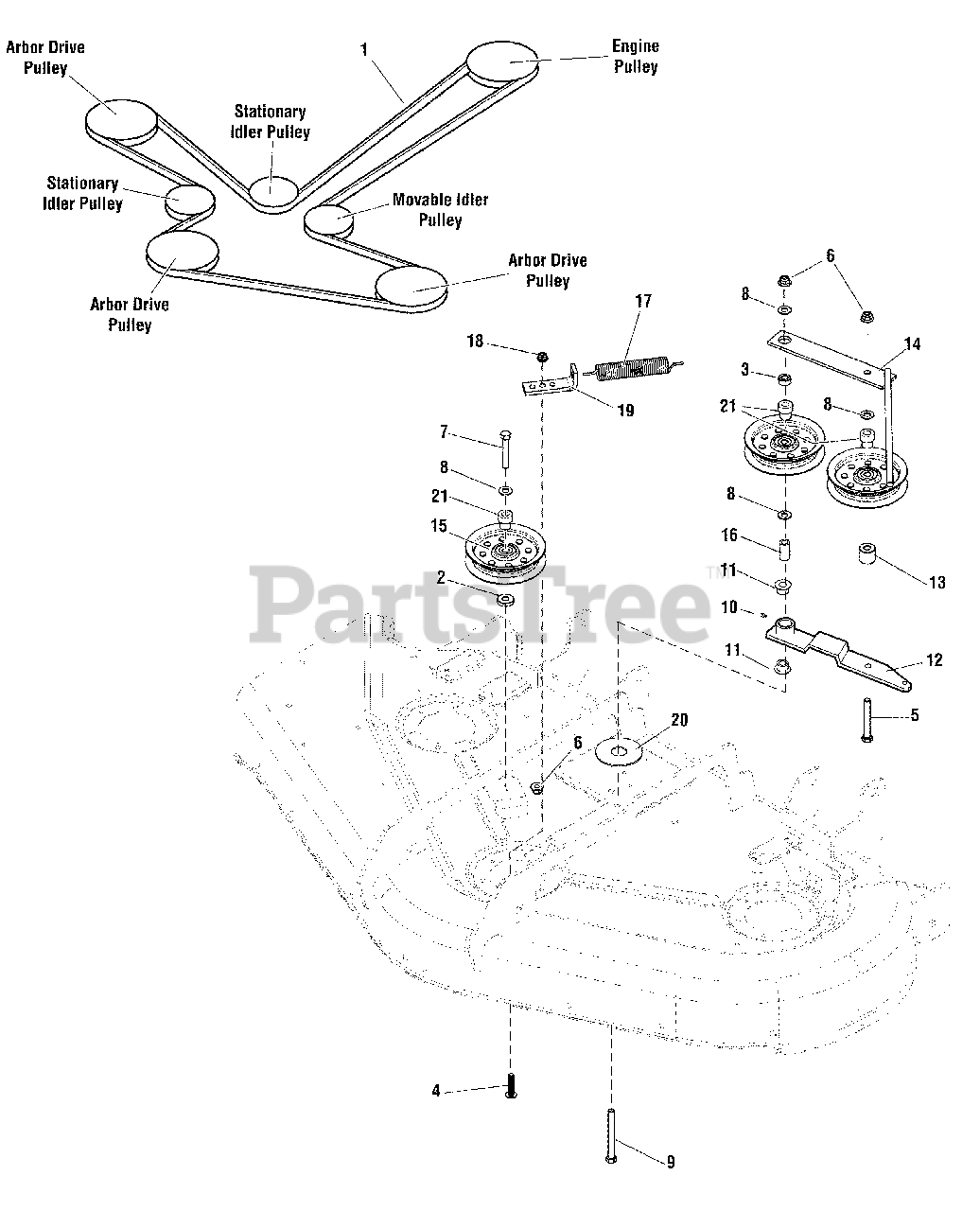

ZT 2450 (5900777) - Massey Ferguson 50" Zero-Turn Mower 50" Mower Deck - Belt & Idler Group Parts Diagram

50" Zero-Turn Mower

50" Mower Deck - Belt & Idler Group Parts Diagram

  • Title

1

Simplicity 5023255

BELT, #7-8055, 155" E.L.
(Superseded to 5023255SM)

$91.99

$

In Stock, Qty 12

0

2

Simplicity 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 YZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

6

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

7

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4 GD5 YZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 YZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1676148

BUSHING, 0.628 ID X 0.751 OD X 0.400 LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 10

0

12

Simplicity 5402228D

WELD, DECK IDLER ARM, CONSZ - RED
(Superseded to 5400398DYP)

$88.99

$

Usually ships in 2-12 days

0

13

Simplicity 5047125

SPACER, .39 X 1.00 X .88
(Superseded to 5047125SM)

$7.99

$

In Stock, Qty 7

0

14

Simplicity 5400412D

WELD, MT, IDLER, TENSION
(Superseded to 5400412DYP)

$37.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021002

PULLEY, IDLER
(Superseded to 5021002SM)

$40.99

$

In Stock, Qty 5

0

16

Simplicity 1674669

SPACER, 0.39 ID X 0.625 OD X 1.15 LG CASE HARD
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 11

0

17

Simplicity 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 12

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5402172D

BRACKET, SPRING ANCHOR - RED
(Superseded to 5402172DYP)

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 1 left!

0

21

Simplicity 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

Usually ships in 2-12 days

0
