ZT 2452 (5900928) - Massey Ferguson 52" Zero-Turn Mower Engine Group Parts Diagram

52" Zero-Turn Mower

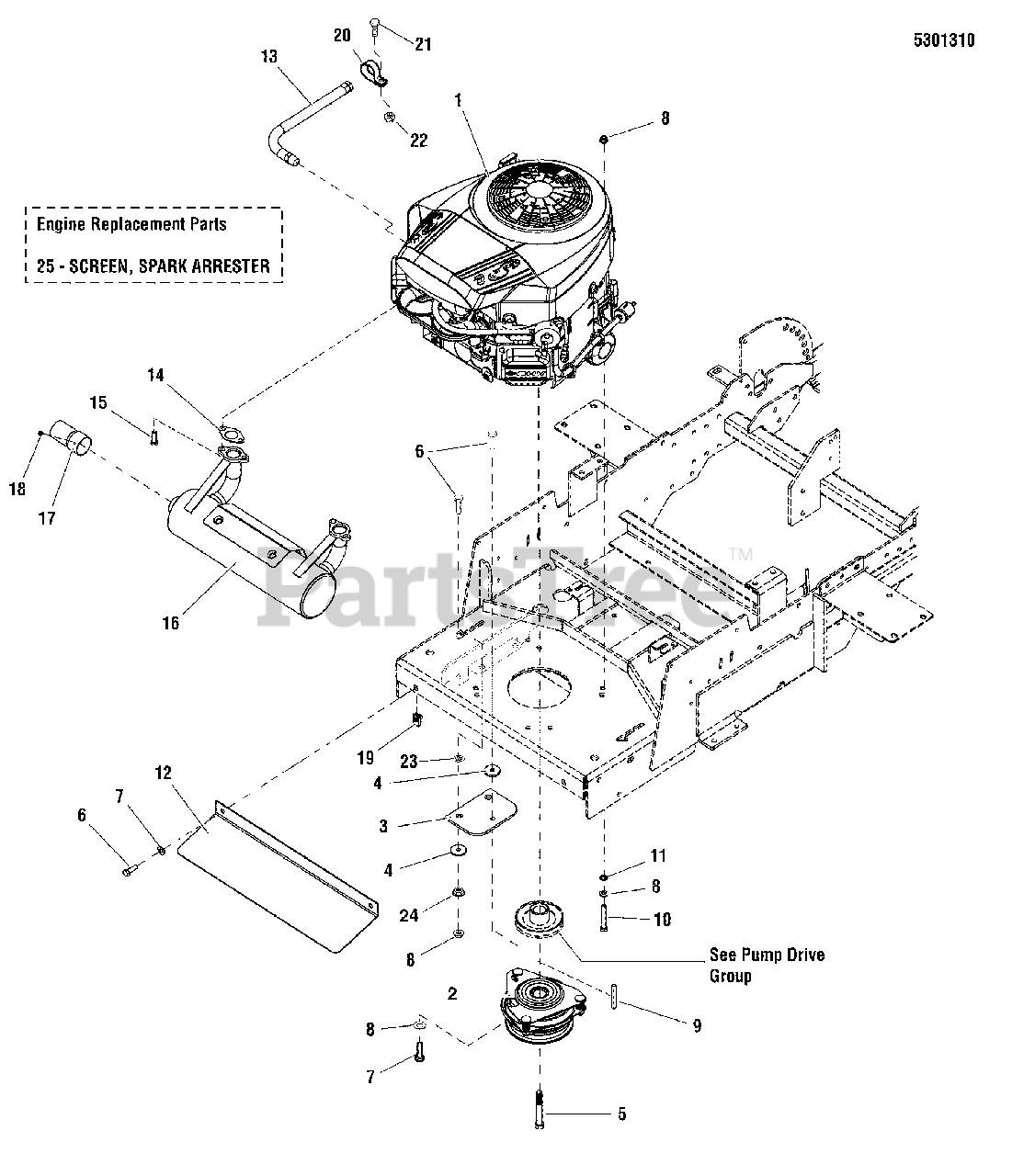

Engine Group Parts Diagram

  • Title

1

* ENGINE, ELS BRIGGS

$

$

Not available

2

Simplicity 5101529

CLUTCH, WARNER ELECTRIC, I-5219-104
(Superseded to 5101529YP)

$336.99

$

Usually ships in 2-12 days

0

3

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

4

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Simplicity 5102865

BOLT, CRANKSHAFT, 7/16X2-3/4
(Superseded to 5102865YP)

$5.49

$

In Stock, only 1 left!

0

6

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5050407X8

KEY, 1/4 SQ. X 1.00
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5403059D

PLATE, HEAT SHIELD - RED
(Superseded to 5403059DYP)

$47.99

$

Usually ships in 2-12 days

0

13

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

14

Simplicity 273485

* GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 14

0

15

Simplicity 690341

SCREW

$5.99

$

In Stock, only 2 left!

0

16

Simplicity 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

$

$

Not available

17

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3" - BLK

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

20

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

22

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

25

Simplicity 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0
