ZT 2452 (5900928) - Massey Ferguson 52" Zero-Turn Mower Fuel Tank & Replacement Parts Group Parts Diagram

52" Zero-Turn Mower

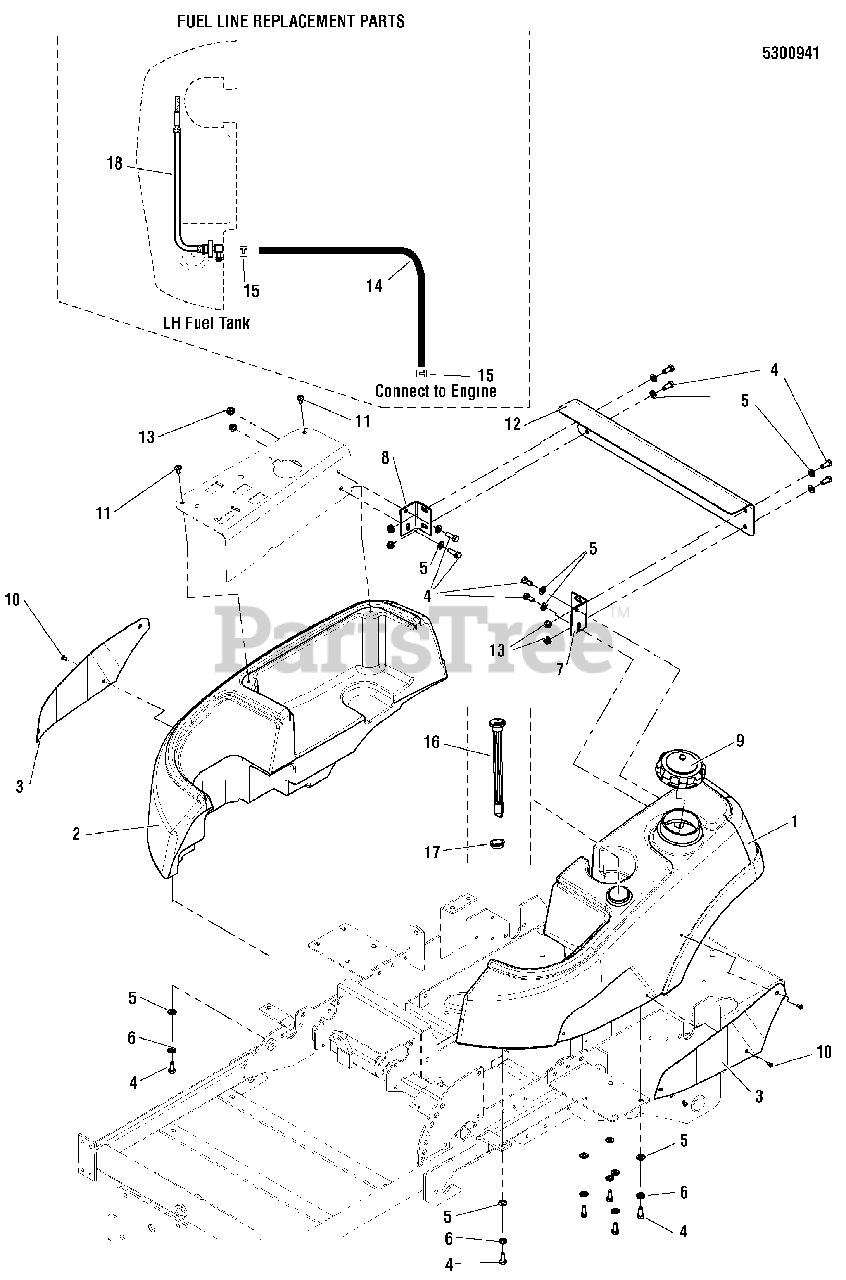

Fuel Tank & Replacement Parts Group Parts Diagram

  • Title

1a

Simplicity 5103167

TANK, FUEL, LH
(Superseded to 5103167YP)

Note: (S/N: 2014923026 & ABOVE)

$557.99

$

Usually ships in 2-12 days

0

1b

Simplicity 5102544

TANK, FUEL, LH
(Superseded to 5102544YP)

Note: (S/N: 2014648789 - 2014923025)

$500.99

$

Usually ships in 2-12 days

0

1c

Simplicity 5101181

TANK, FUEL, LH
(Superseded to 5102544YP)

Note: (S/N: 2014648788 & BELOW)

$500.99

$

Usually ships in 2-12 days

0

2

Simplicity 5048752

TANK, FUEL, RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

3

Simplicity 5048909D

PLATE, FUEL TANK BADGE
(Superseded to 5048909DYP)

$29.99

$

In Stock, only 2 left!

0

4

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5400836D

BRACKET, REAR SUPPORT - LH - RED
(Superseded to 5400836DYP)

$8.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048763D

BRACKET, REAR SUPPORT - RH
(Superseded to 5048763DYP)

$6.99

$

Usually ships in 2-12 days

0

9a

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & ABOVE)

$40.99

$

In Stock, only 1 left!

0

9b

Simplicity 5022158

CAP, FUEL TANK, 3-1/2 NECK
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$30.99

$

In Stock, Qty 20+

0

10

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 20+

0

12

Simplicity 5403004D

PLATE, SUPPORT, REAR TANK - SNP RED
(Superseded to 5403004DYP)

$46.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5050831X28

HOSE, 1/4" FUEL, 28.00"
(Superseded to 5050831X28SM)

$12.99

$

Usually ships in 2-12 days

0

15

Simplicity 5020835

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 5020835SM)

$

$

Not available

16

Simplicity 5023197

FUEL GAUGE (SV)
(Superseded to 5023197SM)

$57.99

$

In Stock, only 4 left!

0

17

Simplicity 5022917X1

GROMMET (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 4 left!

0

18

Simplicity 5101190

PICK UP TUBE ASSM, FUEL TANK (SV)
(Superseded to 5101190SM)

$36.99

$

Usually ships in 2-12 days

0
