ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler 61" Mower Deck - Belt, Pulleys & Idler Arm (7087bpia) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

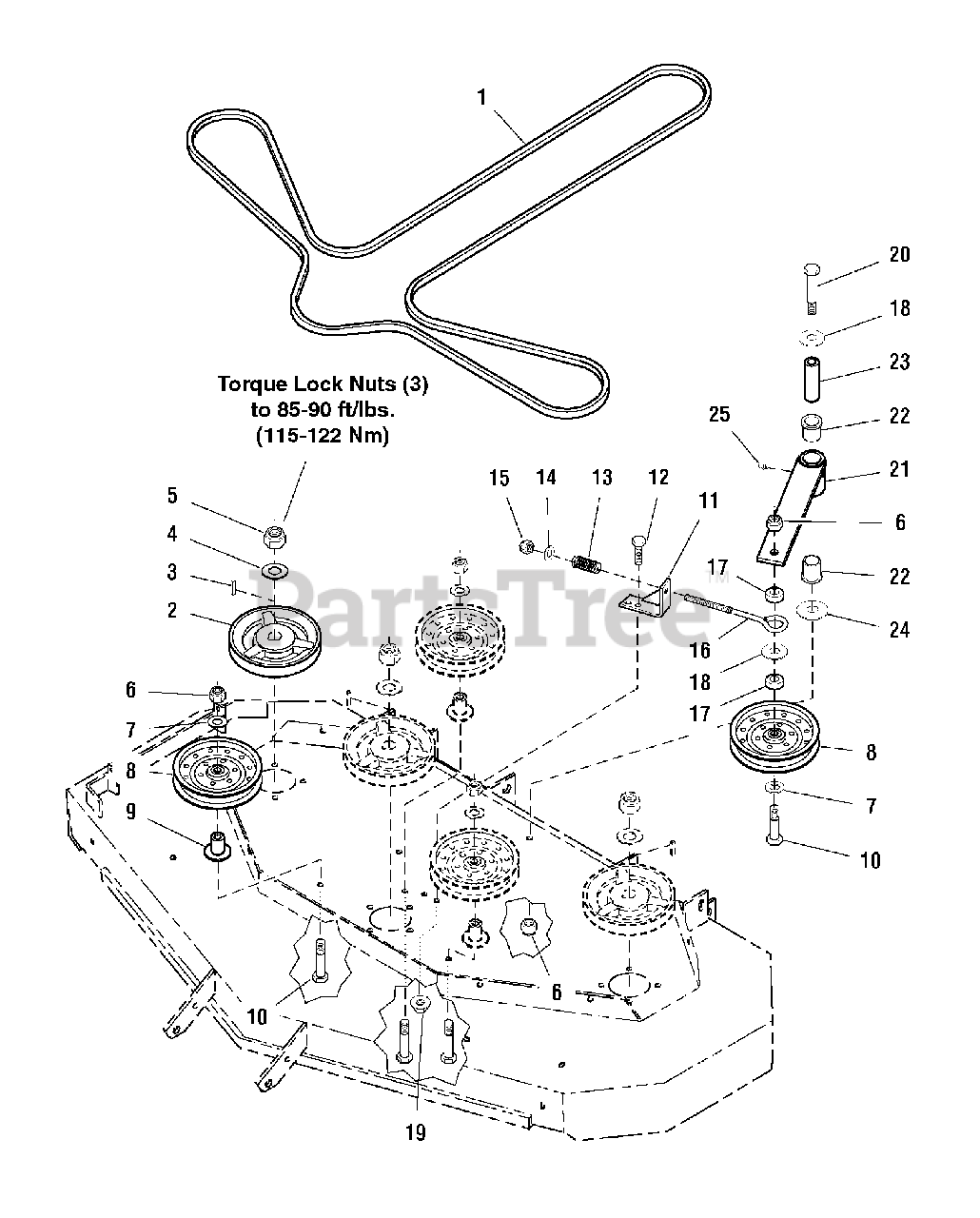

61" Mower Deck - Belt, Pulleys & Idler Arm (7087bpia) Parts Diagram

  • Title

1

Simplicity 5103871YP

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC

$115.99

$

In Stock, only 1 left!

0

2

Simplicity 5046466SM

SPINDLE PULLEY

$124.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050407X5SM

KEY, 1/4 x 1-1/4

$

$

Not available

4

Simplicity 5025318SM

WASHER, Spring

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025319SM

NUT, Hex, Nylon Lock, 5/8-18

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

7

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

Usually ships in 2-12 days

0

9

Simplicity 5103430

WELD, MOUNT, IDLER
(Superseded to 5103430YP)

$10.99

$

In Stock, only 2 left!

0

10

Simplicity 502501724

CAPSCREW, Hex Hd, 1/2-13 x 3

$

$

Not available

11

Simplicity 5046950CSM

SPRING ANCHOR

$28.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5022788SM

SPRING, Compression

$38.99

$

In Stock, only 1 left!

0

14

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

16

Simplicity 5021811SM

EYEBOLT

$8.99

$

In Stock, Qty 6

0

17

Simplicity 5045023SM

SPACER, .52 x 1.00 x .44

$6.49

$

In Stock, only 2 left!

0

18

Simplicity 5025150SM

WASHER, USS, 1/2

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 502501736

CAPSCREW, Hex Hd, 1/2-13 x 4-1/2

$

$

Not available

21

Simplicity 5045019CSM

IDLER ARM

$81.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021541SM

BUSHING, Flange

$10.99

$

In Stock, Qty 20+

0

23

Simplicity 5045022SM

IDLER ARM PIVOT SHAFT

$25.99

$

In Stock, only 1 left!

0

24

Simplicity 5025281SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 5020095SM

GREASE FITTING

$4.49

$

In Stock, only 1 left!

0
