ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Lift Group (7087dlg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

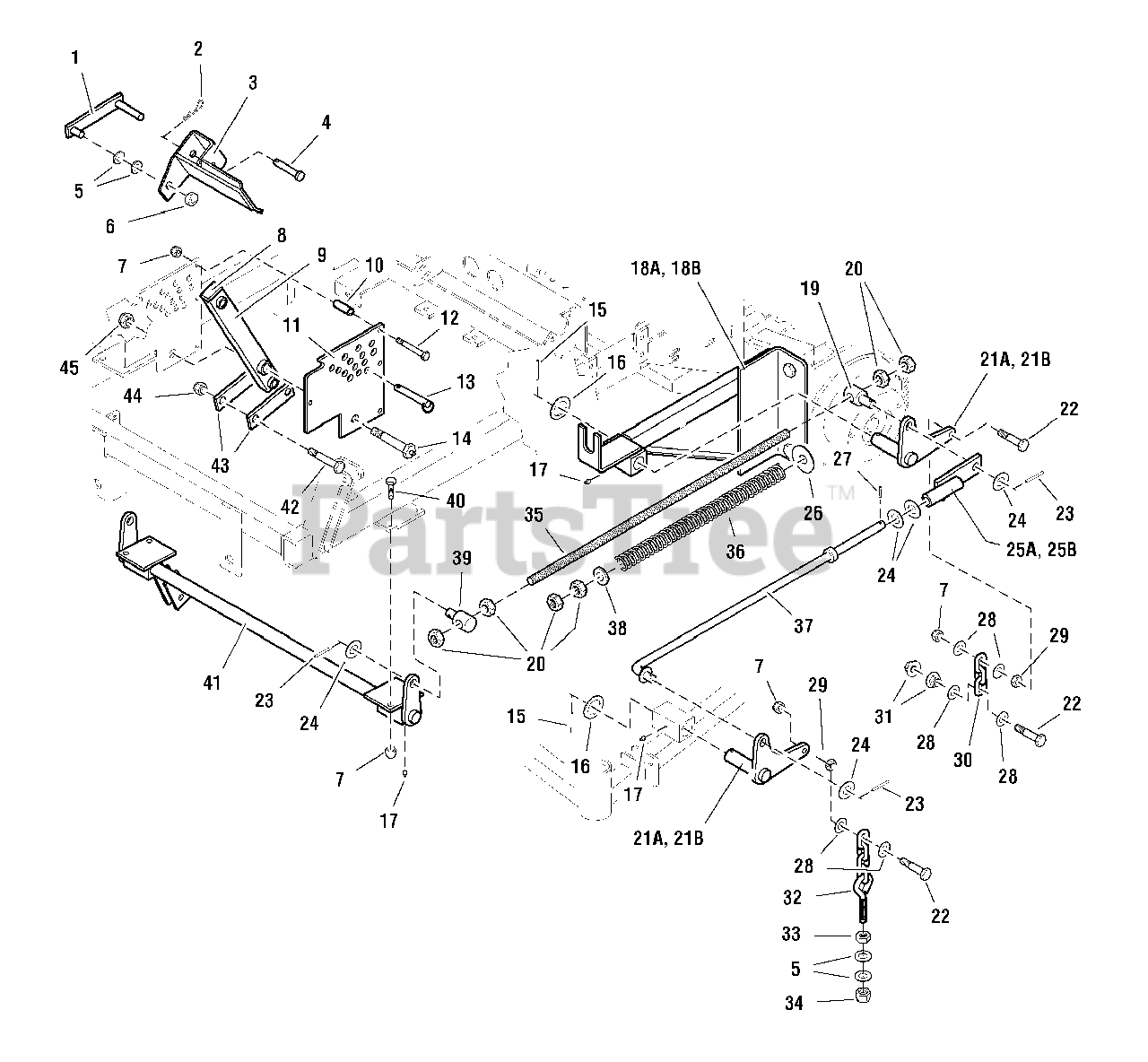

Lift Group (7087dlg) Parts Diagram

  • Title

1

Simplicity 5044999CSM

DECK LIFT LOCK

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 1918196SM

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5045058CSM

DECK LIFT PEDAL

$92.99

$

Usually ships in 2-12 days

0

*

Simplicity 5044875SM

SAFETY WALK
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 5022044SM

PIN, Clevis, 1/2 x 2-1/2

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0

6

Simplicity 5023241SM

COLLAR, Split, 1/2

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

8

Simplicity 5022097SM

CAP

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 5044987CSM

DECK LIFT PIVOT ARM

$39.99

$

Usually ships in 2-12 days

0

10

Simplicity 5044992SM

SPACER, .38 x .50 x 1.56

$5.99

$

In Stock, only 2 left!

0

11

Simplicity 5045379CSM

DECK HEIGHT PLATE

$

$

Not available

*

Simplicity 5022063SM

DECAL, Deck Height

$49.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025013X22SM

CAPSCREW, Hex Hd, 3/8-16 x 2-3/4

$4.49

$

In Stock, Qty 6

0

13

Simplicity 5023082SM

PIN, 1/2 x 3

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 5044993SM

LIFT PIVOT BOLT

$31.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025516SM

PIN, Roll, 3/16 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5021253SM

SHIM WASHER

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020095SM

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

18A

Simplicity 5045216CSM

REAR DECK LIFT FRAME - LH

$256.99

$

Usually ships in 2-12 days

0

18B

Simplicity 5045217CSM

REAR DECK LIFT FRAME - RH (not shown)

$239.99

$

Usually ships in 2-12 days

0

19

Simplicity 5047446SM

SPRING ROD PIVOT

$21.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025040SM

NUT, Hex, 5/8-11

$3.49

$

In Stock, only 1 left!

0

21A

Simplicity 5045449CSM

DECK LIFT PIVOT - LH

$91.99

$

Usually ships in 2-12 days

0

21B

Simplicity 5045450CSM

DECK LIFT PIVOT - RH (not shown)

$88.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, Qty 5

0

23

Simplicity 5022366SM

PIN, Spring, 3/16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025281SM

WASHER, 5/8

$3.99

$

In Stock, only 3 left!

0

25A

Simplicity 5047522CSM

DECK LIFT LINK - LH

$

$

Not available

25B

Simplicity 5047523CSM

DECK LIFT LINK - RH (not shown)

$

$

Not available

26

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 18

0

27

Simplicity 5025316SM

PIN, Roll, 3/16 x 3/4

$

$

Not available

28

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

29

Simplicity 5025084SM

NUT, Hex, Jam, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5050878X3SM

CHAIN, 3 Links

$8.49

$

In Stock, only 2 left!

0

31

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 5104303YP

HANGER, FRONT DECK - 4 LINK, 5.5" EB

$53.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025038SM

NUT, Hex, 1/2-13

$

$

Not available

34

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

35

Simplicity 5045446SM

SPRING ROD

$33.99

$

Usually ships in 2-12 days

0

36

Simplicity 5022333SM

SPRING, Deck Lift

$52.99

$

Usually ships in 2-12 days

0

37

Simplicity 5047761SM

DECK LIFT ROD

$

$

Not available

38

Simplicity 5041477SM

SPACER, .63 x 1.06 x .23

$5.99

$

In Stock, only 4 left!

0

39

Simplicity 5045447SM

SPRING ROD PIVOT

$25.99

$

Usually ships in 2-12 days

0

40

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16

$3.99

$

In Stock, only 3 left!

0

41

Simplicity 5047441CSM

DECK LIFT SHAFT & MOUNT ASSEMBLY

$387.99

$

Usually ships in 2-12 days

0

42

Simplicity 502501824

CAPSCREW, Hex Hd, 1/2-20 x 3

$

$

Not available

43

Simplicity 5044994CSM

DECK LIFT LINK

$6.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

45

Simplicity 5025282SM

NUT, Hex, Jam, Nylon Lock, 5/8-11

$

$

Not available
