ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Wheels & Tires Group (7087wtg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

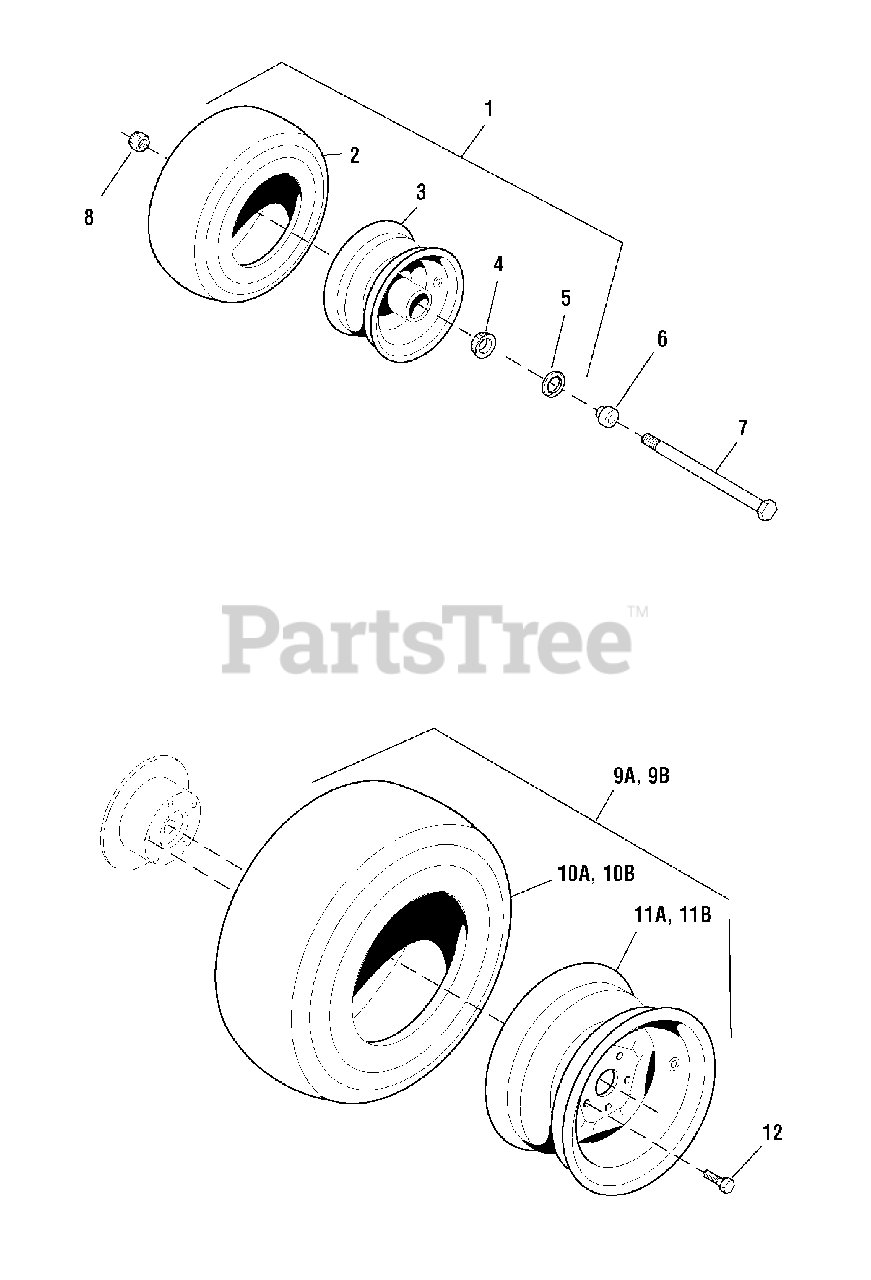

Wheels & Tires Group (7087wtg) Parts Diagram

  • Title

1

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete

Note: (includes Ref. No. 2 - 5 & 13)

$172.99

$

In Stock, only 3 left!

0

2

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

$

$

Not available

3

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete

Note: (includes Ref. No. 6 & 7)

$105.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (2 per tire)

$13.99

$

In Stock, Qty 17

0

5

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

In Stock, Qty 18

0

6

Simplicity 5047103SM

ADAPTER, Caster Wheel (2 per tire)

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 502501760

CAPSCREW, Hex Hd, 1-2/13 x 7-1/2

$

$

Not available

8

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1-2/13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

9A

Simplicity 5022396SSM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.5 x 12, Complete (Includes Ref 10A & 11A)(ZT2561F - S/N: 877 & below)(ZT2761F - S/N: 937 & below)

$

$

Not available

9B

Simplicity 5023243SM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.5 x 12, Complete (Includes Ref 10A & 11A)(ZT2561F - S/N: 878 & above)(ZT2761F - S/N: 938 & above)

$330.99

$

Usually ships in 2-12 days

0

10A

Simplicity 50223961

TIRE, Rear, 23 x 10.5 x 12 (ZT2561F - S/N: 877 & below)(ZT2761F - S/N: 937 & below)

$

$

Not available

10B

Simplicity 50232431

TIRE, Rear, 23 x 10.5 x 12 (ZT2561F - S/N: 878 & above)(ZT2761F - S/N: 938 & above)

$

$

Not available

11A

Simplicity 5022898X2

WHEEL ASSEMBLY, Rear, 12 x 8.5 (ZT2561F - S/N: 877 & below)(ZT2761F - S/N: 937 & below)
(Superseded to 5023364)

$231.99

$

Usually ships in 2-12 days

0

11B

Simplicity 5022396S2

WHEEL ASSEMBLY, Rear, 21 x 8.5 (ZT2561F - S/N: 878 & above)(ZT2761F - S/N: 938 & above)

$

$

Not available

12

Simplicity 5022215SM

WHEEL LUG, 1/2 x 1-5/8

$10.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022631SX4SM

BEARING, RACE

Note: (Not shown)

$10.99

$

In Stock, only 3 left!

0
