ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Control Cover & Mount Group (7012ccmg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

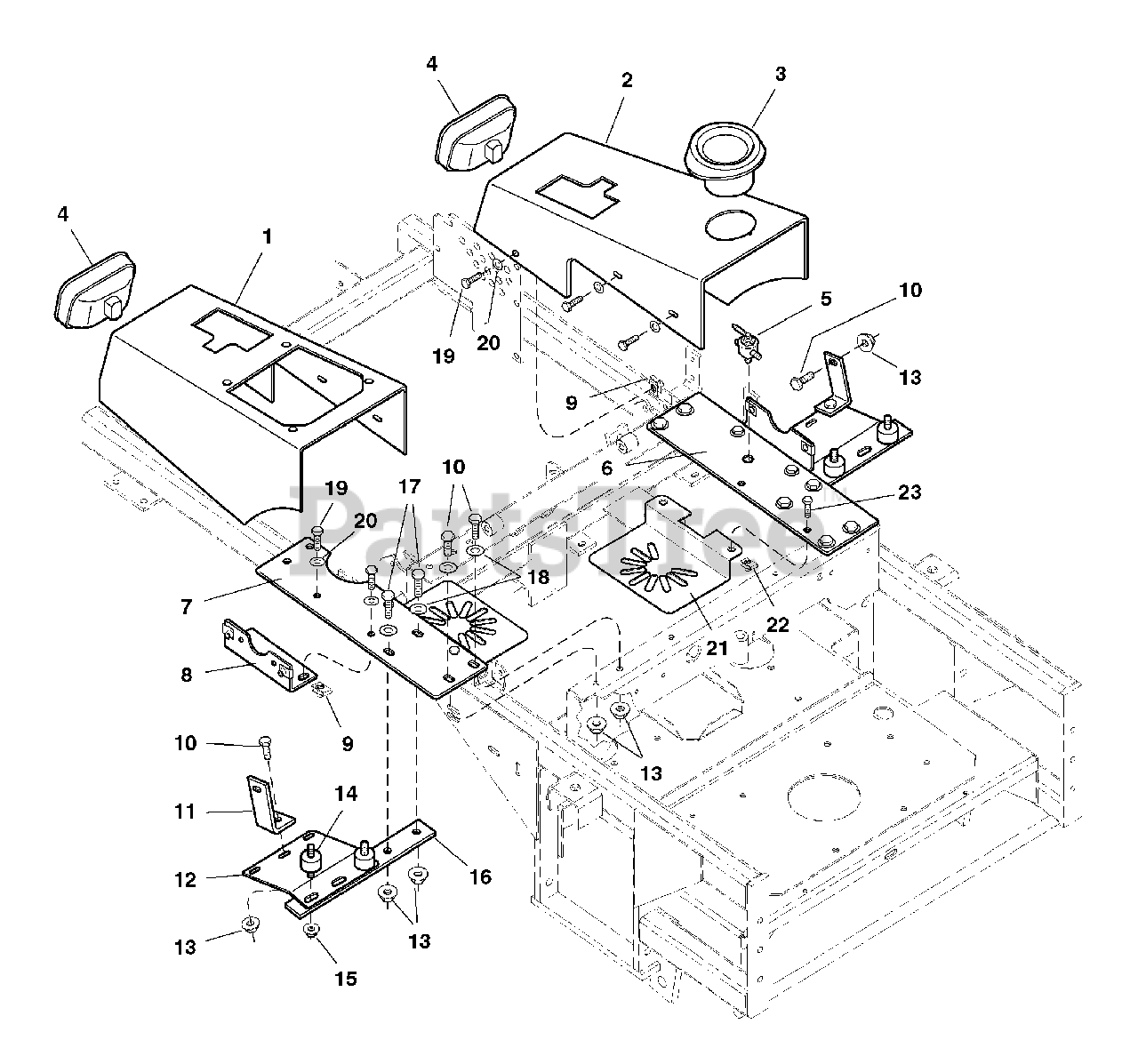

Control Cover & Mount Group (7012ccmg) Parts Diagram

  • Title

1

Simplicity 1846424

CONTROL COVER-LH

$

$

Not available

2

Simplicity 1846453

CONTROL COVER-RH

$

$

Not available

3

Simplicity 1719392SM

CUP HOLDER

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1719230SM

HEADLIGHT ASSEMBLY, Complete

$48.99

$

Usually ships in 2-12 days

0

*

Simplicity 1719230SM

Headlight

$48.99

$

Usually ships in 2-12 days

0

*

Simplicity 1719227SM

Bezel

$

$

Not available

5

Simplicity 5022030SM

VALVE, Fuel Shut Off

$43.99

$

In Stock, only 1 left!

0

6

Simplicity 1846426

COVER MOUNT-RH

$

$

Not available

7

Simplicity 1846417

COVER MOUNT-LH

$

$

Not available

8

Simplicity 1845892

BRACKET, Cover Mount
(Superseded to 5045892E)

$

$

Not available

9

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 10

0

10

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1845922

BRACKET, Cover Support

$

$

Not available

12

Simplicity 1845887

DEBRIS GUARD
(Superseded to 5045887E)

$

$

Not available

13

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5022395SM

RUBBER ISOLATOR

$29.99

$

Usually ships in 2-12 days

0

15

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1845890

TANK MOUNT BAR
(Superseded to 5045890E)

$

$

Not available

17

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

18

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

20

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1846472

FAN SHIELD

$

$

Not available

22

Simplicity 5022665SM

BODY CLIP, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0
