ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Fuel Tank & Bumper Group (7012ftbg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

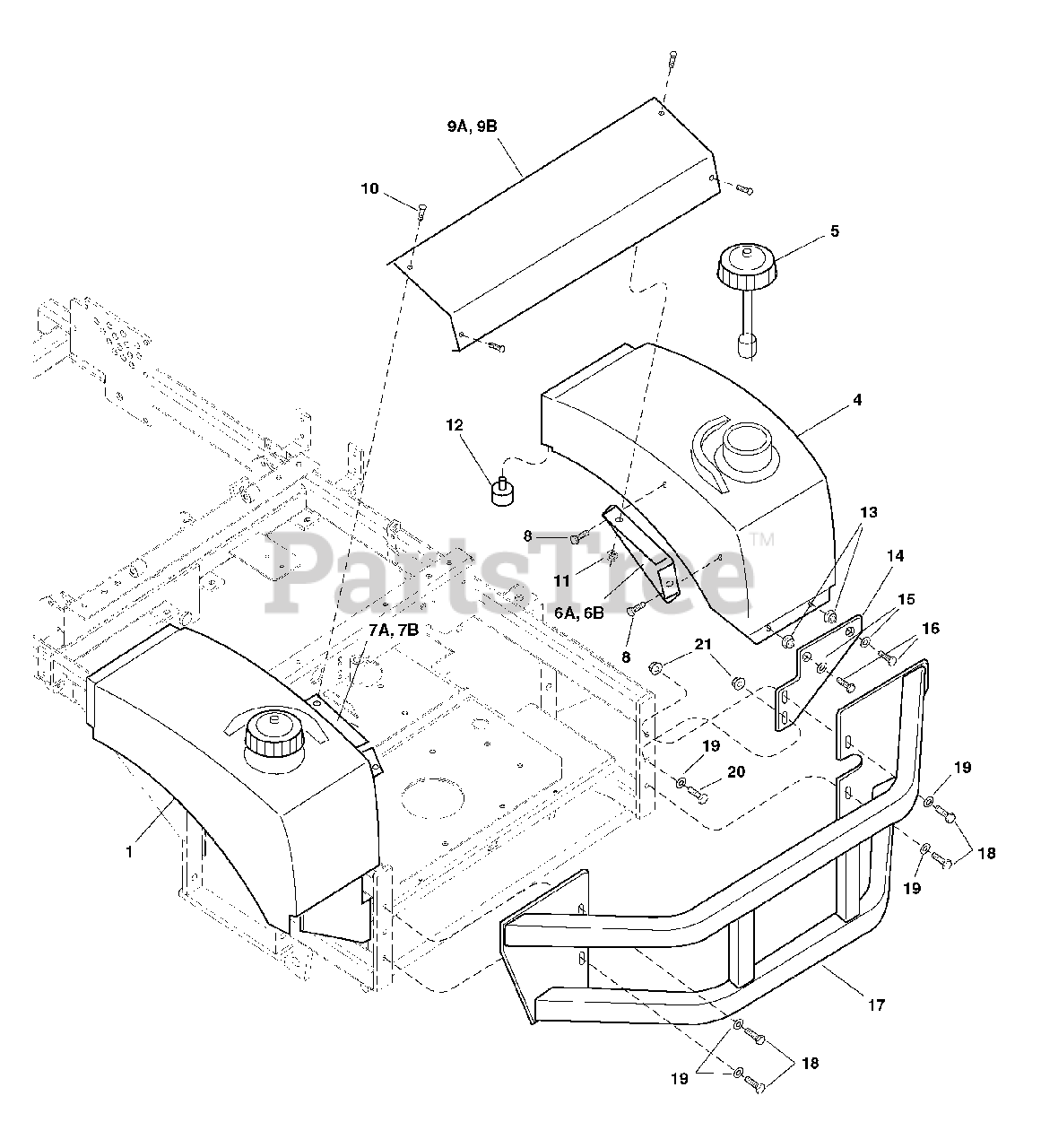

Fuel Tank & Bumper Group (7012ftbg) Parts Diagram

  • Title

1

Simplicity 5045495KITSM

FUEL TANK-LH, Complete (Includes Ref 2 & 3)

$365.99

$

Usually ships in 2-12 days

0

2

Simplicity 1654930SM

RUBBER BUSHING (not shown)

$7.99

$

In Stock, Qty 17

0

3

Simplicity 1674231SM

ELBOW FITTING (not shown)

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 5045494KITSM

FUEL TANK-RH, Complete (Includes Ref 2 & 3)

$307.99

$

Usually ships in 2-12 days

0

5

Simplicity 5022158SM

CAP, w/ Gauge
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 6

0

6A

Simplicity 1846457

MOUNT, Tie Bar-RH (sn: 101-200)

$

$

Not available

6B

Simplicity 1846489

MOUNT, Tie Bar-RH (sn: 201 & up)
(Superseded to 5046489E)

$

$

Not available

7A

Simplicity 1846458

MOUNT, Tie Bar-LH (sn: 101-200)

$

$

Not available

7B

Simplicity 1846490

MOUNT, Tie Bar-LH (sn: 201 & up)
(Superseded to 5046490E)

$

$

Not available

8

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

9A

Simplicity 1846459

FUEL TANK TIE BAR (sn: 101-200)

$

$

Not available

9B

Simplicity 1846491

FUEL TANK TIE BAR (sn: 201 & up)
(Superseded to 5046491E)

$

$

Not available

10

Simplicity 5025299X6SM

SCREW, Allen Hd, 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025126SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 5022395SM

RUBBER ISOLATOR

$29.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022394SM

RUBBER BUSHING

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1845510

FUEL TANK MOUNT PLATE
(Superseded to 5045510E)

$

$

Not available

15

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 1845589

BUMPER
(Superseded to 5045589E)

$

$

Not available

18

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

19

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

20

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

21

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0
