ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Instrument Panel Group (7012ipg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

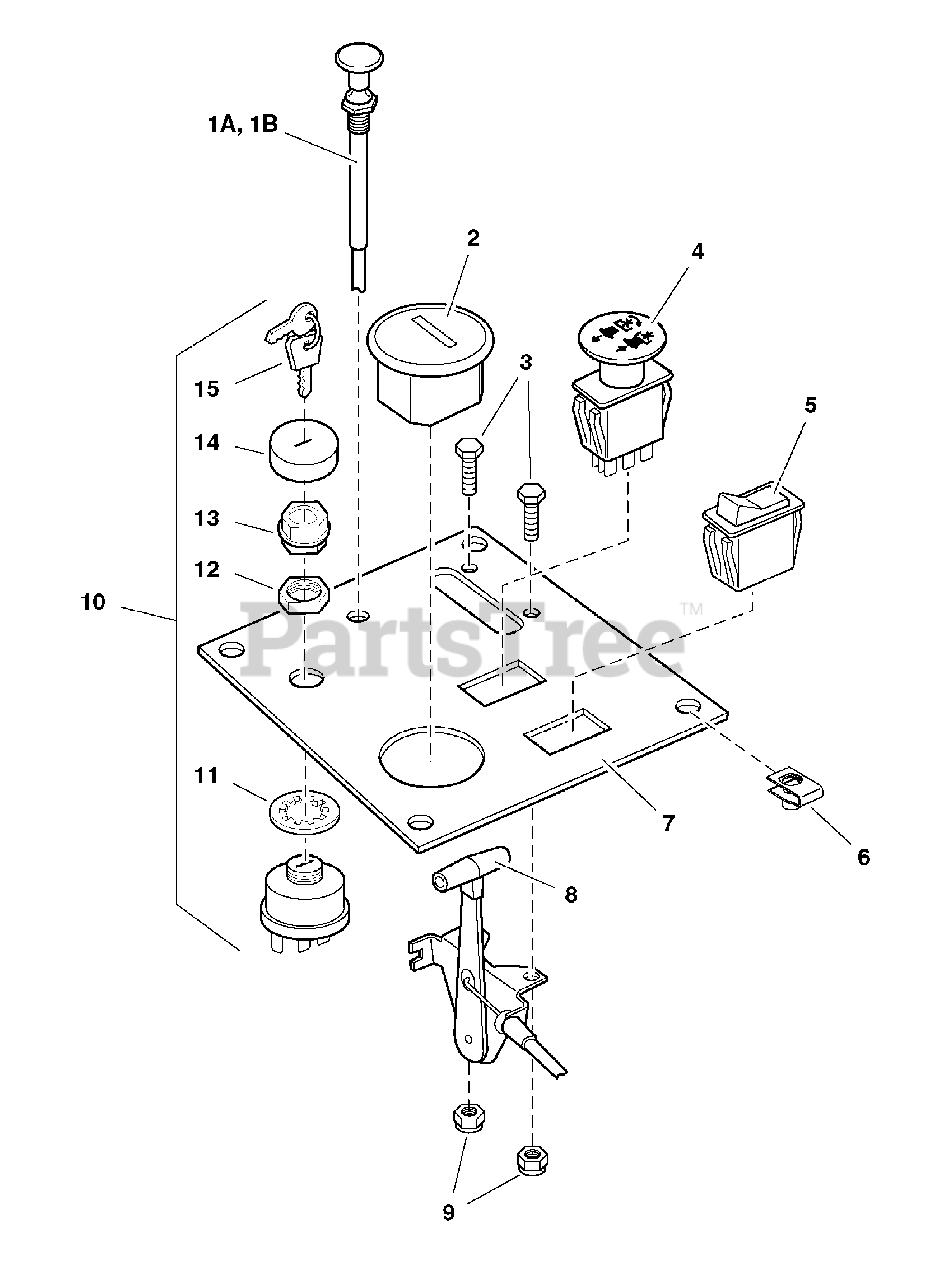

Instrument Panel Group (7012ipg) Parts Diagram

  • Title

1A

Simplicity 5022613SM

CABLE, Choke Control (S/N 101-540)

$57.99

$

Usually ships in 2-12 days

0

1B

Simplicity 5021675SM

CABLE, Choke Control (S/N 541 & up)

$63.99

$

In Stock, only 1 left!

0

2

Simplicity 5020060SM

HOURMETER

$250.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 13

0

4

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

5

Simplicity 1703799SM

SWITCH, Headlight

$31.99

$

In Stock, only 2 left!

0

6

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 10

0

7

Simplicity 1846482

INSTRUMENT PANEL

$

$

Not available

8

Simplicity 5021662SM

CABLE, Throttle Control

$80.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025126SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1686734SM

SWITCH, Ignition, Complete (Includes Ref 11-15)

$32.99

$

In Stock, Qty 17

0

11

Simplicity 5022793

WASHER

$

$

Not available

12

Simplicity 5022792

STEEL NUT

$2.49

$

Usually ships in 2-12 days

0

13

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1717163SM

KEY, Ignition, Molded (set of 2)

$8.99

$

In Stock, Qty 12

0
