ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Mower Rear Mount Group (7012mrmg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

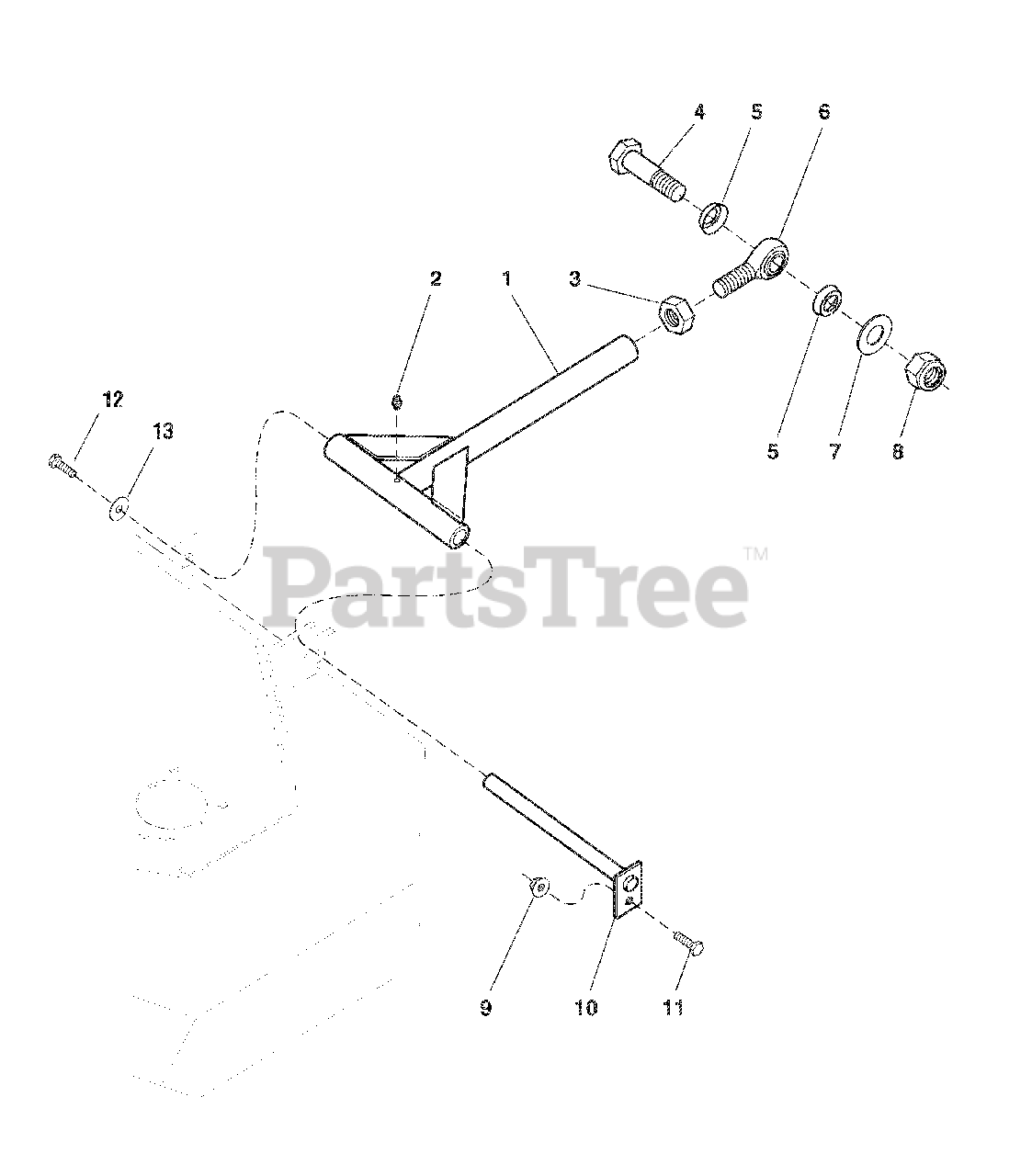

Mower Rear Mount Group (7012mrmg) Parts Diagram

  • Title

1

Simplicity 1845009

61" DECK PUSHER BAR
(Superseded to 5045009E)

$

$

Not available

2

Simplicity 5020095SM

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025093SM

NUT, Hex, Jam, 3/4-16

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 502526524

CAPSCREW, Hex Hd, 3/4-16 x 3

$

$

Not available

5

Simplicity 5022111SM

ROD END SEAL

$15.99

$

In Stock, only 4 left!

0

6

Simplicity 5022039SM

BALL JOINT, 3/4-16

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 5025284SM

NUT, Hex, Nylon Lock, 3/4-16

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, only 2 left!

0

10

Simplicity 1845037

PUSHER BAR MOUNT PIN
(Superseded to 5045037E)

$

$

Not available

11

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

12

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

13

Simplicity 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0
