ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Parking Brake Group - Upper (7012pbgu) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

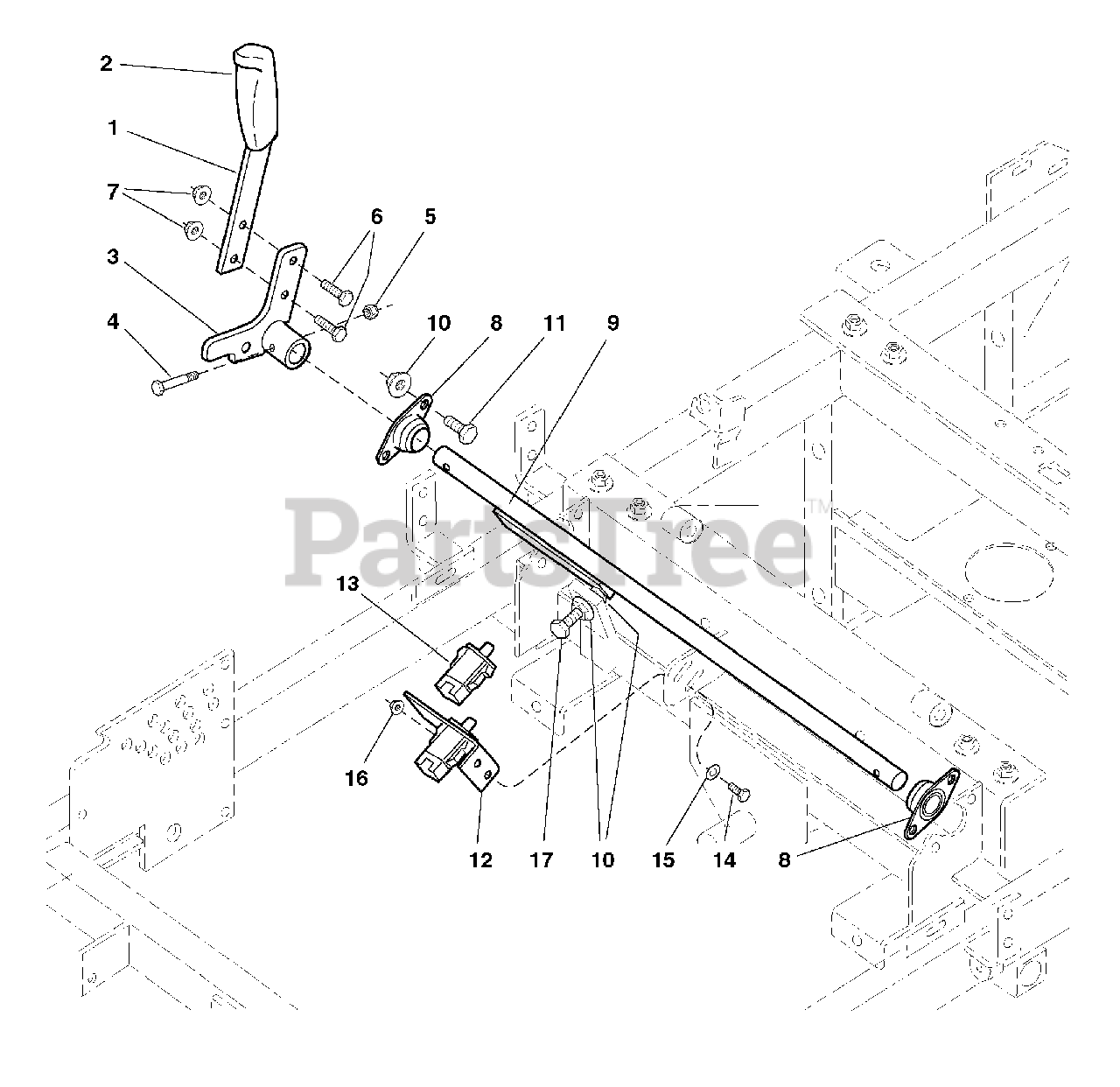

Parking Brake Group - Upper (7012pbgu) Parts Diagram

  • Title

1

Simplicity 1845619

BRAKE HANDLE
(Superseded to 5045619E)

$

$

Not available

2

Simplicity 1722302SM

GRIP

$8.99

$

In Stock, Qty 6

0

3

Simplicity 1845616

BRAKE HANDLE MOUNT
(Superseded to 5045616E)

$

$

Not available

4

Simplicity 5025010X14SM

CAPSCREW, Hex Hd, 1/4-20 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

8

Simplicity 5021098SM

BEARING, Flange

$14.99

$

In Stock, Qty 15

0

9

Simplicity 1845610

BRAKE HANDLE SHAFT
(Superseded to 5045610E)

$

$

Not available

10

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, Qty 6

0

11

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

In Stock, only 3 left!

0

12

Simplicity 1845621

SWITCH MOUNT BRACKET
(Superseded to 5045621E)

$

$

Not available

13

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

Note: (See Electrical Group)

$15.99

$

In Stock, Qty 20+

0

14

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

15

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 5025058X14

CAPSCREW, Hex Hd, TFL, 3/8-16 x 1-3/4
(Superseded to 5025058X14YP)

$3.49

$

Usually ships in 2-12 days

0
