ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Wheels & Tires Group (7012wtg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

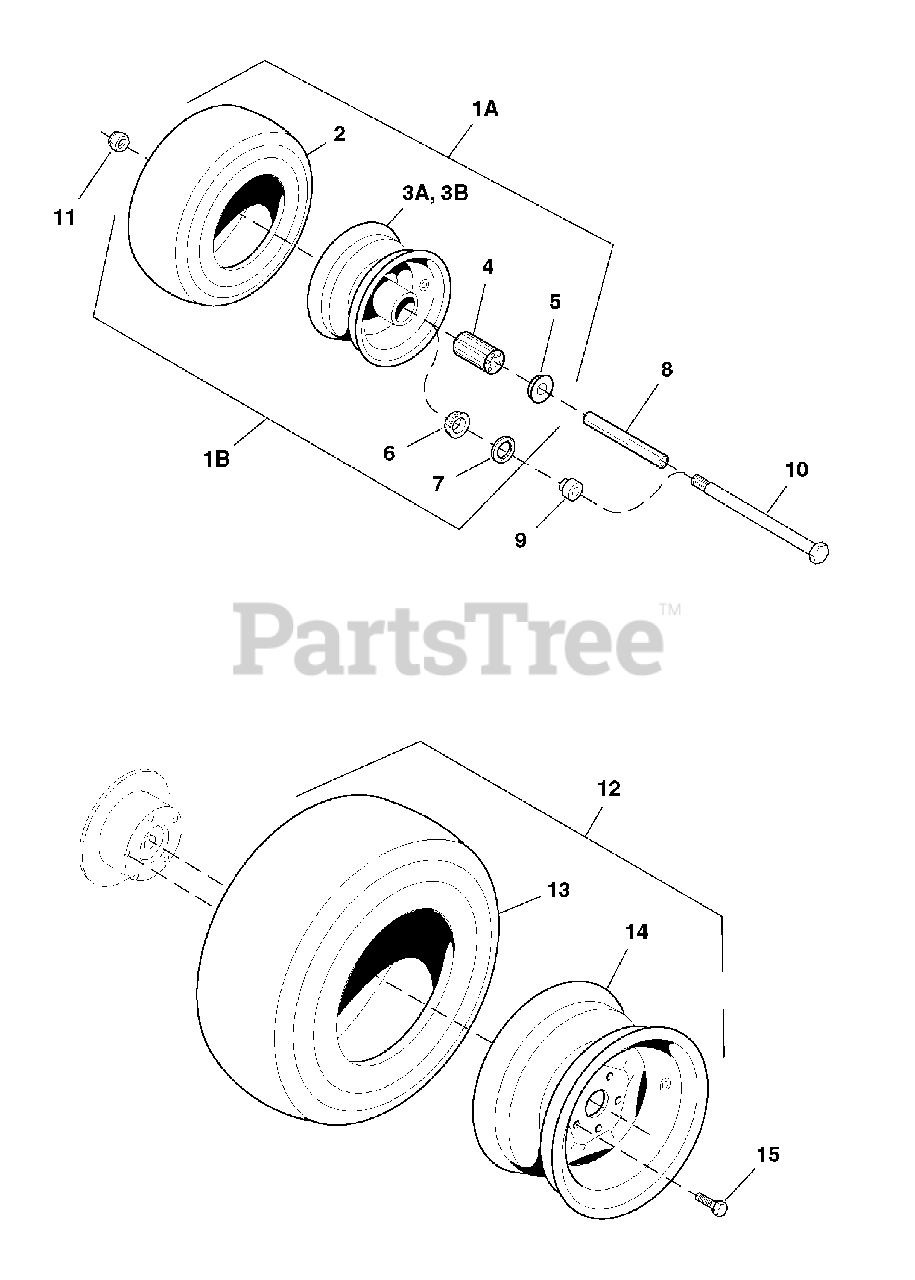

Wheels & Tires Group (7012wtg) Parts Diagram

  • Title

1A

Simplicity 5022029S

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete (Includes Ref 2, 3A, 4 & 5) (for serial no. 101-200)

$

$

Not available

1B

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete

Note: (includes Ref. No. 2, 3B, 6 & 7) (for serial no. 201 & up)

$168.99

$

In Stock, only 1 left!

0

2

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

$

$

Not available

3A

Simplicity 5022029S2

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete (Includes Ref 4 & 5) (for serial no. 101-200)

$

$

Not available

3B

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete

Note: (includes Ref. No. 6 & 7) (for serial no. 201 & up)

$102.99

$

In Stock, only 1 left!

0

4

Simplicity 5021042SM

BEARING, Roller (2 per tire)

$14.99

$

In Stock, only 2 left!

0

5

Simplicity 5021043SM

RETAINER, Bearing (2 per tire)

$7.49

$

In Stock, only 3 left!

0

6

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (2 per tire)

$12.99

$

In Stock, only 1 left!

0

7

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

In Stock, only 1 left!

0

8

Simplicity 5022100SM

AXLE, Front Caster (for serial no. 101-200)

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 5047103SM

ADAPTER, Caster Wheel (2 per tire) (for serial no. 201 & up)

$10.99

$

In Stock, only 1 left!

0

10

Simplicity 502501760

CAPSCREW, Hex Hd, 1-2/13 x 7-1/2

$

$

Not available

11

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1-2/13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

12

Simplicity 5022396SSM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.5 x 12, Complete (Includes Ref 10 & 11)

$

$

Not available

13

Simplicity 50223961

TIRE, Rear, 23 x 10.5 x 12

$

$

Not available

14

Simplicity 5022396S2

WHEEL ASSEMBLY, Rear, for 23 x 10.5 x 12 Tires

$

$

Not available

15

Simplicity 5022215SM

WHEEL LUG, 1/2 x 1-5/8

$9.99

$

In Stock, only 1 left!

0
