ZT 26520 (7800633) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Wheel & Tire Group (7501567_7501588) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

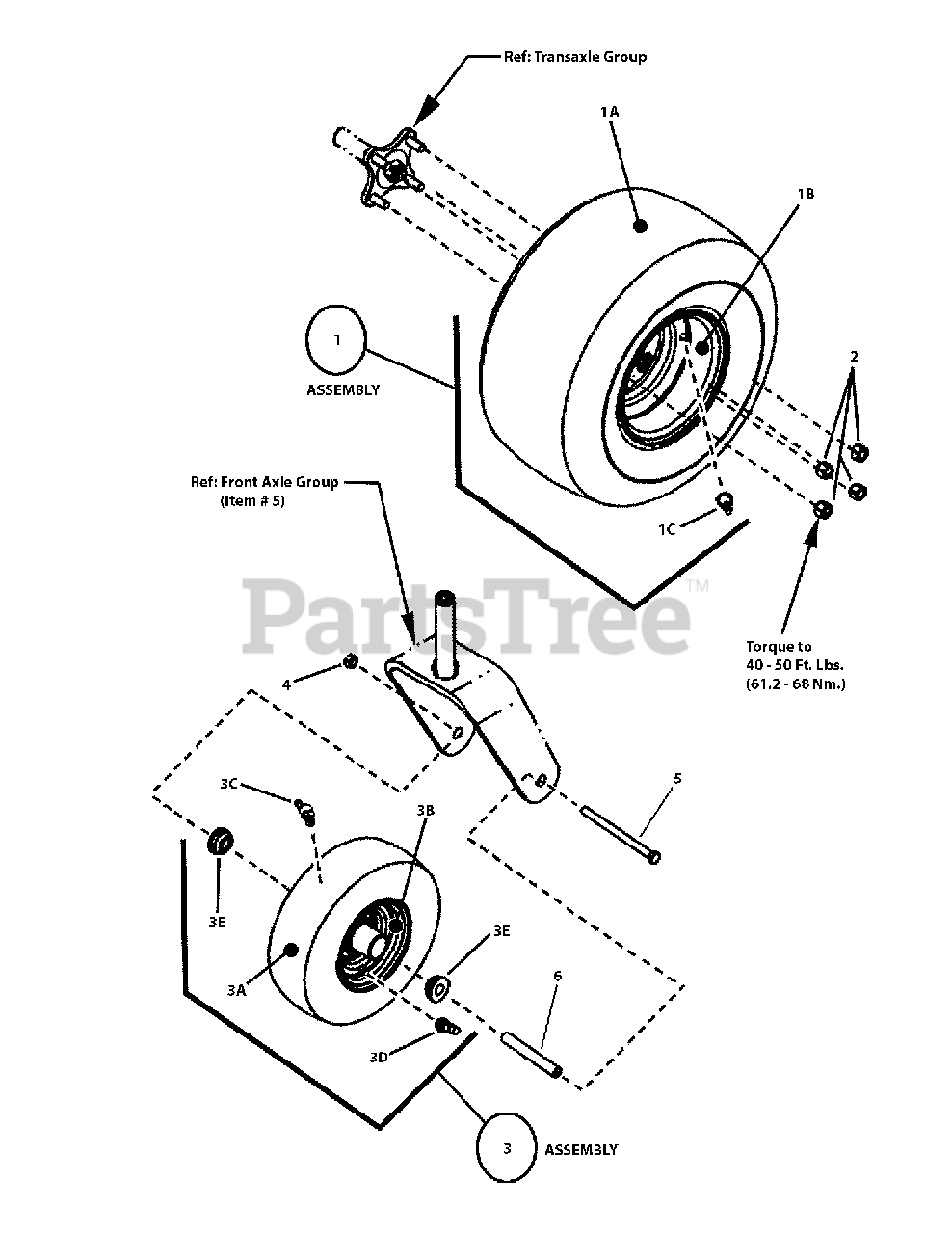

Wheel & Tire Group (7501567_7501588) Parts Diagram

  • Title

1

Simplicity 7103417

ASSEMBLY, Tire & Wheel (Rim) (incl. 3 items shown below)
(Superseded to 7103417YP)

Note: (used on 7800579, ZT27460)

$246.99

$

Usually ships in 2-12 days

0

1A

Simplicity 7072707

TIRE, 20 x 10.00-8 K500 Tread Kenda
(Superseded to 1722826SM)

$175.99

$

Usually ships in 2-12 days

0

1B

Simplicity 7078113

RIM, 8 x 7.00, 4 Hole
(Superseded to 7078113SM)

$131.99

$

Usually ships in 2-12 days

0

1C

Simplicity 7012234

AIR VALVE STEM, Snap-In
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

1

Simplicity 7103403

ASSEMBLY, Tire & Wheel (Rim) (incl. 3 items shown below)
(Superseded to 7103403YP)

Note: (used on 7800633, ZT26520)

$262.99

$

In Stock, only 2 left!

0

1A

Simplicity 7072706

TIRE, 18 x 9.50, K500 Tread Kenda
(Superseded to 7072706YP)

$157.99

$

Usually ships in 2-12 days

0

1B

Simplicity 7078113

RIM, 8 x 7.00, 4 Hole
(Superseded to 7078113SM)

$131.99

$

Usually ships in 2-12 days

0

1C

Simplicity 7012234

AIR VALVE STEM, Snap-In
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

2

Simplicity 7027192

LUG NUT, 1/2 - 20 Tapered Seat, YZ
(Superseded to 7027192SM)

$

$

Not available

3

Simplicity 1734013

ASSEMBLY, Wheel & Tire, ZTS 11 x 4-5 (incl. items 3A thru 3E)
(Superseded to 1734013SM)

$113.99

$

In Stock, Qty 17

0

3A

Simplicity 1734875

TIRE, 11 x 4-5
(Superseded to 1734013SM)

$113.99

$

In Stock, Qty 17

0

3B

Simplicity 1734876

RIM, w/bushings
(Superseded to 1734013SM)

$113.99

$

In Stock, Qty 17

0

3C

Simplicity 7104428

GREASE FITTING, (8M x 1 threads, 45 degree)
(Superseded to 7104428YP)

$5.99

$

In Stock, Qty 7

0

3D

Simplicity 2172353

VALVE, Air
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

3E

Simplicity 1739281

BUSHING, 5/8" I.D.
(Superseded to 1759320YP)

$13.99

$

In Stock, Qty 16

0

4

Simplicity 7090839

NUT, 7/16-14 Hex Center Lock, GR 5 or B
(Superseded to 7090839SM)

$5.49

$

In Stock, Qty 7

0

5

Simplicity 7091772

SCREW, 7/16-14NC x 6", Hex Head Cap, GR 5, YZ
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0

6

Simplicity 1734841

TUBE, Caster Wheel, 0.625 OD 4.53 OLG 0.625 OD
(Superseded to 1734841SM)

$13.99

$

In Stock, Qty 20+

0
