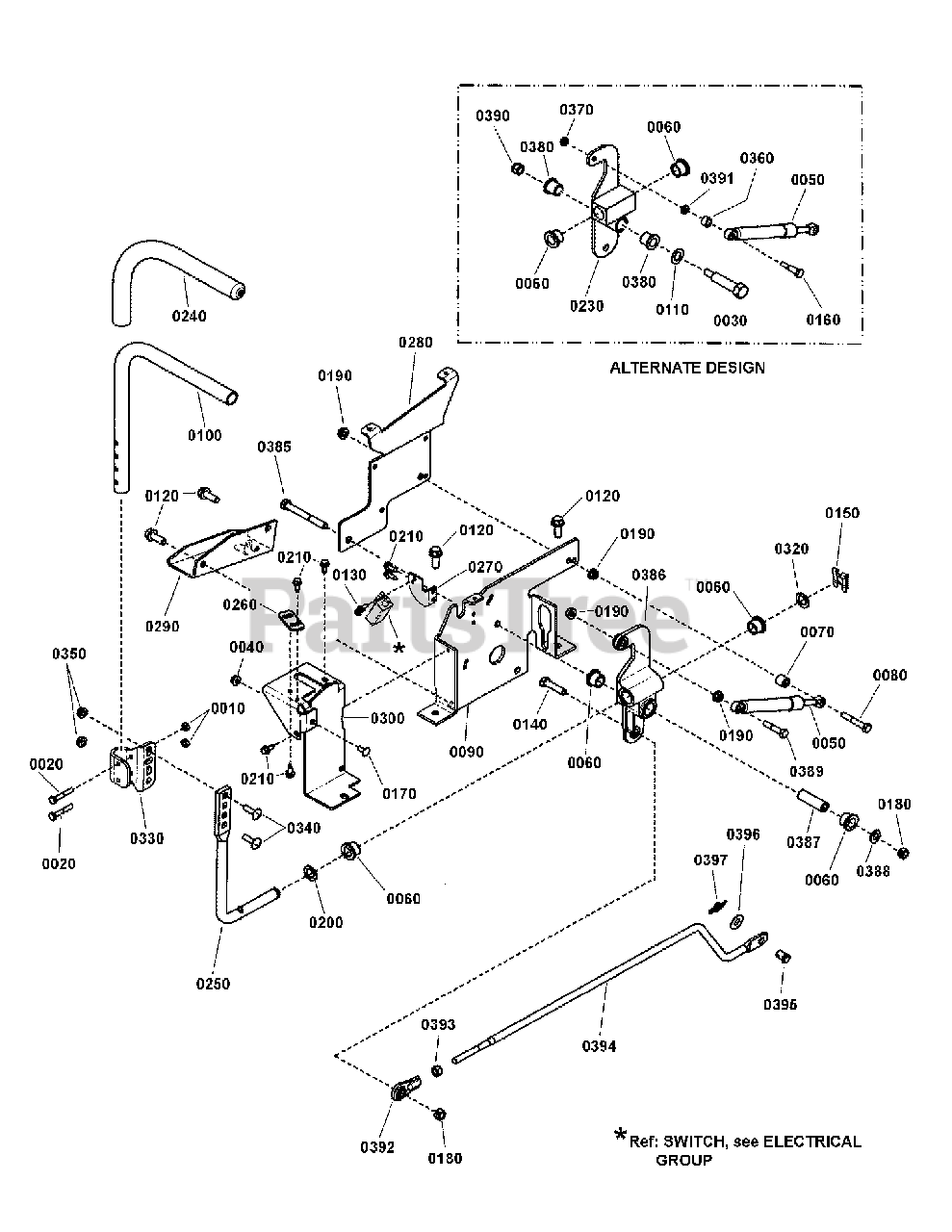

ZT 26520 (7800766-00) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Control Group, RH, w/Electric HOC (7502145dev) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

Control Group, RH, w/Electric HOC (7502145dev) Parts Diagram

  • Title

0010

Simplicity 7090372

NUT, 1/4-20 Hex Center Lock, GR B
(Superseded to 703954)

$

$

Not available

0020

Simplicity 80002713

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703234)

Note: (Was 1922837)

$4.49

$

In Stock, only 1 left!

0

0030

Simplicity 7200012

SHOULDER BOLT, 3/8-16
(Superseded to 7200012SM)

$15.99

$

Usually ships in 2-12 days

0

0040

Simplicity 80002727

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

Note: (Was 1960294)

$4.49

$

In Stock, Qty 11

0

0050

Simplicity 5103511

DAMPENER, Control
(Superseded to 5103511YP)

Note: (Was 5100728)

$63.99

$

In Stock, Qty 9

0

0060

Simplicity 7013874

BUSHING, Bronze, 5/8 x 5/8

$5.49

$

Usually ships in 2-12 days

0

0070

Simplicity 7023206

SPACER, .625 OD x .380 ID x .564 L
(Superseded to 7023206YP)

$8.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7027174

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703867)

$4.99

$

In Stock, only 3 left!

0

0090

Simplicity 7043330BM

CONTROL BRACKET, RH
(Superseded to 7043330BMYP)

$33.99

$

Usually ships in 2-12 days

0

0100

Simplicity 7301168BM

HANDLE, Adjustable
(Superseded to 7301168BZYP)

$32.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1670971

WASHER, Thrust .562 x 1.000 x .031
(Superseded to 1670971SM)

$4.99

$

In Stock, Qty 6

0

0120

Simplicity 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

0130

Simplicity 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.99

$

In Stock, only 3 left!

0

0140

Simplicity 7091497

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

0150

Simplicity 7104704

CLIP, Spring, 5/8 OD Shaft
(Superseded to 7104704YP)

$5.49

$

Usually ships in 2-12 days

0

0160

Simplicity 7900003

SHOULDER BOLT, 1/4-20 x .313 Dia.
(Superseded to 7900003SM)

$4.99

$

In Stock, only 4 left!

0

0170

Simplicity 7091573

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

0180

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 12

0

0190

Simplicity 80002728

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.99

$

In Stock, Qty 20+

0

0200

Simplicity 7091628

WASHER, .64 x .99 x .05 Flat, YZ
(Superseded to 7091628SM)

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

Note: (Was 7090290)

$4.49

$

In Stock, Qty 20+

0

0230

Simplicity 7400001BM

WELDMENT, Control Bracket, RH - Black
(Superseded to 7400001BMYP)

$178.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7100051

GRIP, Handle
(Superseded to 7100051YP)

$11.99

$

Usually ships in 2-12 days

0

0250

Simplicity 7104677

ROD, Handle, Adjustable
(Superseded to 7104677YP)

$42.99

$

In Stock, only 1 left!

0

0260

Simplicity 7300009BM

PLATE, Foward/Reverse Adjust
(Superseded to 7300009BMYP)

$8.49

$

Usually ships in 2-12 days

0

0270

Simplicity 7300032BM

BRACKET, Switch
(Superseded to 7300032BMYP)

$10.99

$

Usually ships in 2-12 days

0

0280

Simplicity 7301072BM

BRACKET, Fender Support, RH
(Superseded to 7301072BMYP)

$24.99

$

Usually ships in 2-12 days

0

0290

Simplicity 7301103BM

BRACKET, Mount, Motor
(Superseded to 7301103BMYP)

$

$

Not available

0300

Simplicity 7301129BM

BRACKET, Guide, Stick, Control, RH
(Superseded to 7301129BMYP)

$56.99

$

Usually ships in 2-12 days

0

0320

Simplicity 7900016

WASHER, 5/8 ID x 1.00 OD x .065 Nylon
(Superseded to 7900016SM)

$3.49

$

Usually ships in 2-12 days

0

0330

Simplicity 7074628

BRACKET, Handle Adjustment
(Superseded to 7074628YP)

$9.49

$

Usually ships in 2-12 days

0

0340

Simplicity 7091714

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5
(Superseded to 703483)

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1935048

NUT, 5/16-18 Hex Flange Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 7200006

SPACER, .33 x .50 x .355, Yellow
(Superseded to 7200006SM)

$11.99

$

In Stock, only 2 left!

0

0370

Simplicity 7092126

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

Note: (Was 7091603)

$5.49

$

In Stock, Qty 12

0

0380

Simplicity 7014409

BEARING, Flange, 9/16
(Superseded to 7014409SM)

$7.49

$

In Stock, Qty 6

0

0385

Simplicity 1922918

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 703874)

$4.49

$

In Stock, Qty 9

0

0386

Simplicity 7100717

ARM, Control, Die Cast Aluminum
(Superseded to 7100717YP)

$31.99

$

Usually ships in 2-12 days

0

0387

Simplicity 7100714

SPACER, Sleeve, RZT
(Superseded to 7100714YP)

$17.99

$

Usually ships in 2-12 days

0

0388

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0389

Simplicity 7091540

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, YZ
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

0390

Simplicity 7091299

NUT, 3/8-16 Hex Nyloc, YZ
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0391

Simplicity 7100415

WASHER, 1/4" Flat, Hardened
(Superseded to 7100415SM)

$4.99

$

Usually ships in 2-12 days

0

0392

Simplicity 7100743

ROD END, (3/8-24 thread)
(Superseded to 7100743YP)

$10.99

$

Usually ships in 2-12 days

0

0393

Simplicity 7091630

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

0394

Simplicity 7104168

ROD, Link Foward/Reverse (3/8-24 thread)
(Superseded to 7104168YP)

$32.99

$

Usually ships in 2-12 days

0

0395

Simplicity 7900000

PIN, 7/16 x 1" Clevis
(Superseded to 7900000SM)

$6.99

$

Usually ships in 2-12 days

0

0396

Simplicity 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

0397

Simplicity 7091594

COTTER PIN, 1/2 Self, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, Qty 10

0
