ZT 27460 (7800768-01) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton Transaxle Group, ZT-2800 (7501591) Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

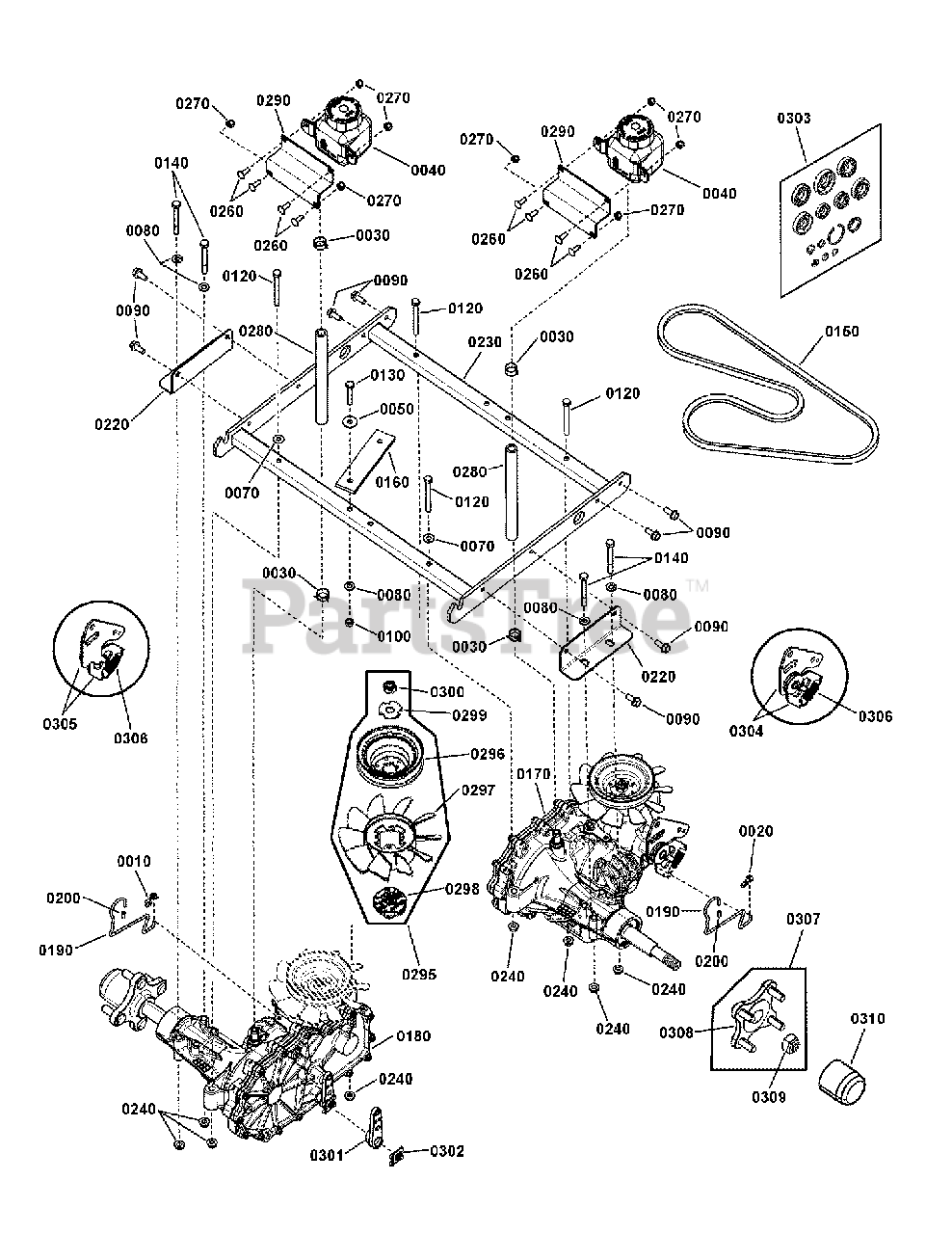

Transaxle Group, ZT-2800 (7501591) Parts Diagram

  • Title

0010

Simplicity 1717024

CLIP, Rod End Clevis RH for .188 Dia. Rod
(Superseded to 1717024SM)

$7.49

$

In Stock, only 2 left!

0

0020

Simplicity 1725550

CLIP, Rod End Clevis LH for .188 Dia. Rod
(Superseded to 1725550SM)

$5.99

$

In Stock, only 1 left!

0

0030

Simplicity 5025474

CLAMP, Hose, .75 Free Dia.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 5100473

RESERVOIR, Hydro Oil, 350 M
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

0050

Simplicity 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, Qty 6

0

0070

Simplicity 7015686

SHIM WASHER, 5/16 I.D.
(Superseded to 7015686SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 7091575

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0120

Simplicity 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, GR 5, YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0130

Simplicity 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 7091908YP)

$4.99

$

In Stock, only 2 left!

0

0140

Simplicity 7091944

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0150

Simplicity 7100102

V-BELT, Hydro Drive (HA Section, 58" EL)
(Superseded to 7100102SM)

Note: (HA Wrapped Section; 58" Effective Length)

$43.99

$

Usually ships in 2-12 days

0

0160

Simplicity 7104674

RUBBER, Anti-Rotation
(Superseded to 7104674YP)

$15.99

$

Usually ships in 2-12 days

0

0170

Simplicity 7103418

TRANSAXLE, Hydro Gear ZT-2800 LH (ZK-JPBB-3F7B-1RLX)
(Superseded to 7103418YP)

$1481.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7103419

TRANSAXLE, Hydro Gear ZT-2800 RH (ZK-MPBB-3F7C-1RLX)
(Superseded to 7103419YP)

$1310.99

$

Usually ships in 2-12 days

0

0190

Simplicity 7103512

ROD, Roll Release
(Superseded to 7103512YP)

$19.99

$

In Stock, only 1 left!

0

0200

Simplicity 7103537

CAP, Vinyl
(Superseded to 7103537YP)

$3.49

$

Usually ships in 2-12 days

0

0220

Simplicity 7300000BM

BRACKET, Transaxle Support
(Superseded to 7300000BMYP)

$12.99

$

Usually ships in 2-12 days

0

0230

Simplicity 7400288BM

WELDMENT, Transaxle Support
(Superseded to 7400288BMYP)

$210.99

$

Usually ships in 2-12 days

0

0240

Simplicity 720145

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0260

Simplicity 7091530

BOLT, 1/4-20 x 3/4" Round Head Short Square Neck Carriage, GR 5, YZ
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

0270

Simplicity 7091603

NUT, 1/4-20 Hex Nyloc, YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 283846

HOSE
(Superseded to 703343)

$12.99

$

Usually ships in 2-12 days

0

0290

Simplicity 7301169BZ

BRACKET, Tank, Expansion
(Superseded to 7301169BZYP)

$6.99

$

Usually ships in 2-12 days

0

0295

KIT, Fan & Pulley (Incl. 0296 thru 0300)

Note: (Hydro-Gear # 71721)

$

$

Not available

0296

PULLEY, 4-1/2 Inch

Note: (Hydro-Gear # 50302)

$

$

Not available

0297

FAN, 7.0 Inch (10 Blade)

Note: (Hydro-Gear # 52315)

$

$

Not available

0298

HUB

Note: (Hydro-Gear # 52366)

$

$

Not available

0299

WASHER, OD Slotted, .53 x 1.63 x .0

Note: (Hydro-Gear # 51523)

$

$

Not available

0300

NUT, 1/2-20 Hex Jam, w/Patch

Note: (Hydro-Gear # 44133)

$

$

Not available

0301

ARM, Brake

Note: (Hydro-Gear # 52172)

$

$

Not available

0302

CLIP, Retaining

Note: (Hydro-Gear # 52027)

$

$

Not available

0303

KIT, Seal

Note: (Hydro-Gear # 71410)

$

$

Not available

0304

KIT, LH Arm Control

$

$

Not available

0305

KIT, RH Arm Control

$

$

Not available

0306

SPRING, Extension

$

$

Not available

0307

KIT, Hub Replacement (Incldes Ref. Nos. 0308 & 0309)

$

$

Not available

0308

HUB, EZT Trans (Included in Ref. No. 0307)

$

$

Not available

0309

NUT, 3/4-16 Hex Lock (Included in Ref. No. 0307)

Note: (Hydro-Gear # 50863)

$

$

Not available

0310

CAP, Axle

Note: (Hydro-Gear # 53501)

$

$

Not available
