ZT 3000 B 2450 (5900662) - Simplicity ZT 3000 Series 50" Zero-Turn Mower, 24hp Seat & Floor Plate Group Parts Diagram

ZT 3000 Series 50" Zero-Turn Mower, 24hp

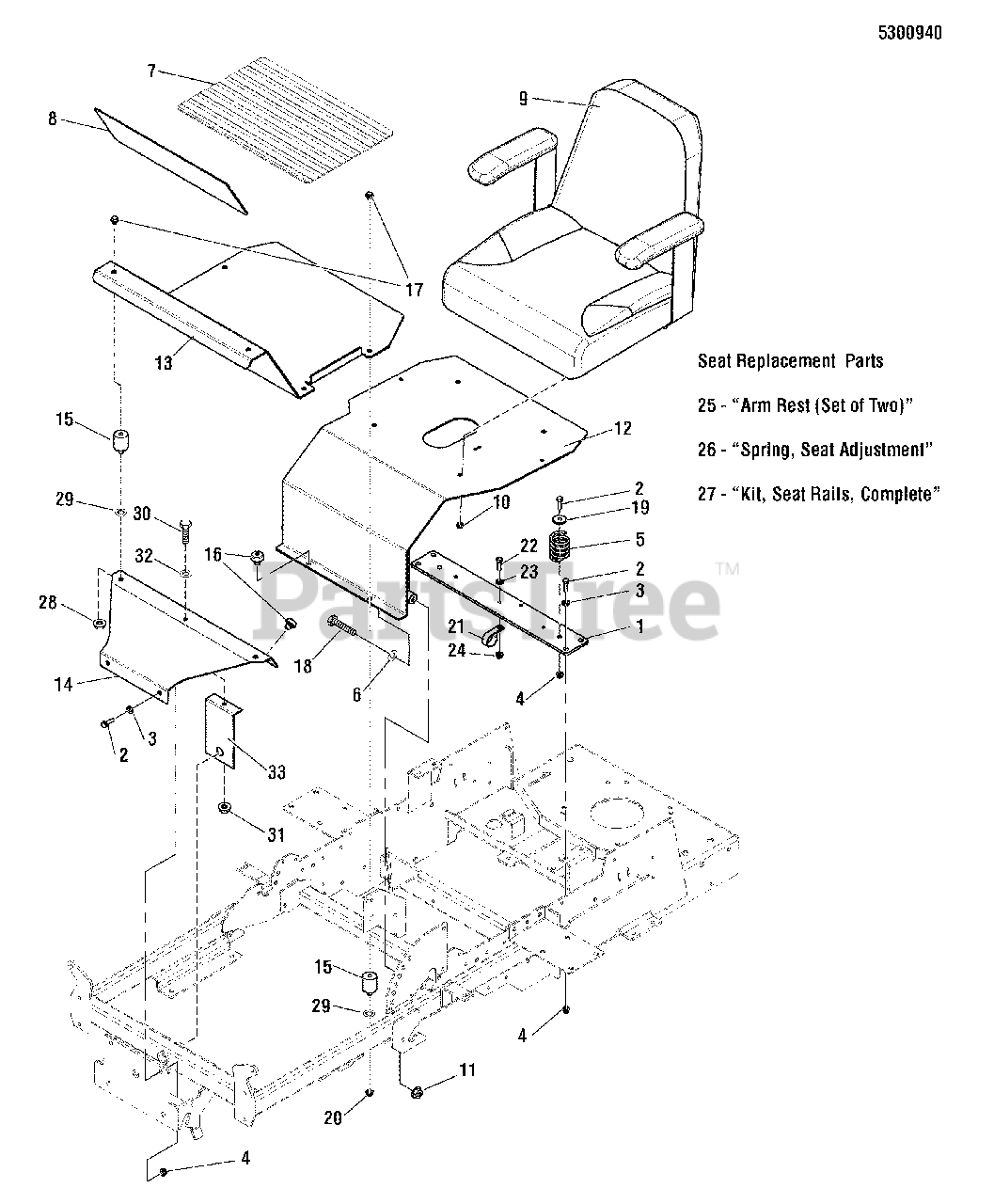

Seat & Floor Plate Group Parts Diagram

  • Title

1

Simplicity 5402937CSM

PLATE, SEAT SUPPORT, CONS Z - ORG

$

$

Not available

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

3

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$4.49

$

In Stock, Qty 11

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$15.99

$

In Stock, only 4 left!

0

6

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5100999SM

SAFETY WALK, FLOOR PLATE, 17.38 X 11.50

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 5101007SM

SAFETY WALK, FLOOR REST, 17.38 X 6.00

$34.99

$

Usually ships in 2-12 days

0

9

Simplicity 5061599SM

SEAT, XB-180, NO LOGO, BLACK

$788.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5402946CSM

WELD, SEAT PLATE - ORG

$364.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403043CSM

PLATE, FLOOR, CONSUMER Z - ORG

$119.99

$

Usually ships in 2-12 days

0

14

Simplicity 5403044CSM

PLATE, FLOOR, FRONT, CONS Z - ORG

$63.99

$

Usually ships in 2-12 days

0

15

Simplicity 35097

MOUNT, VIBRATION, 30 DURO
(Superseded to 35097GS)

$17.99

$

In Stock, Qty 11

0

16

Simplicity 197546

MOUNT, VIBRATION, RUBBER
(Superseded to 197546GS)

$8.49

$

In Stock, Qty 5

0

17

Simplicity 5025481SM

BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

$3.49

$

In Stock, only 2 left!

0

18

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2 GD5 YZ

$4.99

$

In Stock, Qty 11

0

19

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 5021500SM

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

25

Simplicity 1686907SM

ARM REST, SET OF TWO (SV)

$147.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 5061599X1

KIT, SEAT RAILS. COMPLETE (SV)
(Superseded to 5061599X1SM)

$204.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025480SM

WASHER, 3/8" ID, INTERNAL TOOTH

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 2 left!

0

31

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

33

Simplicity 5403372CSM

PLATE, SUPPORT, FRONT FLOOR - ORG

$

$

Not available
