ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Lift Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

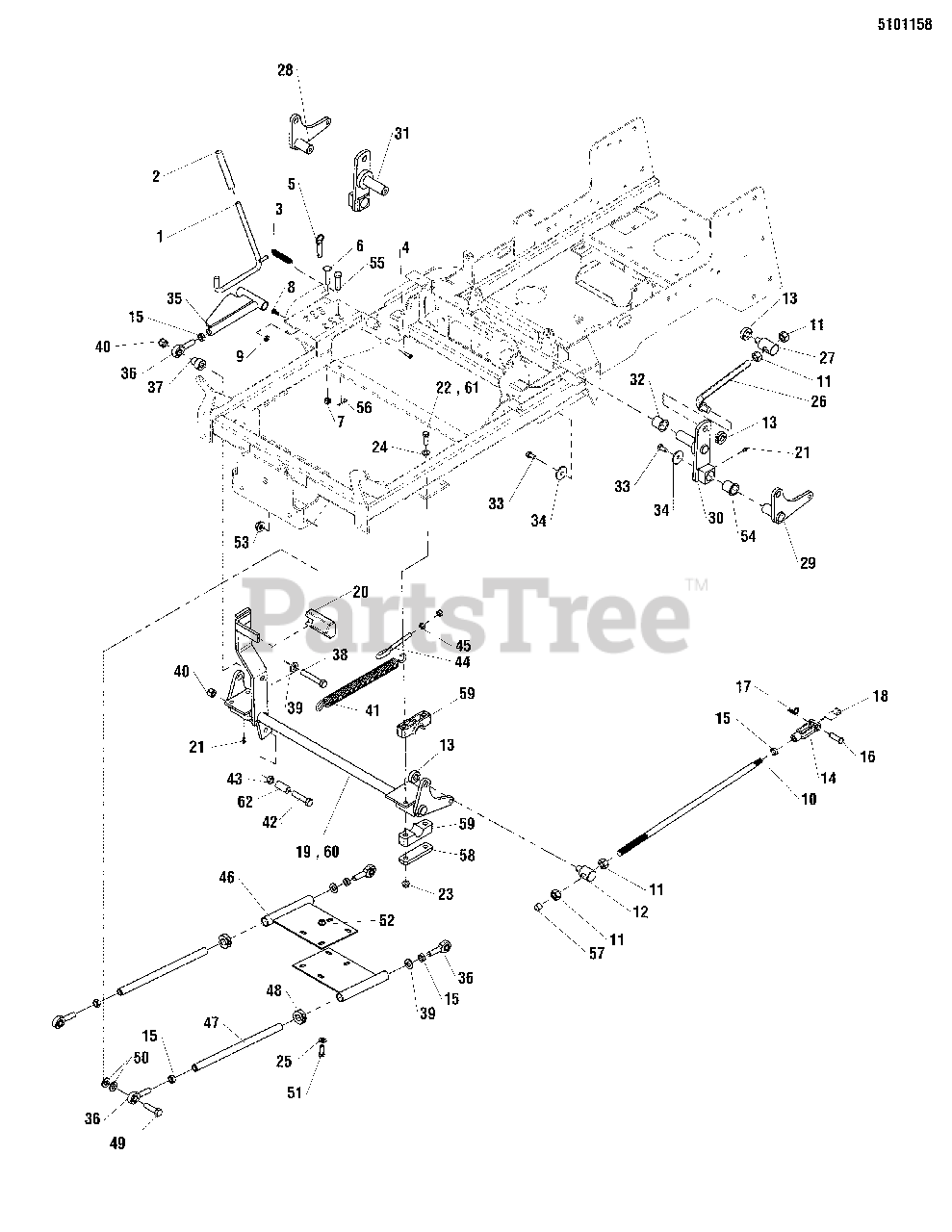

Lift Group Parts Diagram

  • Title

1

Simplicity 5061527A

WELD, ROD DECK LIFT - BLK
(Superseded to 5061527AYP)

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021880SM

GRIP, FOAM

$5.99

$

In Stock, only 2 left!

0

3

Simplicity 5020639SM

SPRING, EXTENSION

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025212X7SM

PIN, CLEVIS, 1/4 X 7/8

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, YP

$8.99

$

In Stock, only 2 left!

0

6

Simplicity 5025146X16SM

BOLT, 3/8-16 X 2, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

In Stock, only 3 left!

0

8

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

10

Simplicity 5049971SM

ROD,DECK LIFT ADJUSTMENT

$59.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025040SM

NUT, 5/8-11 HEX

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5045447SM

PIVOT, SPRING ROD

$26.99

$

Usually ships in 2-12 days

0

13

Simplicity 5020441SM

COLLAR, 5/8" SPLIT

$15.99

$

In Stock, only 3 left!

0

14

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$17.99

$

In Stock, only 4 left!

0

15

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, Qty 12

0

17

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.99

$

In Stock, Qty 10

0

18

Simplicity 5061780SM

BUSHING, .510 X .625 X .500

$5.99

$

In Stock, only 1 left!

0

19

Simplicity 5402540CSM

WELD, DECK LIFT SHAFT - IS500-ORG

Note: (S/N: 2013212178 & Below)

$341.99

$

Usually ships in 2-12 days

0

20

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$11.99

$

In Stock, only 1 left!

0

21

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

Note: (S/N: 2013212178 & Below)

$4.49

$

In Stock, only 4 left!

0

23

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$4.49

$

In Stock, Qty 8

0

25

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

26

Simplicity 5049848SM

ROD, DECK LIFT

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 5045856SM

PIVOT, SPRING ROD

$32.99

$

Usually ships in 2-12 days

0

28

Simplicity 5402521A

WELD, DECK HANGER-REAR-RH-BLK
(Superseded to 5402521AYP)

$61.99

$

Usually ships in 2-12 days

0

29

Simplicity 5402522A

WELD, DECK HANGER-REAR-LH-BLK
(Superseded to 5402522AYP)

$65.99

$

Usually ships in 2-12 days

0

30

Simplicity 5402533A

WELD, REAR LIFT, LH, IS500-BLK
(Superseded to 5402533AYP)

$118.99

$

Usually ships in 2-12 days

0

31

Simplicity 5402534A

WELD, REAR LIFT, RH, IS500-BLK
(Superseded to 5402534AYP)

$118.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023356SM

BUSHING, 1.00X1.13X.75, PLA

$6.49

$

In Stock, Qty 5

0

33

Simplicity 5025443SM

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 5061523CSM

WELD, DECK ADJUST LINK

$58.99

$

Usually ships in 2-12 days

0

36

Simplicity 5022434SM

BALL JOINT, 1/2-20, MALE

$44.99

$

In Stock, only 4 left!

0

37

Simplicity 5047103SM

ADAPTER, CASTER AXLE

$11.99

$

In Stock, Qty 20+

0

38

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3 GD5

$5.99

$

In Stock, Qty 6

0

39

Simplicity 5025158SM

WASHER, 1/2 SAE

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

41

Simplicity 5023355SM

SPRING, DECK LIFT ASSIST

$52.99

$

Usually ships in 2-12 days

0

42

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4" GD5 YZ

$5.99

$

In Stock, only 2 left!

0

43

Simplicity 5025301SM

NUT, 1/2-13 HEX JAM

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$6.49

$

In Stock, only 3 left!

0

45

Simplicity 5025034SM

NUT, 3/8-16 HEX
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

46

Simplicity 5049867CSM

WELD, DECK STABILIZER

$101.99

$

Usually ships in 2-12 days

0

47

Simplicity 5049868SM

SHAFT, DECK STABILIZER

$39.99

$

Usually ships in 2-12 days

0

48

Simplicity 5010114SM

COLLAR, 3/4" SPLIT

$20.99

$

Usually ships in 2-12 days

0

49

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4 GD5 YZ

$

$

Not available

50

Simplicity 5025158SM

WASHER, 1/2" SAE

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 2 left!

0

52

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, Qty 20+

0

53

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$6.49

$

In Stock, Qty 11

0

54

Simplicity 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.99

$

In Stock, only 4 left!

0

55

Simplicity 5025328X16SM

PIN, CLEVIS, 1/2 X 2 YZP

$9.49

$

Usually ships in 2-12 days

0

56

Simplicity 5025203X10SM

PIN, COTTER, 1/8" X 1-1/4

$3.99

$

In Stock, only 1 left!

0

57

Simplicity 5101028SM

CAP, VINYL - .562 X .750 - BLK

$2.99

$

Usually ships in 2-12 days

0

58

Simplicity 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

Note: (S/N: 2013212179 & Above)

$4.99

$

Usually ships in 2-12 days

0

59

Simplicity 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

Note: (S/N: 2013212179 & Above)

$7.99

$

In Stock, only 3 left!

0

60

Simplicity 5404299C

WELD, DECK LIFT SHAFT - IS500Z - ORG
(Superseded to 5404299CYP)

Note: (S/N: 2013212179 & Above)

$252.99

$

Usually ships in 2-12 days

0

61

Simplicity 5025013X22

BOLT, 3/8-16 X 2-3/4 GD5 YZ
(Superseded to 5025013X22SM)

Note: (S/N: 2013212179 & Above)

$4.49

$

In Stock, Qty 20+

0

62

Simplicity 5050857X1SM

HOSE, 1/2" PUSH-ON, 1.00"
(Superseded to 5050857X1YP)

$3.49

$

Usually ships in 2-12 days

0
