ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Pump Drive Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

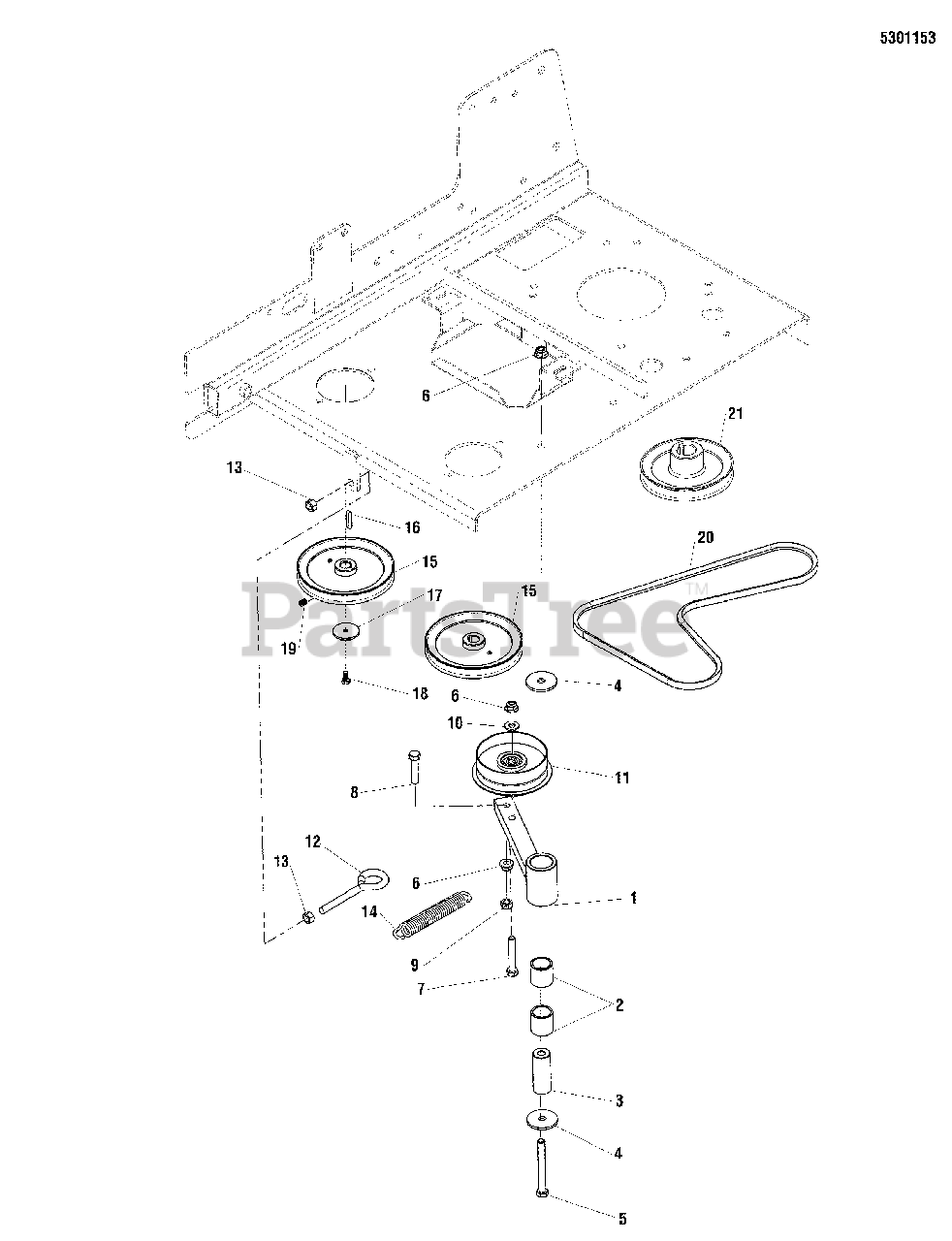

Pump Drive Group Parts Diagram

  • Title

1

See "PUMP DRIVE [Cast Idler Arm for replacing Steel Pump Drive Idler Arm]"

$

$

Not available

2

Simplicity 5022157SM

BUSHING, BRASS, 1.25X1X1.25

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 5045135SM

SPACER, .39 X 1.00 X 2.55
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2 GD5 YZ

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, Qty 5

0

9

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 7

0

11

Simplicity 5101380SM

PULLEY, FLAT IDLER, 4.06 X .75 W
(Superseded to 5101380YP)

$51.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025321SM

SCREW HOOK, 3/8-16 X 4-1/4

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025034SM

NUT, 3/8-16 HEX

$2.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022847SM

SPRING, EXTENSION, SWIVEL END

$34.99

$

Usually ships in 2-12 days

0

15

Simplicity 5100912SM

PULLEY, PUMP DRIVE

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 5023254SM

KEY, 5MM SQ. W/ RADIUS

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 5044577SM

WASHER, .265 X 1.50 X .109, YZ

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023215SM

CAPSCREW,HEX HEAD M6-1.0X 14MM

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025531SM

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5100923

BELT, #7-9502
(Superseded to 5100923SM)

$64.99

$

Usually ships in 2-12 days

0

21

Simplicity 5100914SM

PULLEY, CRANKSHAFT

$54.99

$

Usually ships in 2-12 days

0
