ZT-42 (17AFCACS897) - Columbia 42" Zero-Turn Mower (2013) Front Axle Parts Diagram

42" Zero-Turn Mower

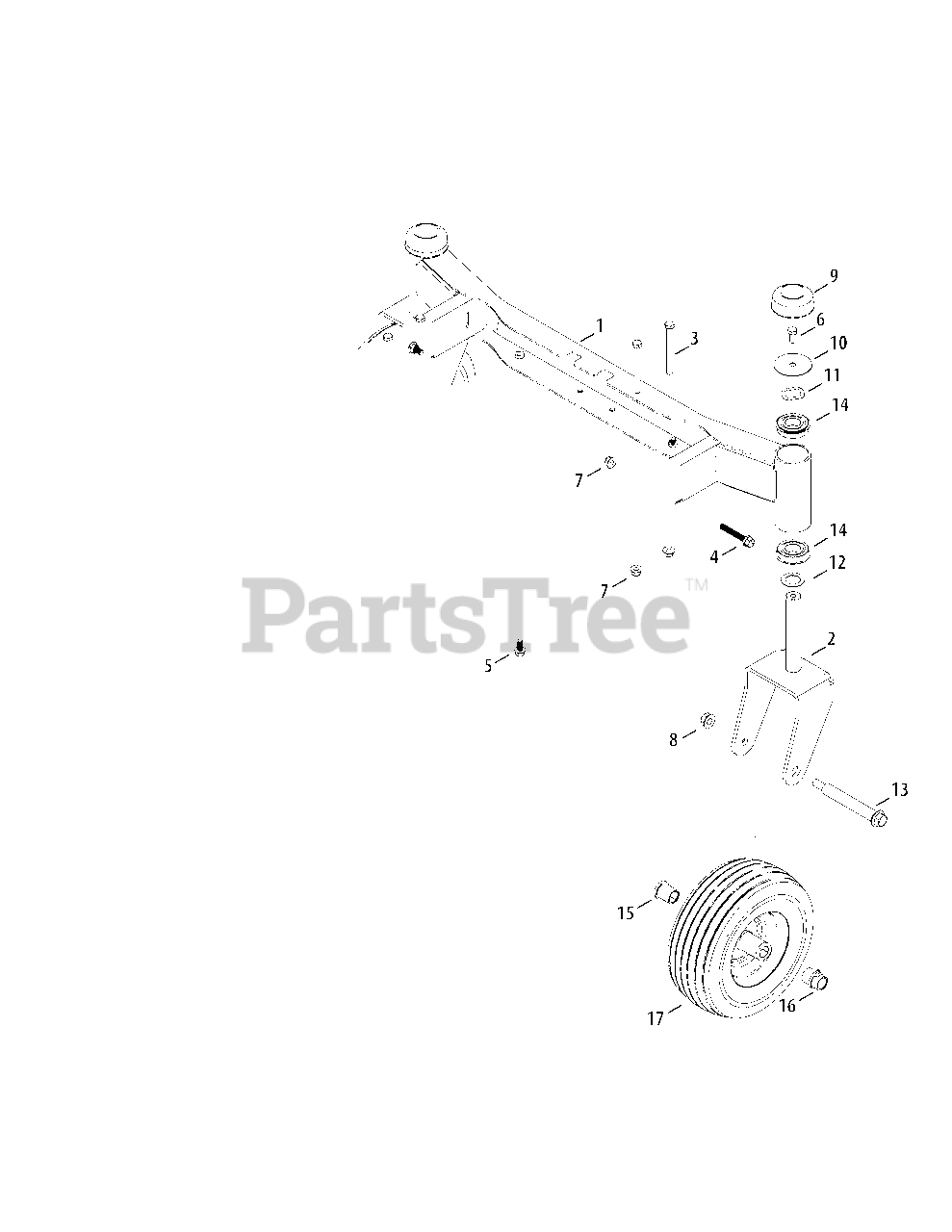

Front Axle Parts Diagram

  • Title

1

MTD 603-05053-0637

Front Axle

$211.99

$

Usually ships in 3-6 days

0

2

MTD 603-05057A-0637

Caster Wheel Bracket
(Superseded to 603-05057D-0637)

$98.99

$

Usually ships in 3-6 days

0

3

MTD 710-04576

Hex Cap Screw 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-06093

Hex Flange Screw 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-0623

Screw TT 3/8-16 x .750

$3.99

$

In Stock, Qty 6

0

6

MTD 710-3119

Hex Cap Screw 3/8-16 x .750

$6.49

$

In Stock, Qty 7

0

7

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04150

Flange Lock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-09347

Cap

$5.99

$

In Stock, Qty 20+

0

10

MTD 736-05022

Flat Washer .406 x 2.50 x .060

$3.99

$

Usually ships in 3-6 days

0

11

MTD 736-05033

Wave Washer 1.25 x 1.00 x .300
(Superseded to 736-05033A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0745

Flat Washer 1.010 x 1.56 x .060

$11.99

$

In Stock, Qty 6

0

13

MTD 738-04182B

Shoulder Screw 1/2-13

$24.99

$

In Stock, Qty 20+

0

14

MTD 941-05022

Ball Bearing
(Superseded to 941-05022A)

$18.99

$

In Stock, Qty 18

0

15

MTD 741-0516B

Flange Bearing .76 x 1.0 x 1.2

$5.99

$

In Stock, Qty 20+

0

16

MTD 741-0990B

Flange Bearing .76 ID w/Lube Ftg.

$9.99

$

In Stock, Qty 20+

0

17

MTD 634-04237B

Wheel Assembly 11.0 x 4.0 x 5.0
(Superseded to 634-04237C)

$151.99

$

In Stock, Qty 10

0
