ZT-42 (17AFCACS897) - Columbia 42" Zero-Turn Mower (2013) Operators Platform Parts Diagram

42" Zero-Turn Mower

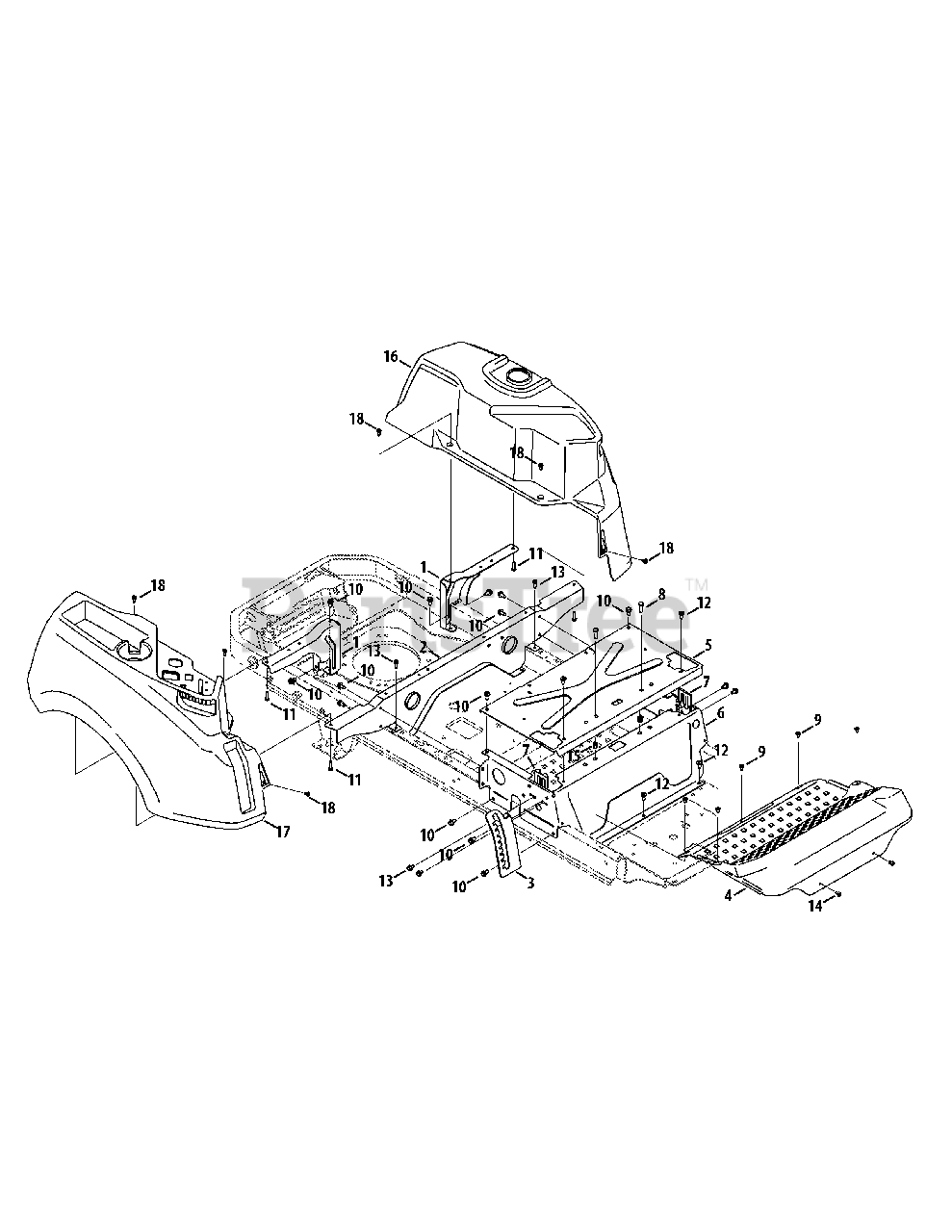

Operators Platform Parts Diagram

  • Title

1

MTD 703-08720A-0606

Rear Tank Bracket
(Superseded to 703-08720C-0606)

$28.99

$

Usually ships in 3-6 days

0

2

MTD 703-08722A-0606

Rear Seatbox Brace

$39.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762B

Height Index Bracket
(Superseded to 703-08762C)

$17.99

$

In Stock, only 1 left!

0

4

MTD 703-08902A-0606

Floor Board

$154.99

$

Usually ships in 3-6 days

0

5

MTD 703-09045-0606

Seatbox Plate
(Superseded to 703-09045J-0606)

$41.99

$

Usually ships in 3-6 days

0

6

MTD 703-09175-0606

Seat Frame

$71.99

$

Usually ships in 3-6 days

0

7

MTD 703-09211-0637

Lapbar Brace Bracket
(Superseded to 703-09211A-0637)

$8.49

$

Usually ships in 3-6 days

0

8

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-04483

Self Tapping Screw 1/4-20 x .50

$7.49

$

Usually ships in 3-6 days

0

10

MTD 710-04484

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-05109

Hex Washer Screw 5/16-14 x 1.00

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-05424

Self Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, only 2 left!

0

13

MTD 710-0607

Hex Washer Screw 5/16-18 x .50

$6.99

$

In Stock, Qty 20+

0

14

MTD 710-1611B

Self-Tapping Screw 5/16-18, 0.750

$7.49

$

Usually ships in 3-6 days

0

15

MTD 728-05012

Nut 5/16-18

$5.99

$

Usually ships in 3-6 days

0

16

MTD 931-08687A

LH Console
(Superseded to 931-08687B)

$123.99

$

In Stock, only 1 left!

0

17

MTD 931-08771A

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, only 1 left!

0

18

MTD 738-04549A

Shoulder Screw 1/4-20

$7.99

$

In Stock, Qty 12

0
